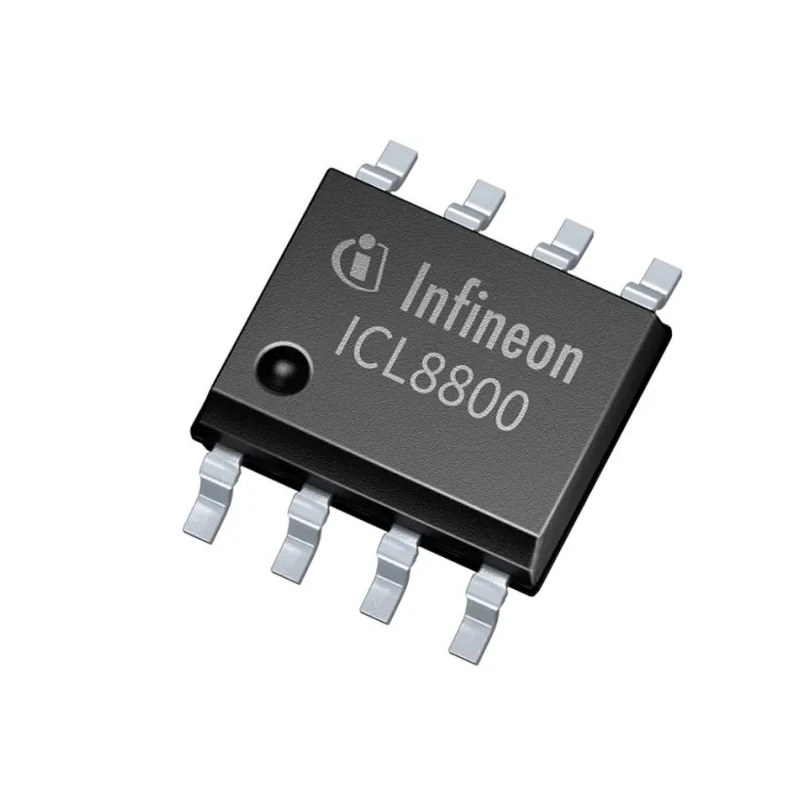

Infineon LED Driver IC 24V Input, 8 V Output, 2 mA Current, 125W Power, 8-Pin PG-DSO-8 Package ICL8800XUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon LED Driver IC 24V Input, 8 V Output, 2 mA Current, 125W Power, 8-Pin PG-DSO-8 Package ICL8800XUMA1

Name: Infineon LED Driver IC 24V Input, 8 V Output, 2 mA Current, 125W Power, 8-Pin PG-DSO-8 Package ICL8800XUMA1
Brand: Infineon
SKU: 171272
Price: 0.54 USD
Availability: InStock



Category LED Driver IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.75mm
Length	5mm
Model	ICL8800XUMA1
Width	4mm
Mount Type	Through Hole
Series	ICL8800XU
Output Current	2mA
Maximum Operating Temperature	150°C
Package Type	PG-DSO-8
Minimum Operating Temperature	-40°C
Maximum Output Power	125W
Input Voltage	24, 8V
Standards/Approvals	RoHS
Number of Pins	8
Dimming Operation	PWM

Key Features

Operates with an input voltage of 24V and 8V outputs providing a current of 2mA.
Utilizes PWM dimming operation for precise light control.
Features an 8-pin PG-DSO-8 package with through-hole mounting.
Temperature operating range spans from -40°C to 150°C for diverse environments.
Strictly RoHS compliant ensuring environmental safety.
Designed for flyback topologies with quasiresonant mode operation.
Supports power factor correction in dual-stage topologies.
Incorporates comprehensive set of protections including power limitation.

Product Description

Infineon ICL8800XUMA1 LED Driver IC is a voltage mode controller tailored for flyback topologies operating in quasiresonant mode and valley switching DCM. Suitable for low to high power LED driver applications, it ensures high power factor and energy efficiency with maximum output power of 125W. The device handles an input voltage of 24V and outputs 8V with 2mA current, suitable for optimized LED lighting solutions.

The IC supports pulse-width modulation (PWM) dimming to allow precise and flexible brightness control. Its 8-pin PG-DSO-8 package is designed for through-hole mounting, with compact physical dimensions of 5mm length, 4mm width, and 1.75mm height. Operating reliably in harsh environments with an operating temperature range from -40°C to 150°C, the ICL8800XUMA1 is RoHS compliant and adheres to environmental standards.

Typical applications include LED lighting systems requiring efficient power conversion and protection features. The controller supports single-stage and dual-stage power factor correction (PFC), with built-in protections including power limitation to ensure safe operation. Soft-start circuitry minimizes stress during power-up, and reduced gate driver voltages allow smaller capacitors and enhanced light load efficiency. Burst mode operation reduces standby power consumption.

This LED driver IC is ideal for industrial, commercial, and residential LED lighting applications, offering a versatile solution with minimum external components required. Its robust design maximizes energy savings while maintaining performance.

Operates input voltage: 24V, output voltage: 8V, output current: 2mA. Maximum output power: 125W. PWM dimming operation for precise brightness control. Through-hole 8-pin PG-DSO-8 package. Operating temperature: -40°C to 150°C.

RoHS compliant with environmental safety standards. Supports flyback topology with quasiresonant mode and valley switching. Includes power limitation and soft-start protections. Compact form factor: 5mm x 4mm x 1.75mm. Explore a wide range of LED Driver ICs at EnvMart for reliable and efficient lighting control solutions.
