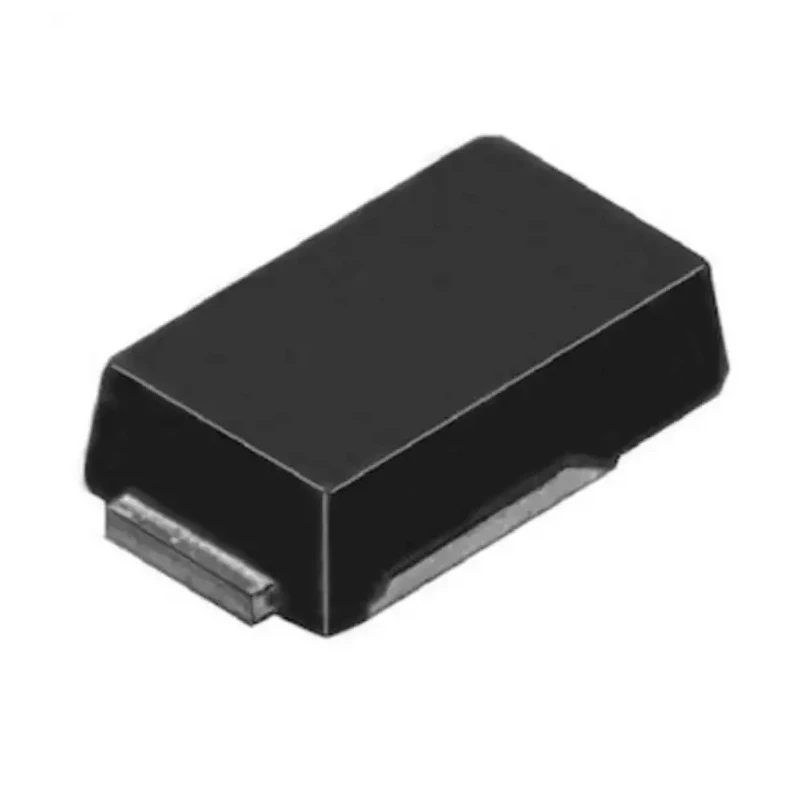

Vishay 100 V 1 A General Purpose Diode Surface Mount DO-220AA VS-1ENH01-M3/84A

Vishay VS-1ENH01-M3/84A is a high-performance general purpose diode designed for surface mount applications in DO-220AA packaging with a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 100 V. This diode exhibits low forward voltage drop of 0.92 V and low leakage current, which contributes to its efficient performance in power-sensitive electronic circuits.

The device operates reliably over a broad temperature range from -55°C to 175°C, making it suitable for industrial, automotive, and commercial electronic systems. The diode meets the automotive standard AEC-Q101, confirming its robustness for automotive electronics applications requiring stringent quality standards.

This diode's low peak reverse current of 20 μA and high peak non-repetitive forward surge current rating of 40 A make it effective in protecting circuits from voltage spikes and transient surges, commonly encountered in inverter circuits and power converters.

Its compact and low profile DO-220AA surface mount package enables automated placement and space-saving PCB designs. The Vishay diode series is widely used in power & connectors, semiconductor discrete components, particularly in Schottky diode & rectifiers segments.

Compact surface mount DO-220AA package ensures low profile installation. Maximum continuous forward current of 1 ampere suitable for a variety of electronic applications. Peak reverse repetitive voltage rating of 100 volts for reliable operation.

Low maximum forward voltage of 0.92 V minimizes power loss. Wide operating temperature range from -55°C to 175°C supports demanding environments. Low peak reverse current of 20 μA reduces leakage and enhances efficiency.

Compliant with RoHS for environmental safety. Certified to automotive standard AEC-Q101 ensuring automotive-grade quality. Ideal for use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection circuits.

Manufactured in China, guaranteeing consistent quality control.

This diode is suited for industrial electronics, automotive electronics, power converters, and general semiconductor applications requiring fast switching speeds and high reliability.
