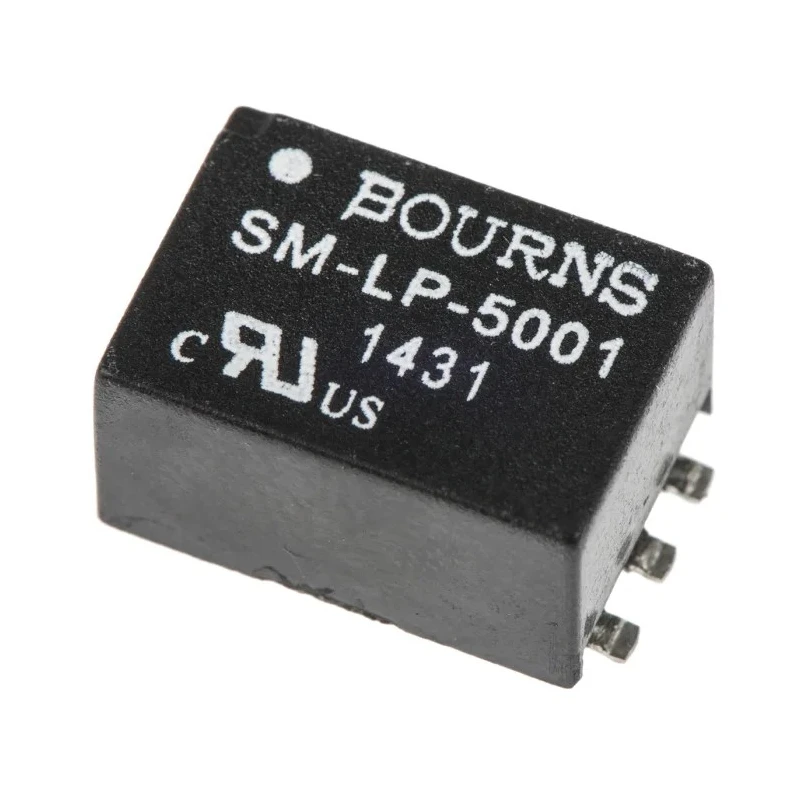

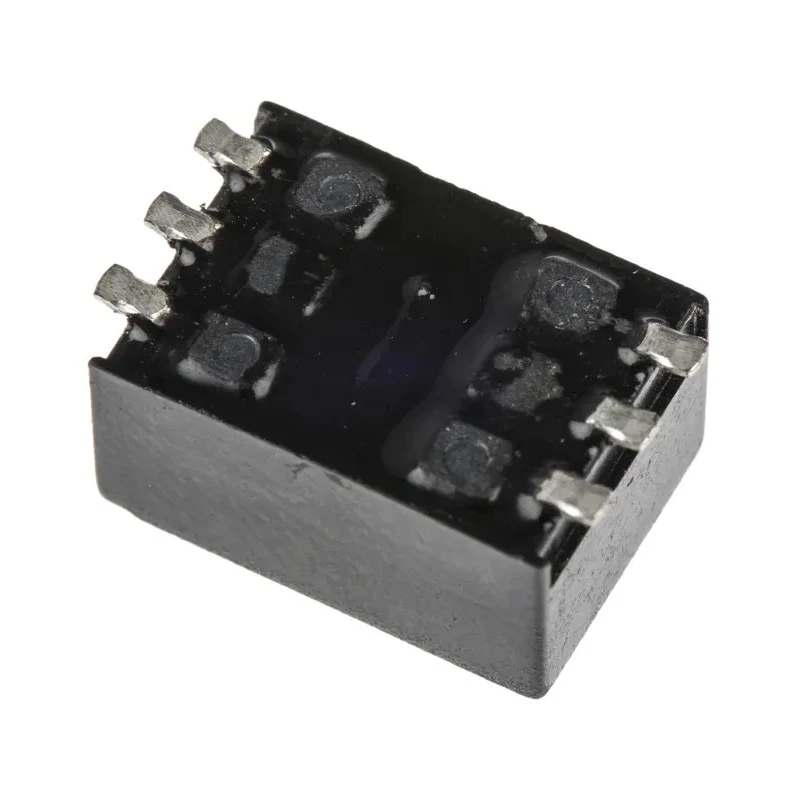

Bourns Surface Pulse Transformer 1:1 Turns Ratio, 3.8h Primary Inductance, 115Ω Primary Resistance SM-LP-5001
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Length | 9.6mm |
| Model | SM-LP-5001 |
| Depth | 14mm |
| Width | 7.36mm |
| Mount Type | Surface |
| Series | SM-LP-5001 |
| Termination Type | AgSn-Plated Terminal |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | UL60950 Certified, RoHS |
| Number of Pins | 6 |
| Insertion Loss | 2dB |
| Minimum Operating Frequency | 0.2kHz |
| Maximum Operating Frequency | 4kHz |
| Primary Inductance | 3.8h |
| Turns Ratio | 1:1 |
| Primary DC Resistance | 115Ω |
| Turns Ratio 1 | 1 |
| Leakage Inductance | 6mH |
| Bourns Surface Audio TransformerBrand | Bourns |
| OEP Surface Pulse Transformer 1 | 1 Turns Ratio, 3.6 h Prim. Inductance, 111Ω Prim. ResistanceBrand: OEP |
| Bourns Surface Pulse Transformer 1 | 1 Turns Ratio, 3.8 h Prim. Inductance, 115Ω Prim. Resistance |
Key Features
- Compact surface mount design suitable for modern electronic assemblies.
- Vacuum encapsulated with low distortion of only 0.015% for clear signal transmission.
- 600 Ω nominal impedance ensuring compatibility with various instrumentation and telecom devices.
- High dielectric strength of 2000 Vrms for one minute guarantees reliability under voltage stress.
- Wide operating temperature range from -20°C to 85°C enables use in diverse environments.
- AgSn-plated terminals provide corrosion resistance and reliable solderability.
- Ideal for instrumentation, telecommunications, laptops, and modems (V32) applications.
Product Description
Bourns SM-LP-5001 surface pulse transformer is a subminiature, vacuum encapsulated line matching transformer with a 1:1 turns ratio. It delivers a primary inductance of 3.8h and a primary resistance of 115Ω, designed for precision electronic signal applications.

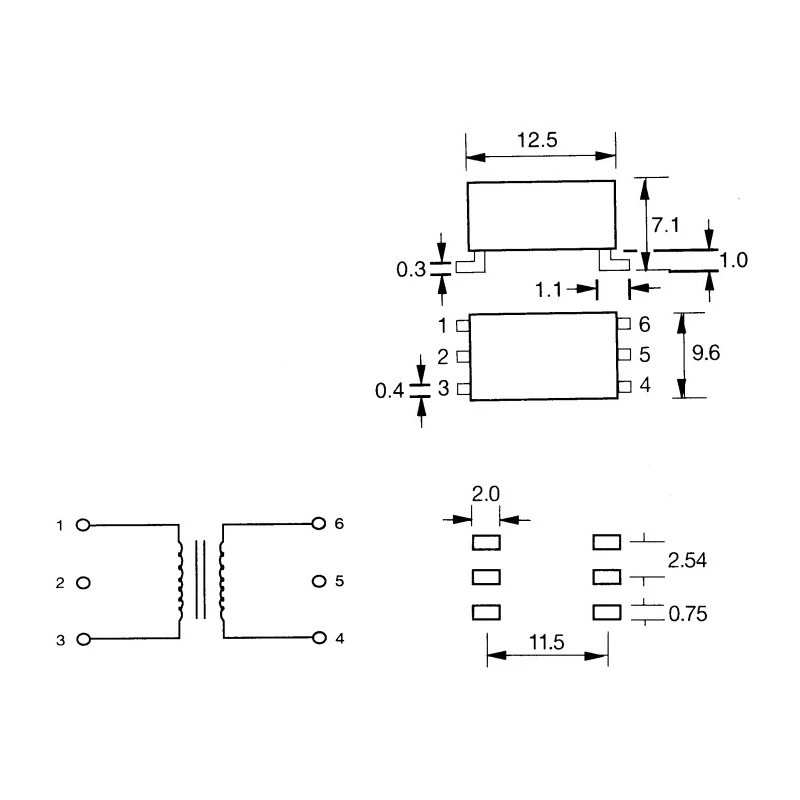

The compact surface mount design features a seated height of only 7.5 mm, facilitating integration into space-constrained PCB layouts. It has 6 pins and dimensions of 9.6 mm length, 7.36 mm width, and 14 mm depth. Termination is via AgSn-plated terminals ensuring excellent corrosion resistance and solderability.
This transformer exhibits a low distortion of 0.015% and a minimum insertion loss of 2 dB, ensuring high signal integrity. The nominal impedance is 600 Ω with a minimum balance of 80 dB and maximum distortion of -76 dB at 600 Hz. It sustains a high isolation voltage of 2000 Vrms for 1 minute, providing robust electrical isolation. Operating frequency ranges from 0.2 kHz to 4 kHz, supporting both low and medium frequency applications.
Operating temperatures range between -20°C and 85°C, making it suitable for a variety of industrial and commercial environments. Certified to UL60950 standards and RoHS compliant, it meets safety and environmental regulations.
Typical applications include instrumentation, telecommunications, laptops, modems, and other audio and signal processing equipment. Its precise electrical characteristics ensure reliable performance in demanding electronic circuits.
Compact surface mount package with low seated height. Vacuum encapsulation for enhanced durability and signal clarity. Low distortion and insertion loss maintaining signal integrity. High dielectric strength and isolation voltage for safety.
Wide temperature range supporting various industrial environments. Silver-tin plated terminals for durable solder connections. RoHS compliant and UL60950 certified ensuring quality and safety. Explore our extensive range of transformers and Pulse Transformers on EnvMart for your electronic and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of the SM-LP-5001 transformer is 3.8 henries (h).
This pulse transformer has a turns ratio of 1:1.
The dimensions of the SM-LP-5001 are 9.6 mm in length, 7.36 mm in width, and 14 mm in depth.
The maximum operating temperature for this model is 85°C.
The minimum operating frequency supported by this transformer is 0.2 kHz.
The insertion loss of the SM-LP-5001 is 2 dB.
This transformer uses AgSn-plated terminals for termination, ensuring corrosion resistance and reliable solderability.
The primary DC resistance of this transformer is 115 ohms (Ω).
The SM-LP-5001 is UL60950 certified and RoHS compliant, meeting safety and environmental regulations.
This model has a minimum balance specification of 80 dB.
The isolation voltage rating for the SM-LP-5001 is 2000 Vrms for one minute.
The SM-LP-5001 is suitable for applications in instrumentation, telecommunications, laptops, and modems.
