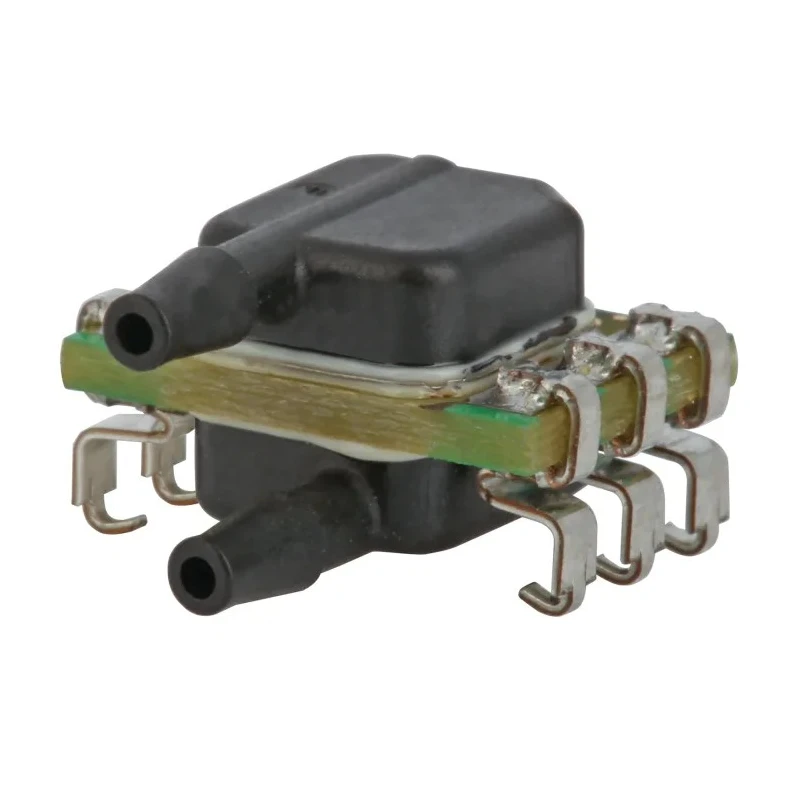

Honeywell Technologies Piezoresistive Differential Pressure Sensor Surface Mount SMT 6 Pin ABP2MRRT005PD2A3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 34 kPa |
| Height | 10.59mm |
| Length | 8.2mm |
| Model | ABP2MRRT005PD2A3XX |
| Sensor Type | Differential Pressure Sensor |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Dual Radial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 240psi |
Key Features
- The sensor supports a maximum overload pressure of 240 psi.
- It operates within a supply voltage range of 1.8 V to 3.6 V.
- The device measures differential pressure with ±0.25% accuracy.
- Designed for operating temperatures from -40°C to 110°C.
- Compact dimensions of 10.59 mm height, 8.2 mm length, and 7.2 mm width enable flexible mounting options.
- Port type features dual radial barbed for efficient fluid connection.
- The sensor meets RoHS environmental compliance standards.
- It operates reliably within a maximum pressure of 34 kPa and minimum pressure of 600 Pa.
Product Description
Honeywell Technologies ABP2MRRT005PD2A3XX is a precision piezoresistive differential pressure sensor featuring a surface mount SMT package with 6 pins. Operating with excellent accuracy of ±0.25%, it supports a supply voltage range from 1.8 V to 3.6 V and endures a maximum overload pressure of 240 psi.
Its compact size - 10.59 mm in height, 8.2 mm in length, and 7.2 mm in width - allows easy integration into compact system designs. The device is suitable for demanding environments with operating temperatures from -40°C up to 110°C. Equipped with dual radial barbed ports, it provides effective fluid connections for differential pressure sensing.
This sensor series (ABP2) complies with RoHS standards, ensuring environmentally friendly utilization. Typical applications include medical ventilators and portable ventilators, CPAP devices, blood analysis and pressure monitoring, HVAC pressure transmitters, life sciences instrumentation, material handling, pneumatic control and regulation, gas process monitoring, and valve positioning systems.
The sensor offers a maximum operating pressure rating of 34 kPa and minimum pressure detection down to 600 Pa, providing stable and accurate performance over extended periods with long-term stability as low as ±0.2% FSS. Made in China, it supports industrial, medical, laboratory, and HVAC use cases requiring high precision differential pressure measurements.
The sensor supports a maximum overload pressure of 240 psi. It operates within a supply voltage range of 1.8 V to 3.6 V. The device measures differential pressure with ±0.25% accuracy. Designed for operating temperatures from -40°C to 110°C.
Compact dimensions of 10.59 mm height, 8.2 mm length, and 7.2 mm width enable flexible mounting options. Port type features dual radial barbed for efficient fluid connection. The sensor meets RoHS environmental compliance standards.
It operates reliably within a maximum pressure of 34 kPa and minimum pressure of 600 Pa. Ideal for use in ventilators, blood pressure monitoring, HVAC transmitters, and pneumatic control systems. Manufactured in China with product series designation ABP2.
Explore more industrial and electronic components within the Pressure Sensor ICs category at EnvMart for all your sensor application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor measures differential pressure with an accuracy of ±0.25%.
It has a maximum operating pressure of 34 kPa.
The sensor operates within a supply voltage range of 1.8 V to 3.6 V.
The sensor has compact dimensions of 10.59 mm in height, 8.2 mm in length, and 7.2 mm in width.
It operates reliably with a minimum pressure detection down to 600 Pa.
The maximum overload pressure supported by this model is 240 psi.
This model features a surface mount design.
The sensor is designed for operating temperatures from -40°C to 110°C.
It features dual radial barbed ports for efficient fluid connections.
Yes, it meets RoHS environmental compliance standards.
Typical applications include medical ventilators, HVAC pressure transmitters, and gas process monitoring.
The sensor has a total of 6 pins.
