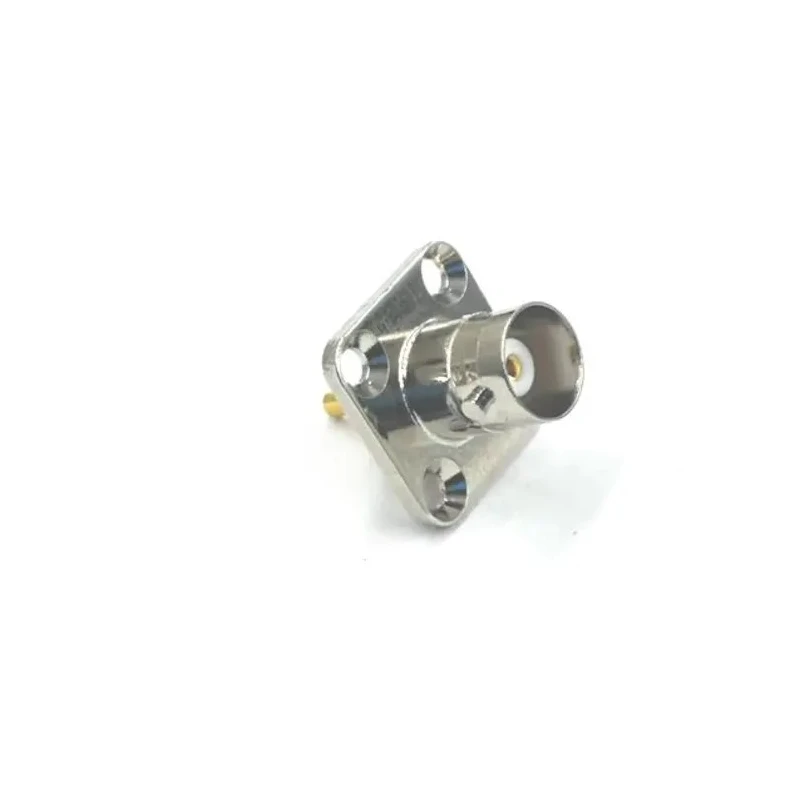

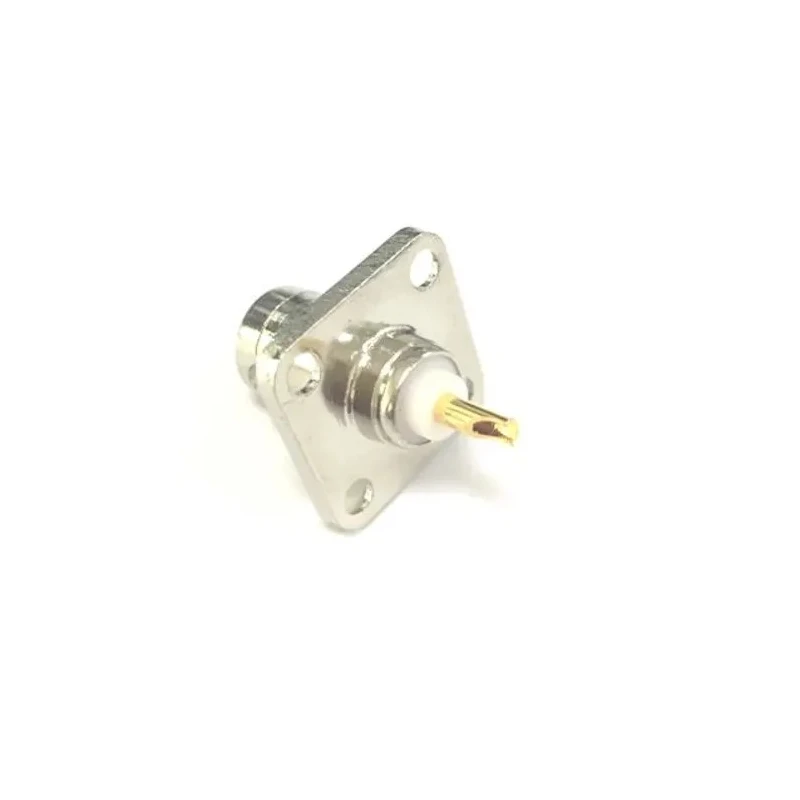

RS PRO Coaxial Connector Flange Female BNC 50 Ω Straight Body Welding 218-4242
Specifications
| Country of Origin | China |
|---|---|
| Frequency range | 4 GHz |
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Temperature range | -65°∼+165° C |
| Model | 218-4242 |
| Mount Type | Flange |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Welding |
| Maximum Operating Temperature | 165°C |
| Insulation resistance | ≥1000 MΩ |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Working Voltage | 500 V |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| VSWR | ≤1.5 |
| Medium Pressure | 1000 V(rms) |
| Working Life | 500 Cycles |
| RND RND Series Coaxial Connector Cable BNC, Straight Body SolderBrand | RND |
Key Features
- This connector features a robust nickel-plated flange body for durability and corrosion resistance.
- It operates over a temperature range of -65°C to +165°C ensuring excellent performance in harsh environments.
- The connector has a characteristic impedance of 50 Ω and supports frequencies up to 4 GHz.
- Termination is via soldering to the pin end, providing a secure and stable connection.
- The contact material is brass with gold plating for superior electrical conductivity and longevity.
- This flange type connector is panel mountable using the 4 fixing holes provided on the flange.
- RS PRO series connectors offer a bayonet locking system for quick and safe connections.
- Designed for use in RF, broadcast, medical, test equipment, and telecommunications applications.
Product Description
RS PRO 218-4242 Coaxial Connector Flange Female BNC 50 Ω Straight Body Welding is a high-quality RF coaxial connector from the RS PRO series designed for reliable signal transmission. The nickel-plated flange provides durability against mechanical wear and corrosion, suitable for industrial and commercial environments.
The connector operates efficiently within a temperature range from -65°C to +165°C, making it suitable for harsh operating conditions. Its characteristic impedance of 50 Ω and frequency range up to 4 GHz makes it ideal for RF signal applications including radio, television broadcast, medical equipment, test devices, satellite communication, and telecom hardware.
This flange female BNC connector uses a straight body design with a bayonet coupling mechanism for easy and secure mating. It features brass contacts plated with gold to ensure excellent electrical conductivity and long service life. The termination is designed for welding, requiring soldering to an appropriate coaxial cable.
The flange includes 4 mounting holes allowing for robust panel mounting and bulkhead integration. It supports working voltages up to 500 V and has a high insulation resistance of ≥1000 MΩ, offering reliable electrical performance with low signal loss (VSWR ≤ 1.5).
Applications for this reliable coaxial connector include antenna connections, cable modem interfaces, CCTV systems, Satcom equipment, medical and test instrumentation, and various telecom applications requiring secure, low-loss RF connections.
Nickel-plated robust flange body ensures mechanical strength and corrosion resistance. Gold-plated brass contacts provide enhanced conductivity and life span. Operating frequency up to 4 GHz for high fidelity signal transmission.
Temperature range of -65°C to +165°C supports industrial temperature extremes. Solder pin termination enables secure cable connections. Panel mountable flange with 4 fixing holes for stable installation. Bayonet coupling system for fast and secure connector mating.
Discover a wide range of Coaxial Connectors at EnvMart, suitable for electronic, telecommunications, broadcasting, and test equipment projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports frequencies up to 4 GHz, making it suitable for high fidelity RF signal applications.
The characteristic impedance of this connector is 50 Ω, which is standard for many RF applications.
It operates efficiently within a temperature range of -65°C to +165°C, allowing for use in harsh environments.
Termination is via soldering to the pin end, ensuring a secure and stable connection.
The contact material is brass, which is plated with gold to enhance electrical conductivity and longevity.
This model is panel mountable and includes 4 fixing holes on the flange for stable installation.
It features a bayonet coupling system, allowing for quick and secure connections.
It has a high insulation resistance of ≥1000 MΩ, which contributes to reliable electrical performance.
The maximum working voltage is 500 V, suitable for various applications.
It is designed for use in RF, broadcast, medical, test equipment, and telecommunications applications.
The Voltage Standing Wave Ratio (VSWR) is ≤1.5, indicating low signal loss for RF connections.
This connector is designed for use with coaxial cables, ensuring optimal signal transmission.
