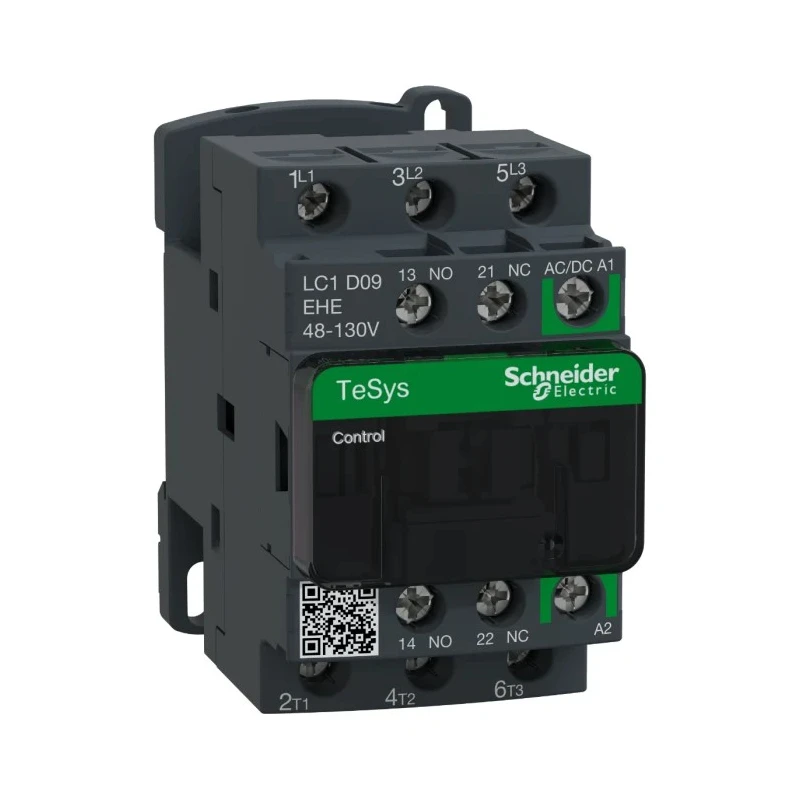

Schneider Electric TeSyS D Contactor, 110V AC/DC Coil, 3-Pole, 9 A, 4 kW, 130V Control Voltage, 3 NO Contacts LC1D09EHE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D09EHE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | RoHS, UL, CCC, CSA, EAC, IEC |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac/dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 130V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 3-pole design supporting a contact current of 9 amperes.
- Power rating of 4 kilowatts ensures robust operation for various industrial needs.
- Includes 3 normally open (NO) main contacts and 2 auxiliary contacts configured as 1 NO and 1 NC.
- Designed for DIN Rail mounting with screw-type terminals that are IP20 finger-safe.
- Operates within a temperature range of -25°C to 60°C, suitable for diverse environments.
- Control circuit voltage for auxiliary functionality is 130 volts.
- Complies with international standards including RoHS, UL, CCC, CSA, EAC, and IEC.
- Better World certified product designed for disassembly promoting sustainability.
Product Description
Schneider Electric LC1D09EHE TeSyS D Contactor incorporates a highly reliable 3-pole contact system sized for 9 ampere currents and a power rating of 4 kW at 690V AC. Designed with a 110V AC/DC coil voltage, it is suitable for both motor control and resistive load applications in industrial, manufacturing, and automation contexts.
The device features 3 normally open main contacts and 2 auxiliary contacts (1 NO/1 NC configuration) to enhance switching capabilities. It supports flexible installation options with DIN Rail mounting and screw terminals that provide IP20 finger-safe protection, equipped with international and North American terminal markings.
Operating reliably between -25°C to 60°C, this contactor is built to endure varying environmental conditions. The 130V control circuit voltage ensures optimal control performance and enables integration into complex control systems. Its compact form factor with dimensions 45mm (L) x 86mm (W) x 77mm (D) makes it suitable for panel mounting in space-constrained industrial setups.
The TeSyS D series emphasizes sustainability, featuring Better World certification and a design for disassembly, contributing to environmental responsibility without compromising performance or durability. This contactor complies with multiple international standards including RoHS, UL, CCC, CSA, EAC, and IEC, ensuring global application compatibility and safety.
3-pole contactor suitable for motor control and resistive loads. 9 A contact current with 4 kW power rating at 690V AC. 110V AC/DC coil voltage with 130V control circuit. 3 normally open main contacts plus 1 NO and 1 NC auxiliary contacts.
DIN Rail mountable with IP20 finger-safe screw terminals. Operating temperature from -25°C to 60°C. Compact dimensions suitable for panel mounting. Compliant with RoHS, UL, CCC, CSA, EAC, IEC standards. Better World certified for sustainability and designed for disassembly.
This contactor is ideal for industrial automation, manufacturing plants, HVAC systems, and other businesses requiring reliable motor starters and circuit control components. Schneider Electric's TeSyS D range offers long mechanical and electrical life, ensuring both performance and durability in demanding environments.
Explore more Contactors, auxiliary contacts, and motor control solutions within the Schneider Electric offerings through EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contactor has a power rating of 4 kilowatts at 690V AC, suitable for various industrial applications.
It supports a contact current of 9 amperes, making it suitable for motor control and resistive load applications.
This model operates with a coil voltage of 110V AC/DC, allowing for versatile control options.
The control circuit voltage for auxiliary functionality is 130 volts, ensuring optimal performance in control systems.
It features a 3-pole design, which is standard for many industrial motor control applications.
This contactor operates reliably within a temperature range of -25°C to 60°C, suitable for diverse environments.
It includes 3 normally open (NO) main contacts, allowing for efficient switching capabilities.
It is designed for DIN Rail mounting, providing flexible installation options in various setups.
The dimensions are 45mm in length, 86mm in width, and 77mm in depth, making it compact for panel mounting.
This model includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with multiple international standards including RoHS, UL, CCC, CSA, EAC, and IEC, ensuring safety and compatibility.
It is suitable for motor control and resistive load applications in industrial, manufacturing, and automation contexts.
