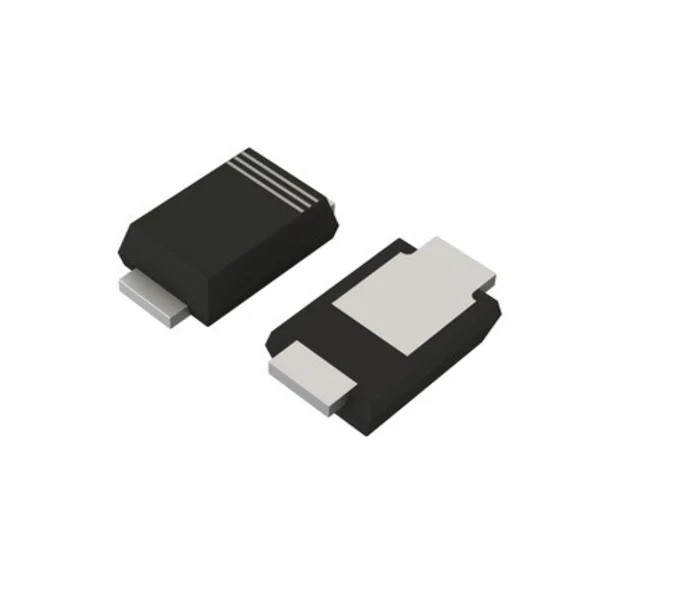

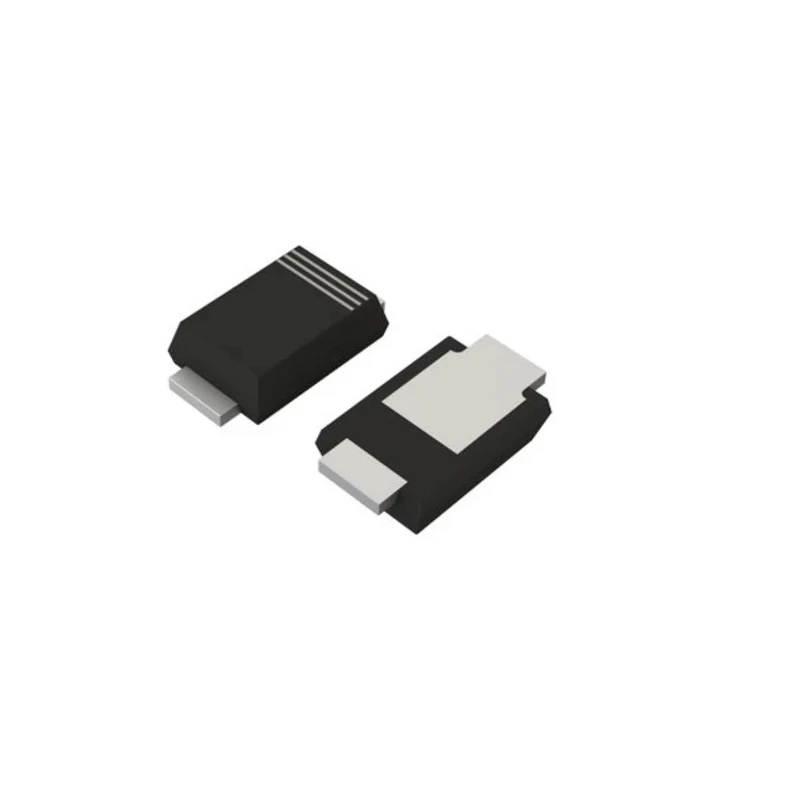

ROHM Surface Mount 30 V 500 mA Schottky Barrier Diode SOD-323HE RSX051VYM30FHTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.6mm |
| Length | 2mm |
| Model | RSX051VYM30FHTR |
| Width | 1.4mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323HE |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 500mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 0.35V |
Key Features
- This diode features a compact SOD-323HE package suitable for space-saving PCB designs.
- It offers a maximum forward voltage drop of 0.35 V ensuring energy efficiency.
- Designed for temperatures up to 150°C, providing reliable operation under harsh conditions.
- Single diode configuration with 2 pins simplifies integration into circuits.
- The diode complies with the automotive standard AEC-Q101 for enhanced durability.
- It is intended primarily for general rectification applications requiring low forward voltage drop.
- The device utilizes silicon diffused junction technology to ensure high reliability.
- Typical dimensions include a length of 2 mm, width of 1.4 mm, and height of 0.6 mm.
Product Description
ROHM RSX051VYM30FHTR is a Schottky barrier diode designed as a surface mount device in a compact SOD-323HE package. It supports a peak reverse repetitive voltage of 30 V and a maximum continuous forward current of 500 mA, making it suitable for low voltage power rectification and switching applications in industrial, automotive, and general-purpose electronic circuits.
This diode exhibits a maximum forward voltage of 0.35 V which minimizes power loss and heat generation, thereby improving circuit efficiency. The device is built using silicon diffused junction technology that provides high reliability and performance stability.
Operating temperature range up to 150°C allows this diode to function reliably in demanding environments including automotive systems, power supplies, and consumer electronics. Its compliance with the automotive standard AEC-Q101 certifies the product’s ruggedness and quality for vehicle applications.
The RSX051VYM30FHTR features a single diode configuration with 2 pins, simplifying circuit design and installation on printed circuit boards where space saving is crucial. Physical dimensions of 2 mm length, 1.4 mm width, and 0.6 mm height contribute to its compact footprint.
This diode is widely used for rectification in power adapters, voltage clamping, and protection circuits. The small mold type package ensures efficient heat dissipation and reliable soldering. Its low forward voltage and high-speed switching characteristics make it suitable for high-frequency applications.
Applications span across industrial control systems, telecommunications, and automotive electronics. The compact, robust package supports automated surface mount technology assembly processes. Explore additional ROHM semiconductor products and related electronic components within the Electronics & Electricals category on EnvMart for comprehensive sourcing solutions.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the ROHM RSX051VYM30FHTR Schottky diode is 0.35 V.
This model has a peak reverse repetitive voltage rating of 30 V.
The maximum continuous forward current for the RSX051VYM30FHTR is 500 mA.
The dimensions of the ROHM RSX051VYM30FHTR are 2 mm in length, 1.4 mm in width, and 0.6 mm in height.
It can operate at temperatures up to 150°C, making it suitable for demanding environments.
Yes, it complies with the automotive standard AEC-Q101, ensuring enhanced durability for vehicle applications.
The diode is packaged in a compact SOD-323HE surface mount package.
The RSX051VYM30FHTR features a single diode configuration with 2 pins.
It utilizes silicon diffused junction technology, which provides high reliability and performance stability.
This Schottky diode is suitable for general rectification applications, including power adapters and protection circuits.
The rectifier type of the RSX051VYM30FHTR is Schottky.
The low forward voltage of 0.35 V minimizes power loss and heat generation, improving circuit efficiency.
