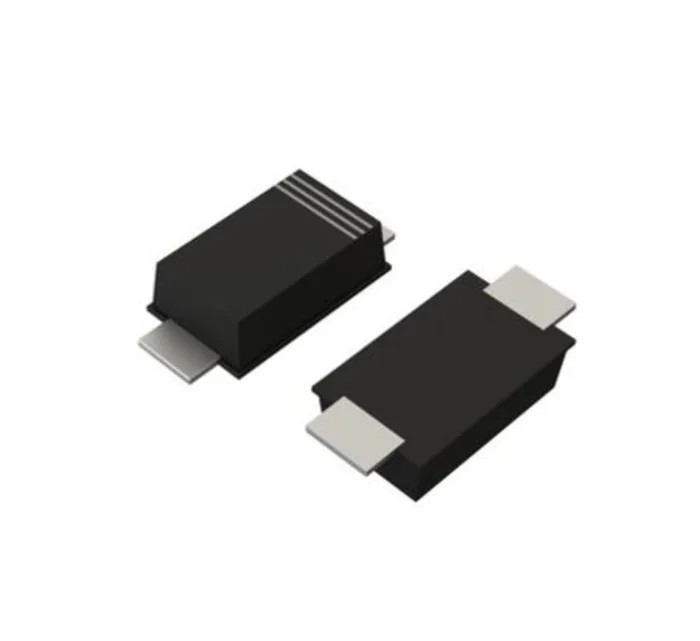

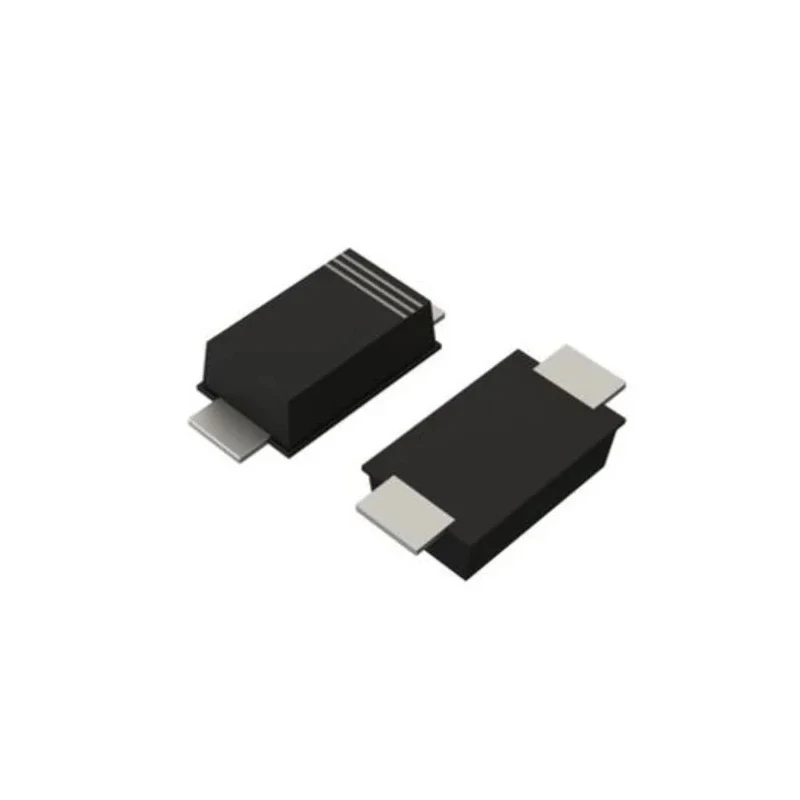

ROHM 60 V 1 A Surface Mount Schottky Diode 2-Pin SOD-123FL RB168MM-60TFTR
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.9mm |
| Length | 2.7mm |
| Model | RB168MM-60TFTR |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123FL |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.5μA |
| Maximum Forward Voltage Vf | 0.68V |
Key Features
- Surface mount type SOD-123FL package ensures compact design.
- Maximum forward current of 1 ampere for efficient current handling.
- Peak reverse repetitive voltage rated at 60 volts for reliable blocking capability.
- Schottky barrier diode configuration provides low forward voltage drop of 0.68 V.
- Operates in a wide temperature range from -55°C to 150°C.
- Features low peak reverse current of 1.5 microamperes for minimal leakage.
- Meets automotive standard AEC-Q101 for quality and reliability.
Product Description
ROHM RB168MM-60TFTR is a high-reliability Schottky barrier diode in a compact, surface mount SOD-123FL package. It features a silicon epitaxial planar type structure designed primarily for general rectification applications in electronic circuits. This diode supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 60 volts, making it suitable for power management and switching applications in consumer electronics, automotive, and industrial environments.
The diode exhibits a low forward voltage drop of 0.68 V, enabling efficient power conversion and reduced heat dissipation. Its peak reverse current of 1.5 microamperes ensures minimal leakage, improving overall circuit performance across a wide temperature range (-55°C to 150°C). The package dimensions of 2.7 mm length, 1.7 mm width, and 0.9 mm height facilitate compact PCB designs optimized for automated assembly processes.
Certified to automotive standard AEC-Q101, this ROHM diode is engineered for robustness and longevity in demanding applications including industrial controls, automotive electronics, power supplies, and consumer devices requiring Schottky diode rectification. Its surface mount design enables cost-effective, high-volume manufacturing and reliability in harsh conditions.
Surface mount SOD-123FL package enhances PCB layout flexibility. Silicon epitaxial planar construction promotes low forward voltage. Automotive quality ensures compliance with industry standards. Wide operational temperature range supports diverse environments.
Compact size suitable for space-constrained applications. Low leakage current improves energy efficiency. Ideal for power rectification in electronic and industrial uses.
Explore a wide selection of Schottky diodes and semiconductor components with ROHM products at EnvMart to meet your electronic system requirements with quality assurance and technical support.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the ROHM RB168MM-60TFTR Schottky diode is 1 ampere.
This model has a peak reverse repetitive voltage rating of 60 volts, providing reliable blocking capability.
The forward voltage drop for this Schottky diode is 0.68 volts, which helps in efficient power conversion.
The dimensions of the SOD-123FL package are 2.7 mm in length, 1.7 mm in width, and 0.9 mm in height.
It operates in a wide temperature range from -55°C to 150°C, suitable for diverse environments.
The peak reverse current is 1.5 microamperes, ensuring minimal leakage.
Yes, it meets the automotive standard AEC-Q101 for quality and reliability in automotive applications.
This diode features a single Schottky barrier configuration, designed for general rectification applications.
The mount type for this model is surface mount, which facilitates compact PCB designs.
It is suitable for power management and switching applications in consumer electronics, automotive, and industrial environments.
The country of origin for this diode is India.
