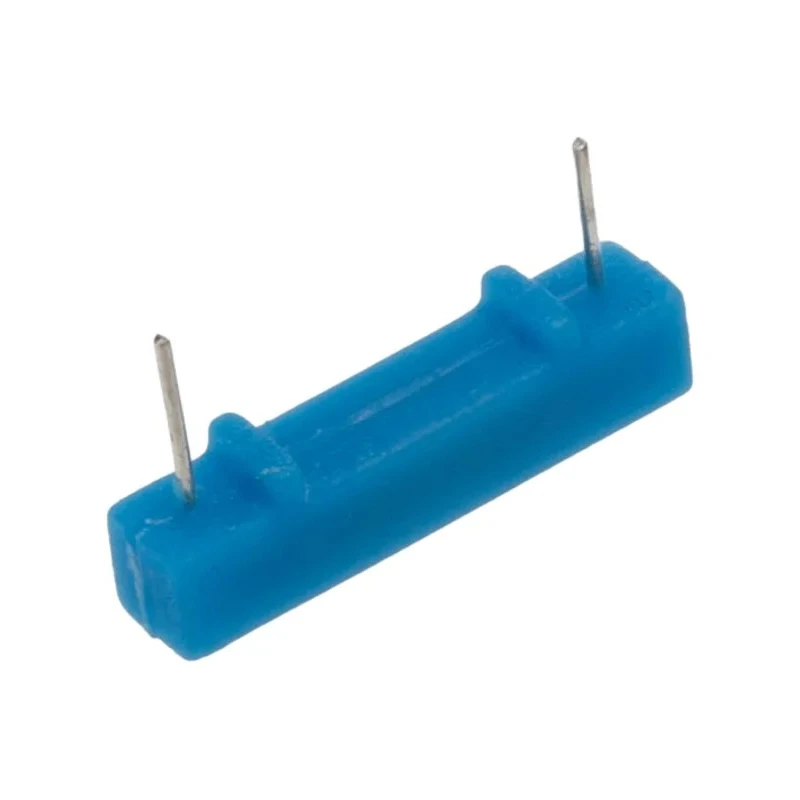

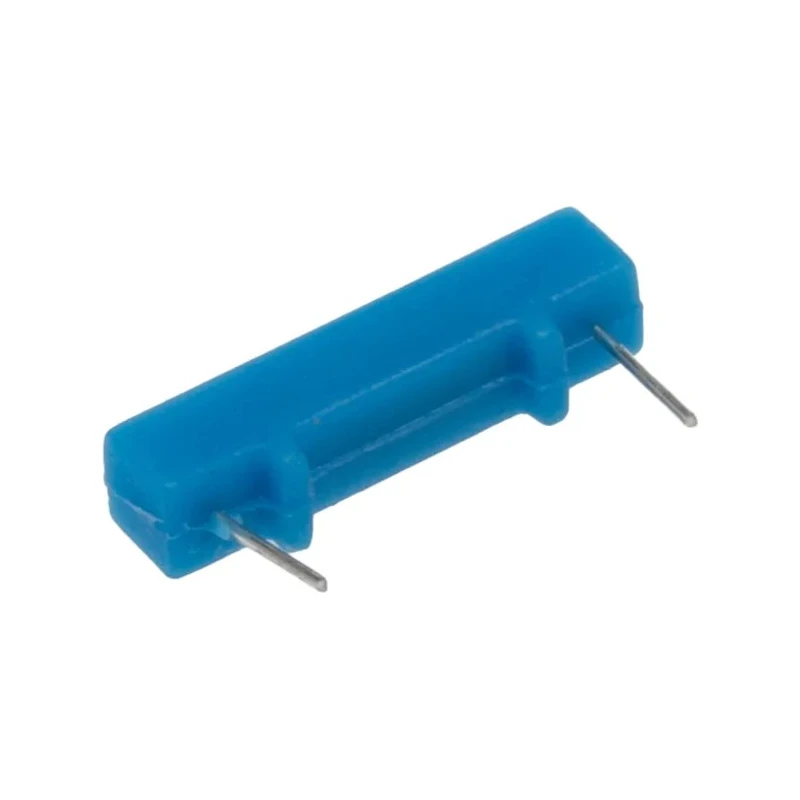

Assemtech Reed Switch Rectangular Housing Polypropylene 70V AC 0.25A PCB Terminal S1391

Assemtech S1391 Reed Switch is a high-quality, rectangular magnetic proximity switch designed for reliable operation in electrical and automation systems. Featuring a polypropylene housing and fully encapsulated construction, it ensures robust mechanical protection and environmental resistance. The switch is tailored for PCB mounting applications with its PCB terminal configuration and compact size of 14.8 mm length and 3.2 mm width and depth.

This model is rated for a switching current of 0.25 amperes and an AC voltage up to 70 volts, making it suitable for low-voltage control circuits. Its normally open (NO) contact arrangement allows it to activate upon the presence of a magnetic field, making it ideal for position sensing and limit switch applications in industrial automation.

The operational temperature range of -25°C to 70°C provides versatility for use in indoor and moderate outdoor conditions. Contact resistance of 150 milliohms at 70 volts AC ensures efficient signal transmission with minimal losses. Assemtech’s COMUS series compliance and RoHS certification reflect the product’s adherence to environmental regulations and quality standards.

This reed switch finds its applications across various industrial use cases, including automation control panels, HVAC systems, instrumentation, and safety limit switching. Its reliable magnetic sensing capability supports efficient machine operation and monitoring in manufacturing and process industries.

This product is of new condition and manufactured in the United Kingdom, ensuring high manufacturing standards. Package typically contains one fully encapsulated reed switch unit with PCB terminals ready for assembly. Explore more components in the Reed Switch category at EnvMart for comprehensive electrical switching and sensing solutions.
