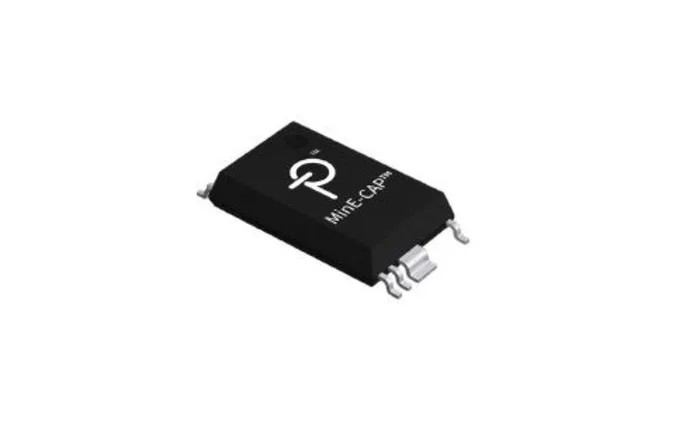

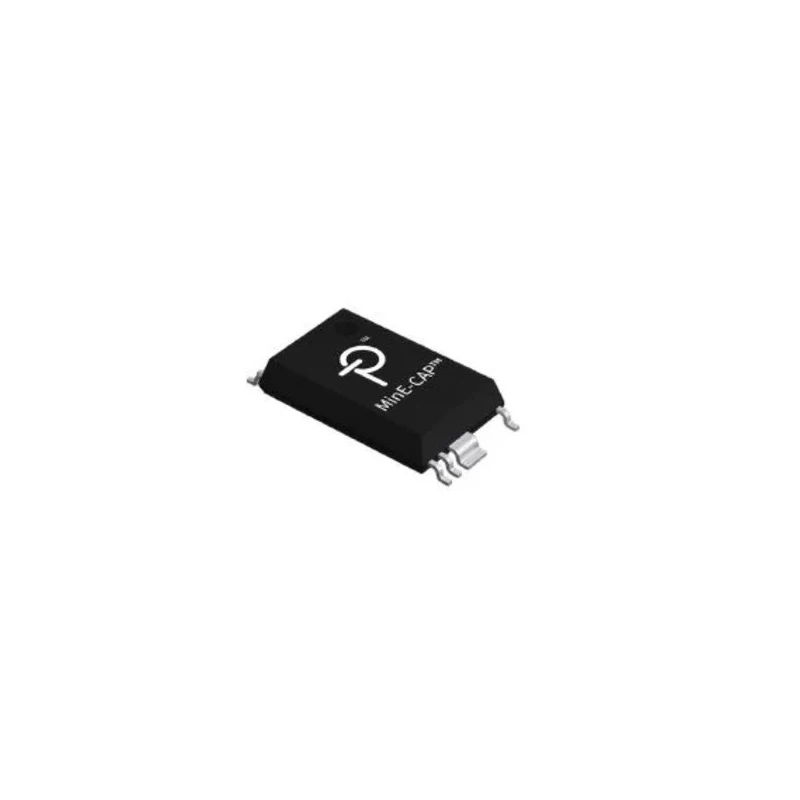

Power Integrations Capacitor Discharge IC MinE-CAP Series 650V, 2 mΩ Series Resistance, 12-Pin SOP Mount MIN1072M-TL

Power Integrations MIN1072M-TL is a high-performance capacitor discharge integrated circuit designed for bulk capacitor size reduction and inrush current management in power supply systems. It belongs to the MinE-CAP series, offering a 650V rating and a low 2 milliohm series resistance, with a compact 12-pin SOP surface mount package.

This IC achieves a significant reduction in input capacitor bulk size without compromising output ripple or efficiency, eliminating the need for transformer redesign. The device notably reduces i2t stress on input rectifiers and fuses, increasing overall power supply reliability and lifespan.

Built-in temperature sensing with hysteretic thermal shutdown protects the component and surrounding circuitry from thermal faults, while integrated surge protection improves robustness. The MIN1072M-TL also features fault reporting for pin short-circuits, undervoltage, and overvoltage conditions, enhancing system diagnostics.

Its operational temperature range spans from -40°C minimum to 105°C maximum, making it suitable for diverse industrial environments. The compact physical dimensions (11.32 mm length and 2.16 mm height) facilitate efficient PCB space utilization.

Bulk capacitor miniaturization without compromising power supply ripple or efficiency. Reduces i2t stress on input bridge rectifier and fuse. Integrated temperature sensing and thermal shutdown. Input surge protection and fault reporting capabilities.

Wide operating temperature range from -40°C to 105°C. Compact surface mount 12-pin SOP packaging. Minimizes EMI and transformer dissipation issues. Enables overall power supply size reduction and improved reliability. Applicable in industrial, commercial, and power management sectors.

This capacitor discharge IC is an excellent choice for engineers designing efficient, compact power supplies requiring reliable inrush current control. It is suitable for use in industrial, commercial electronics, power management systems, and other electrical applications.
