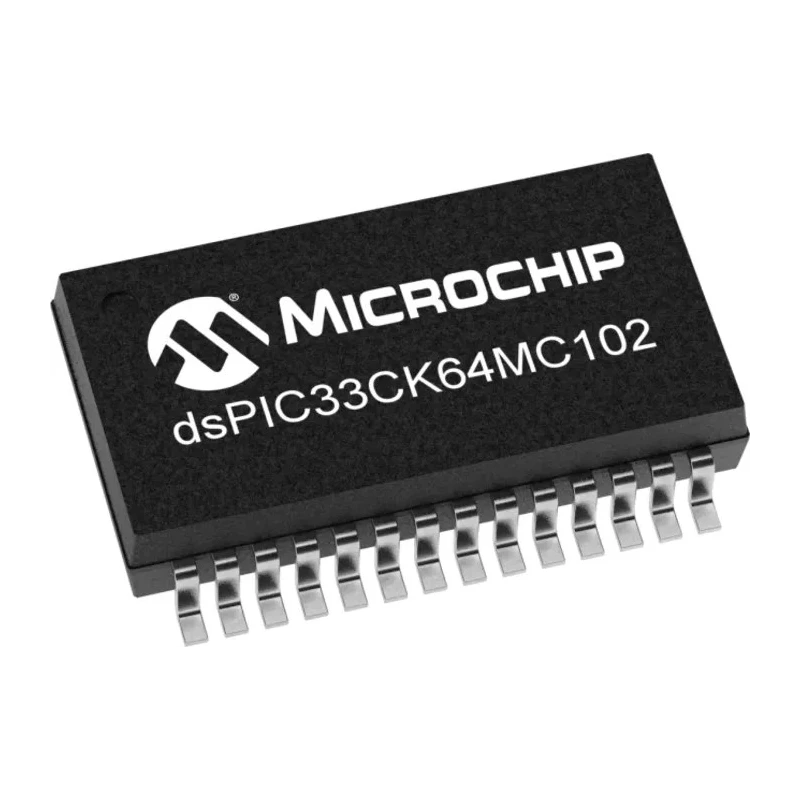

Microchip Digital Signal Processor , 16 bit, 100 MHz, 64kB FLASH, 8kB RAM, 28-Pin SSOP/UQFN DSPIC33CK64MC102-I/SS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2mm |
| Length | 10.5mm |
| Model | DSPIC33CK64MC102-I/SS |
| Width | 5.6mm |
| Series | dsPIC33CK64MC10X |
| Maximum Operating Temperature | 150°C |
| Package Type | SSOP/UQFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 8kB |
| ADC Resolution | 12bit |
| Pin Count | 28 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 100MHz |
| Instruction Set Architecture | RISC, DSP |
| Program Memory Type | FLASH |
| Device Million Instructions per Second | 100MIPS |
| ADC Channels | 11 |
| Number of PWM Channels | 4 |
Key Features
- Operates up to 100 million instructions per second (100 MIPS).
- Utilizes RISC and DSP instruction set architecture for efficient processing.
- Supports 4 PWM channels and 11 ADC channels with 12-bit resolution.
- Designed for robust automotive, motor control, and high-performance applications.
- Compatible with supply voltages from 3 V to 3.6 V.
- Operating temperature range from -40°C to 150°C ensures reliability under extreme conditions.
- Features integrated op amps internally connected to the ADC module for enhanced signal conditioning.
- Compact dimensions of 10.5 mm length, 5.6 mm width, and 2 mm height.
Product Description
Microchip DSPIC33CK64MC102-I/SS is a cutting-edge 16-bit digital signal processor designed for automotive, motor control, and other high-performance applications. Featuring a 100 MHz maximum clock frequency and 100 MIPS throughput, it integrates advanced DSP capabilities with enhanced on-chip peripherals for robust performance.
The device includes 64kB of program flash memory with ECC and fault injection testing to ensure program reliability. It also incorporates 8kB of data SRAM with memory built-in self-test (MBIST), providing robust data integrity.
The 28-Pin SSOP/UQFN package supports up to four PWM channels with 2 ns resolution and eleven 12-bit ADC channels, with three internal operational amplifiers connected to the ADC module enabling sophisticated signal processing functionalities.
Operating across a voltage range of 3 V to 3.6 V and a temperature range from -40°C to 150°C, this DSP ensures reliability in demanding industrial and automotive environments. It complies with necessary functional safety standards, including ISO26262, making it suitable for safety-critical applications.
Operates at 100 MHz clock frequency delivering 100 MIPS. Program memory size of 64kB FLASH and RAM size of 8kB. Supports 4 PWM channels and 11 ADC channels with 12-bit resolution. Package type is 28-Pin SSOP/UQFN with compact size.
Functional safety features and fault detection enhance system reliability. Operating temperature range from -40°C up to 150°C. Integrates three op amps linked internally with ADC module for enhanced analog input capabilities.
Ideal for automotive, motor control, manufacturing, industrial, and laboratory applications.
For more functional and design resources, developers can utilize Microchip's extensive library of technical documents and design software. This DSP is a premium choice for reliable and efficient embedded control solutions.
Explore our Electronics & Electricals category for more semiconductor and Digital Signal Processors to suit your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 100 MHz.
It features 64kB of program flash memory.
The operating temperature range is from -40°C to 150°C.
This model supports 11 ADC channels with 12-bit resolution.
The RAM size is 8kB.
It operates with supply voltages ranging from 3 V to 3.6 V.
It supports up to four PWM channels.
This unit comes in a 28-Pin SSOP/UQFN package type.
It utilizes a RISC and DSP instruction set architecture.
It integrates three operational amplifiers internally connected to the ADC module for enhanced signal conditioning.
The pin count for this processor is 28.
Yes, it is designed for robust automotive, motor control, and high-performance applications.
