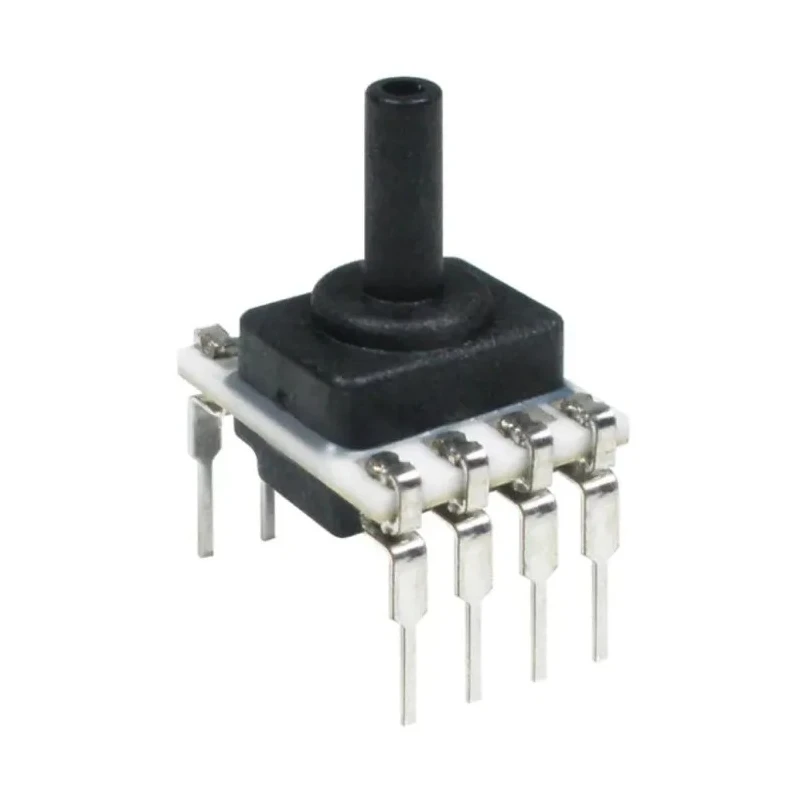

Honeywell Technologies Gauge Pressure Sensor Board 8 DIP 3.3V-5V Supply ±0.25% Accuracy HSCDLNN060MGAA5

Honeywell HSCDLNN060MGAA5 is a precision gauge pressure sensor board designed for reliable measurement of pressure referenced to atmosphere. It features an 8-pin DIP package enabling straightforward through-hole mounting on printed circuit boards. The sensor operates at supply voltages ranging from 3.3 to 5 volts, providing a ratiometric output that scales with voltage. It delivers high accuracy with ±0.25% tolerance and is temperature compensated for consistent performance across a wide range of conditions.

This sensor supports a maximum operating pressure of 6000 kPa and offers overload protection up to 85 kPa to enhance system safety. Its single axial barbless port design simplifies tubing connections and maintenance.

Designed and manufactured to ISO 9001 standards, it is suitable for applications including ventilators and respiratory machines in medical equipment, clogged-filter detection and transmitters in HVAC systems, gas-flow instrumentation, flow calibrators in laboratories, pneumatic controls, and variable air volume (VAV) control in industrial settings. It is compatible with non-corrosive, non-ionic gases and certain non-ionic liquids on the port.

The sensor features onboard calibration and temperature compensation for temperatures typically characterized from 0°C to 50°C but remains rated to operate between -20°C and +85°C for high-temperature environments. Its compact dimensions (approximately 13.75 mm height, 13.3 mm width, and 10 mm length) make it suitable for compact PCB integration.

Provides accurate gauge pressure measurement with ±0.25% accuracy. Supports operating supply voltage range from 3.3V to 5V. Designed in 8-pin DIP package for easy through-hole PCB mounting. Built for maximum operating pressure up to 6000 kPa and overload protection of 85 kPa.

Supports high-temperature operation up to +85°C for extended use. Features single axial barbless port for simplified tubing connection. On-board calibration and temperature compensation for reliable readings. Ideal for medical, HVAC, laboratory, and industrial pneumatic control applications.

Manufactured to ISO 9001 standards ensuring quality and consistency. Explore the wide range of Pressure Sensor ICs at EnvMart for innovative sensor solutions tailored to your industrial and laboratory instrumentation needs.
