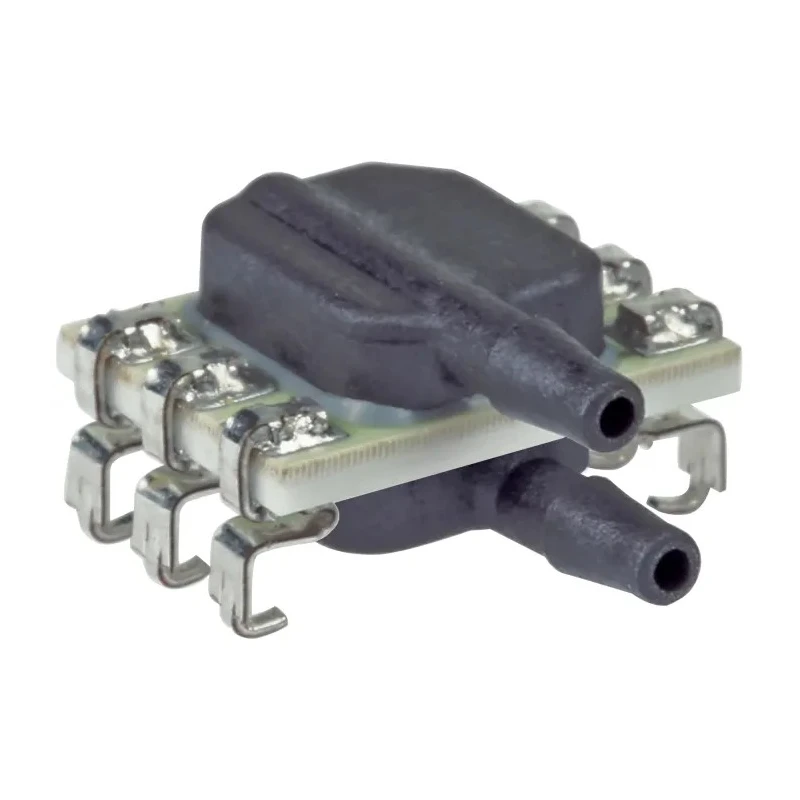

Honeywell Technologies Gauge Pressure Sensor Board 6 SMT, 60 mbar Max Operating Pressure, ±0.25% Accuracy ABPMRRV060MG2A3

Honeywell Technologies ABPMRRV060MG2A3 is a high-precision gauge pressure sensor board designed for accurate monitoring of low-pressure systems with a maximum operating pressure of 60 mbar and an accuracy of ±0.25%.

This piezoresistive pressure sensor is optimized for PCB mounting with a 6-pin SMT package, providing a compact footprint measuring 7.3mm in length, 6.3mm in width, and 10.63mm in height. It supports industry-standard supply voltages up to 5V with a minimum of -0.3V, ensuring compatibility with a wide range of electronic circuits.

The sensor offers ratiometric analogue outputs and 12-bit digital outputs via I2C or SPI, capable of updating readings at frequencies up to approximately 1 kHz for analogue and 2 kHz for digital signals. It features dual radial barbed ports allowing wet-wet differential use, suitable for measuring dry gases, non-corrosive liquids, and condensation conditions with optional silicone gel protection.

Its rugged design includes a maximum overload pressure rating of 200 kPa to protect against transient pressure spikes. The device operates reliably over a broad temperature range from -40°C to +85°C, making it suitable for harsh environments.

Applications for the ABPMRRV060MG2A3 sensor include medical devices such as CPAP and ventilator pressure monitoring, pneumatic control and valve positioning, household appliances like coffee makers and washing machines, blood analysis devices, patient monitoring equipment, HVAC pressure transmitters, and process gas monitoring systems.

The sensor is manufactured in compliance with ISO 9001 quality standards and is RoHS certified, ensuring environmental safety and reliability. Its stable long-term performance is specified as ±0.25% of full scale span over 1000 hours at 25°C.

Provides ratiometric analogue or 12-bit digital output via I2C or SPI interfaces. Temperature compensated across operating range from -40°C to +85°C. Supports measurement of low-pressure systems and wet-wet differential with dual radial barbed ports.

Robust design with 200 kPa maximum overload pressure tolerance. Compact footprint with 7.3mm length, 6.3mm width, and 10.63mm height suitable for PCB mounting. Applications include CPAP and ventilator pressure monitoring, pneumatic controls, and HVAC transmitters.

Manufactured to ISO 9001 standards and RoHS compliant. Offers long-term stability of ±0.25% FSS over 1000 hours at 25°C. Explore more specialized Pressure Sensor ICs and solutions at EnvMart for your industrial, laboratory, medical, and HVAC instrumentation needs.
