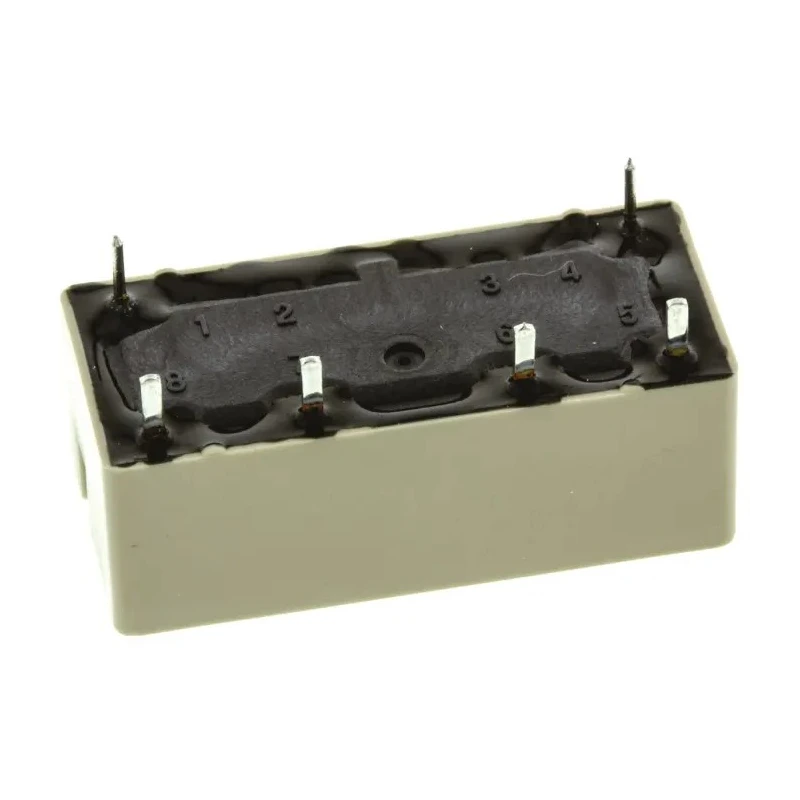

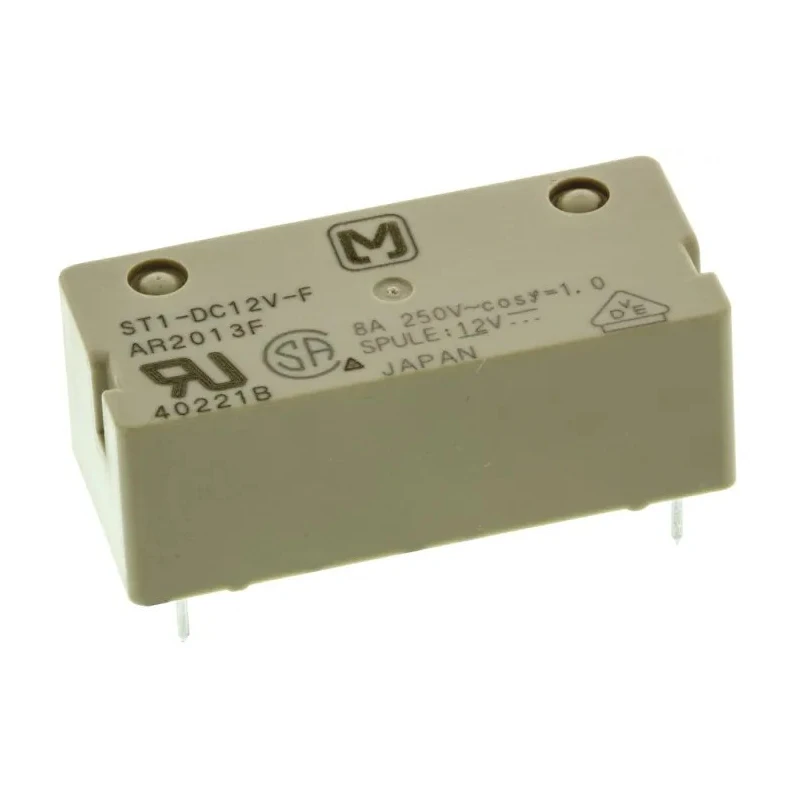

Panasonic Power Relay PCB Mount 12V DC Coil 8A Switching Current ST1-DC12V-F
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 11mm |
| Length | 31mm |
| Model | ST1-DC12V-F |
| Width | 14mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | ST |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 600Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 240mW |
| Panasonic Non-Latching Relay, 8A Switching CurrentBrand | Panasonic |
Key Features
- This power relay features a sealed construction suitable for automatic cleaning.
- The coil resistance is 600Ω with a coil power rating of 240mW.
- It supports switching voltages up to 250V DC and 380V AC with gold-plated contact material.
- Operating temperature ranges from -40°C to 60°C, allowing versatile industrial applications.
- The relay has compact dimensions of Height 11mm, Width 14mm, and Length 31mm.
- It belongs to the ST series and mounts on PCB using solder terminals.
- This relay is IC drivable, offering high switching capability and breakdown voltage.
- Made in Japan, it complies with RoHS standards.
Product Description
Panasonic ST1-DC12V-F power relay is a highly reliable PCB mount relay designed for industrial and electrical automation applications. Featuring a 12V DC coil and 8A switching current, this relay is ideal for switching inductive loads such as lamps and motors. The sealed construction design enables automatic cleaning, ensuring durability and consistent operation in harsh industrial environments.
With gold-plated contacts, it offers low contact resistance and enhanced longevity. The relay operates efficiently within a temperature range of -40°C to +60°C, suitable for diverse climatic conditions. Its compact form factor (11mm height, 14mm width, 31mm length) allows easy integration into circuit boards.
The coil resistance of 600Ω and power rating of 240mW makes it suitable for IC-driven applications, providing stable and sensitive switching performance. The relay supports switching voltages up to 250V DC and 380V AC, ensuring compatibility with a broad range of electrical loads.
This power relay features a sealed construction suitable for automatic cleaning. The coil resistance is 600Ω with a coil power rating of 240mW. It supports switching voltages up to 250V DC and 380V AC with gold-plated contact material.
Operating temperature ranges from -40°C to 60°C, allowing versatile industrial applications. The relay has compact dimensions of Height 11mm, Width 14mm, and Length 31mm. It belongs to the ST series and mounts on PCB using solder terminals.
This relay is IC drivable, offering high switching capability and breakdown voltage. Made in Japan, it complies with RoHS standards.
Commonly used in electronic manufacturing, industrial automation, HVAC, power management, and control systems, this Power Relay enhances circuit reliability and protection. Compatible ST-PS relay sockets are available separately for ease of installation.
Explore more Panasonic relays and contactors at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current of 8A, making it suitable for various electrical loads.
This model operates with a coil voltage of 12V DC.
The relay has compact dimensions of 11mm in height, 14mm in width, and 31mm in length.
It supports a maximum switching voltage of 250V DC and 380V AC.
The coil resistance is 600Ω, which is suitable for IC-driven applications.
The operating temperature range is from -40°C to 60°C, allowing for versatile industrial applications.
It mounts on PCB using solder terminals, facilitating easy integration into circuit boards.
The relay features gold-plated contacts, which help reduce contact resistance and enhance longevity.
The coil power rating is 240mW, providing efficient operation for the relay.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
This relay belongs to the ST series, which is designed for reliability in industrial applications.
It is commonly used in electronic manufacturing, industrial automation, HVAC, power management, and control systems.
