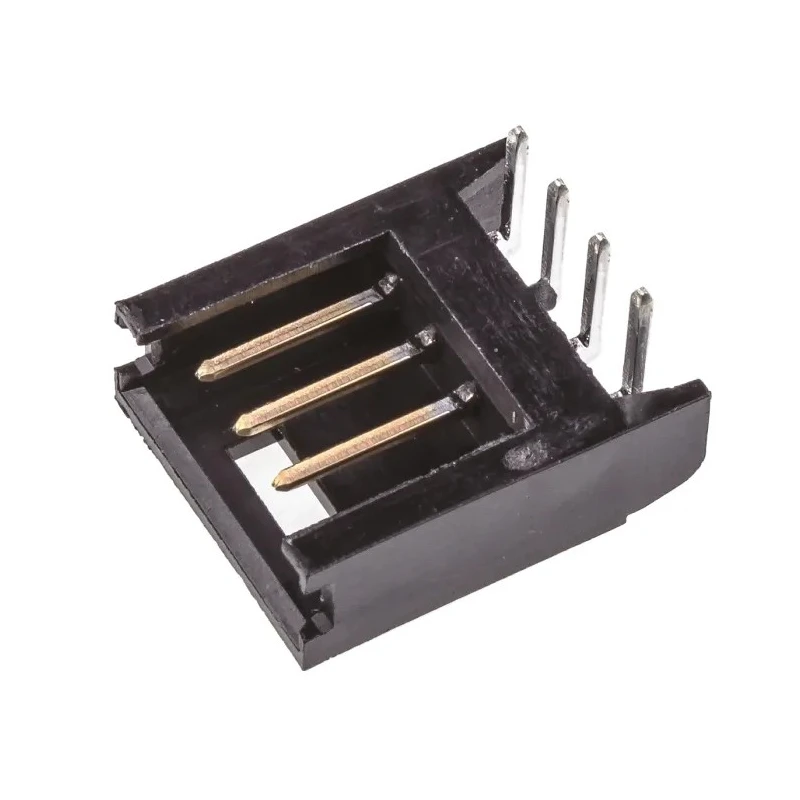

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Shrouded PCB Header 4 Contacts 2.54 mm Pitch 280378-2

TE Connectivity 280378-2 AMPMODU MOD II Series Right Angle Through Hole Shrouded PCB Header, featuring a 2.54 mm pitch and 4 contact points in a single row, offers robust and reliable connectivity solutions for industrial, automotive, telecommunications, medical, and storage equipment applications.

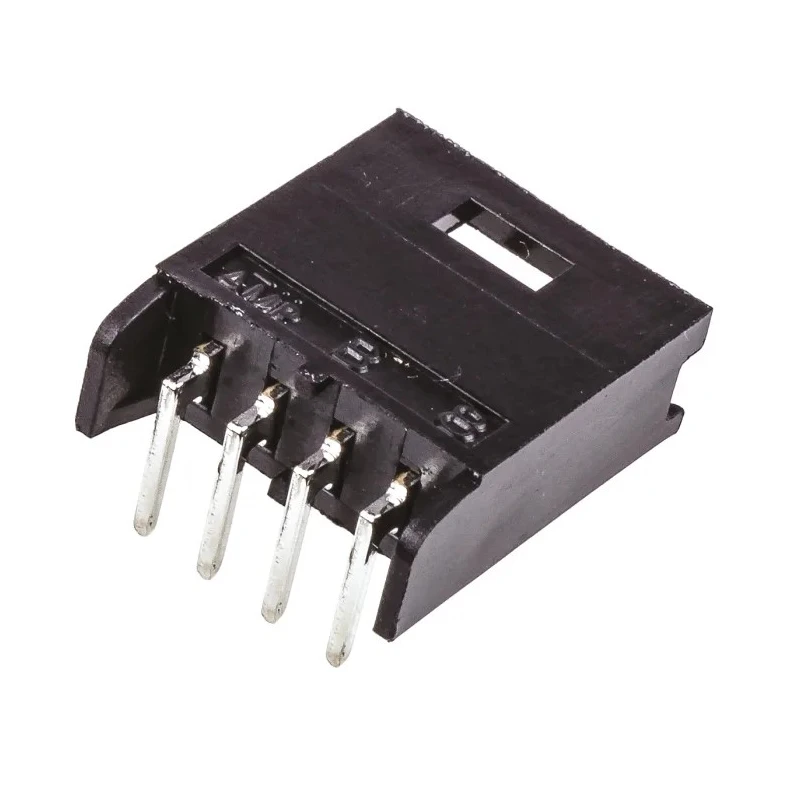

The header's housing is molded from thermoplastic material with shrouding on three sides to protect the pins and prevent accidental damage. The polarized design ensures correct mating with compatible connectors, eliminating misconnection risks. A detent window in the housing guarantees a secure positive locking connection, enhancing mechanical stability in demanding environments.

Constructed using brass contacts plated with gold, these connectors provide excellent electrical conductivity and resist corrosion, supporting operation up to 750 volts. The operating temperature range from -65°C to 105°C allows for versatile use across a wide spectrum of industrial and automotive conditions.

The PCB header employs a through-hole mounting style with right angle orientation, optimizing PCB layout space and supporting ease of assembly. The single row configuration includes four contacts with solder termination and a tail pin length of 3.5 mm, ensuring secure electrical and mechanical connections to the printed circuit board.

These connectors are part of TE Connectivity's AMPMODU Interconnect System, widely recognized for its compact design and suitability for automation and control signals in industrial environments. This system integrates board-to-board and wire-to-board connectors, meeting rigorous requirements for strength, reliability, and economy.

Shrouded housing provides pin protection and mechanical durability. Polarized design prevents mismating for secure connections. Detent locking mechanism ensures positive engagement. Brass contacts plated with gold for excellent conductivity.

Operating voltage up to 750 V across -65°C to 105°C temperature range. Right angle, through-hole mounting for compact PCB integration. Single-row, 4-contact configuration with 3.5 mm tail pin length. Suitable for automotive, industrial test equipment, computing, telecommunications, and medical instruments.

Part of the economical and reliable AMPMODU Interconnect System for automation and control applications. Explore the Electronics Components category for similar PCB Headers and connectors to enhance your project assembly and performance.
