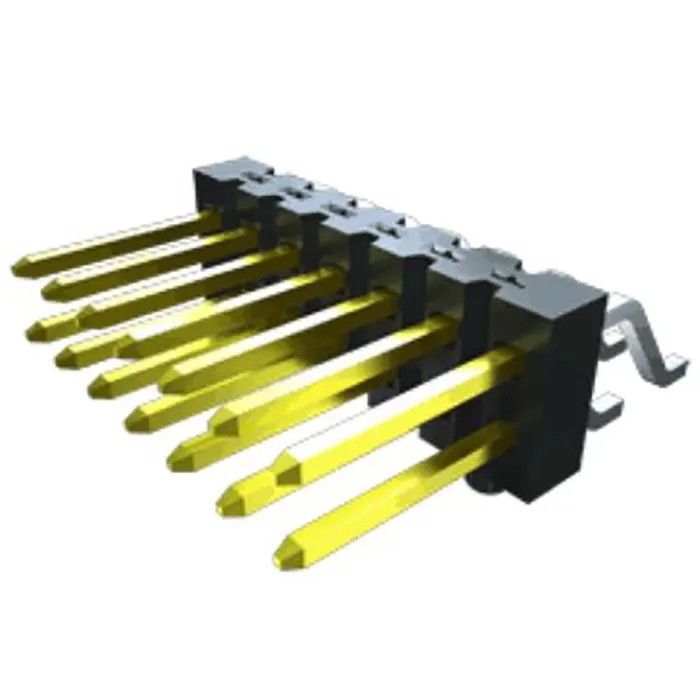

Samtec Pin Header 20 Contacts 2.54 mm Pitch 2 Row Right Angle Surface Mount Unshrouded TSM-110-01-L-DH-A

Samtec TSM-110-01-L-DH-A is a precision-engineered pin header featuring 20 contacts arranged in 2 rows with a 2.54 mm pitch. This right angle, unshrouded surface mount connector incorporates liquid crystal polymer housing for enhanced mechanical strength and thermal resistance. The phosphor bronze contacts are plated with 0.25 μm gold on the posts and matte tin on the tails to ensure excellent electrical conductivity and long-term corrosion resistance.

This component supports a wide operating temperature range from -55°C to 125°C, making it suitable for demanding industrial and commercial electronic environments. The connector has a voltage rating of 475 V, providing suitability for robust board-to-board electrical interfacing in various applications including industrial machinery, automation systems, telecommunications, and medical devices.

The solder termination type facilitates reliable attachment to PCBs, and the male contact gender ensures compatibility with common female connectors. The unshrouded design allows easy access for terminal connections, enabling flexible use in design and prototyping.

Key features include the high-quality liquid crystal polymer housing and phosphor bronze contacts with gold and tin plating, ensuring durability and optimal performance. This connector’s right angle mount orientation optimizes PCB layout in compact electronic assemblies.

This product is ideal for electronics manufacturing, laboratory instrumentation, communications equipment, and other sectors requiring reliable and compact board-to-board connectors. It supports efficient PCB assembly workflows and offers proven compliance with industry standards.

The connector features a right angle orientation suitable for board-to-board connections. Constructed with liquid crystal polymer housing for high durability. Contacts are made of phosphor bronze with gold or tin plating for reliable conductivity.

Unshrouded design allows for versatile terminal access. Operates effectively over a temperature range from -55°C to 125°C. Voltage rating of 475 V suitable for multiple electronic applications. Solder termination type ensures secure PCB mounting.

Male contact gender provides standard pin header compatibility. Explore the extensive range of PCB Headers and electronic components at EnvMart to enhance your designs with high-quality connectors like the Samtec TSM series.
