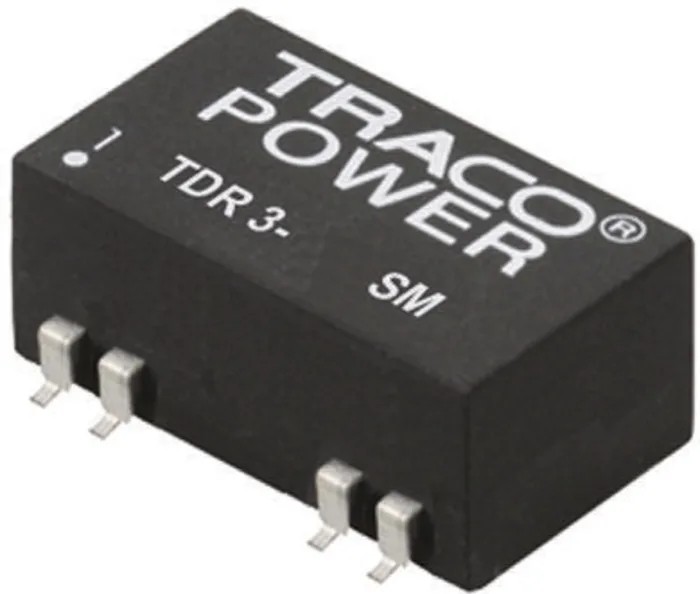

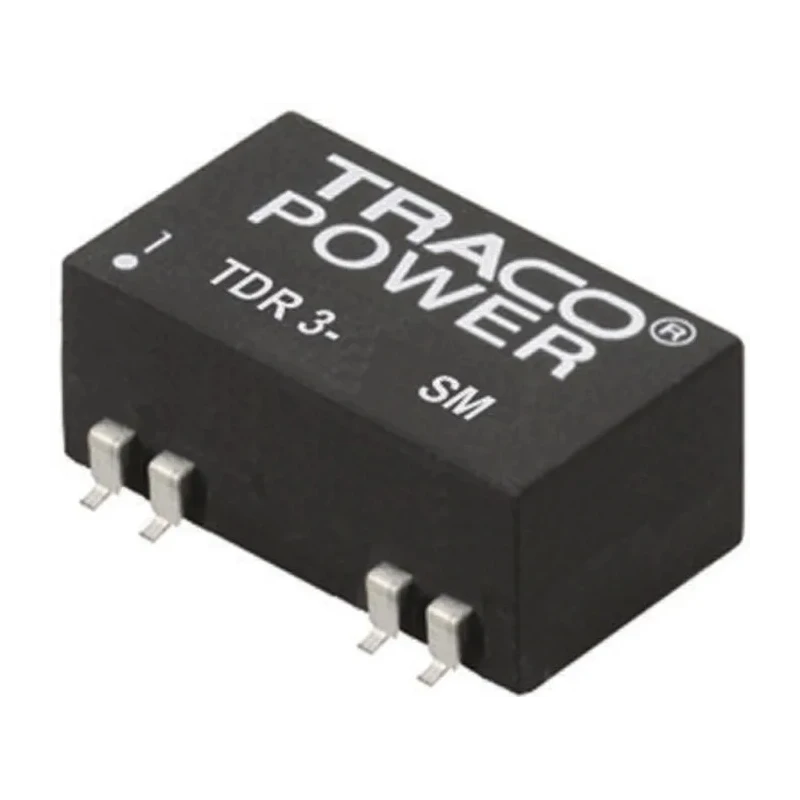

TRACOPOWER DC/DC Converter Surface Mount 2 Outputs 15V Dc 100mA 3W 36V Input TDR 3-2423SM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TDR 3SM DC/DC Converter, 15V dc/ 100 mA |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 18.9mm |
| Model | TDR 3-2423SM |
| Depth | 8.45mm |
| Mount Type | Surface |
| Series | TDR 3SM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 6200000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 14 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 100mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -15V dc |
| Wide 2 | 1 input voltage range |
| TDR 3-05xx | see stock number 745-1180 |
| TDR 3-12xx | see stock number 745-1200 |
| TDR 3-24xx and TDR 3-48xx | see stock number 745-1171 |
Key Features
- Offers a wide input voltage range from 18V to 36V DC for versatile power applications.
- Provides fully regulated dual outputs ensuring stable power delivery.
- Features 1500 V DC isolation voltage enhancing safety in electronic circuits.
- Constructed with low ripple and noise for precise electronic instrumentation and communication equipment.
- Designed to operate between -40°C and +85°C for reliable performance in harsh environments.
- Equipped with short circuit protection and remote On/Off control for operational safety.
- Compact surface mount package with dimensions 18.9mm length and 8.45mm depth for space-saving PCB designs.
- Complies with RoHS standards ensuring environmental compliance.
Product Description
TRACOPOWER TDR 3-2423SM is a high-performance DC/DC converter designed for industrial and electronic applications requiring compact, reliable power supply solutions. This surface mount, dual output converter delivers a 15V DC output voltage at 100mA output current, with a maximum output power of 3W. It supports a wide input voltage range from 18V to 36V DC, accommodating diverse power sources in communication equipment, instrumentation, and industrial electronics.
The device features fully regulated outputs and requires no minimum load, providing efficient energy conversion with low ripple and noise levels suitable for sensitive electronics. With an isolation voltage of 1.5kV DC, it ensures operator safety and prevents electrical interference between input and output circuits.
Designed to meet IEC/EN 60950-1 and UL 60950-1 safety standards and compliant with RoHS directives, this converter supports operation in extreme temperature conditions from -40°C up to 85°C, making it ideal for harsh industrial environments.
Additional features include short circuit protection and remote On/Off control for enhanced usability and safety. The unit’s compact dimensions (18.9mm length and 8.45mm depth) allow easy integration on densely populated printed circuit boards.
Wide 2:1 input voltage range ensures versatility across power sources. Fully regulated dual outputs for stable power delivery. Low ripple and noise enhance performance in sensitive applications. High efficiency rate of 82% reduces thermal dissipation.
Short circuit protection and remote On/Off control increase operational safety. Compliant with IEC/EN 60950-1 and UL 60950-1 safety standards. RoHS certified ensuring environmental safety. Operating temperature range from -40°C to +85°C suits harsh environments.
Compact surface mount design for space saving on PCB.
This TRACOPOWER TDR 3-2423SM DC/DC Converter is an excellent choice for industrial, communication, instrumentation, and manufacturing applications where reliable, regulated, and efficient power conversion is essential. Explore more from EnvMart’s extensive selection of power supplies and converters for precise, durable electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V to 36V DC.
This unit provides dual outputs: 15V DC at 100mA for the first output and -15V DC for the second output.
The maximum output power of the TDR 3-2423SM is 3W.
It has an efficiency rating of 82%.
The isolation voltage is 1.5kV DC, enhancing safety in electronic circuits.
This converter is designed to operate within a temperature range of -40°C to +85°C.
The dimensions of this surface mount converter are 18.9mm in length and 8.45mm in depth.
Yes, it is equipped with short circuit protection for operational safety.
The TDR 3-2423SM is designed for surface mounting.
It complies with IEC/EN 60950-1 and UL 60950-1 safety standards.
The mean time between failures (MTBF) for this unit is 6,200,000 hours.
Yes, the TDR 3-2423SM is RoHS certified, ensuring environmental safety.
