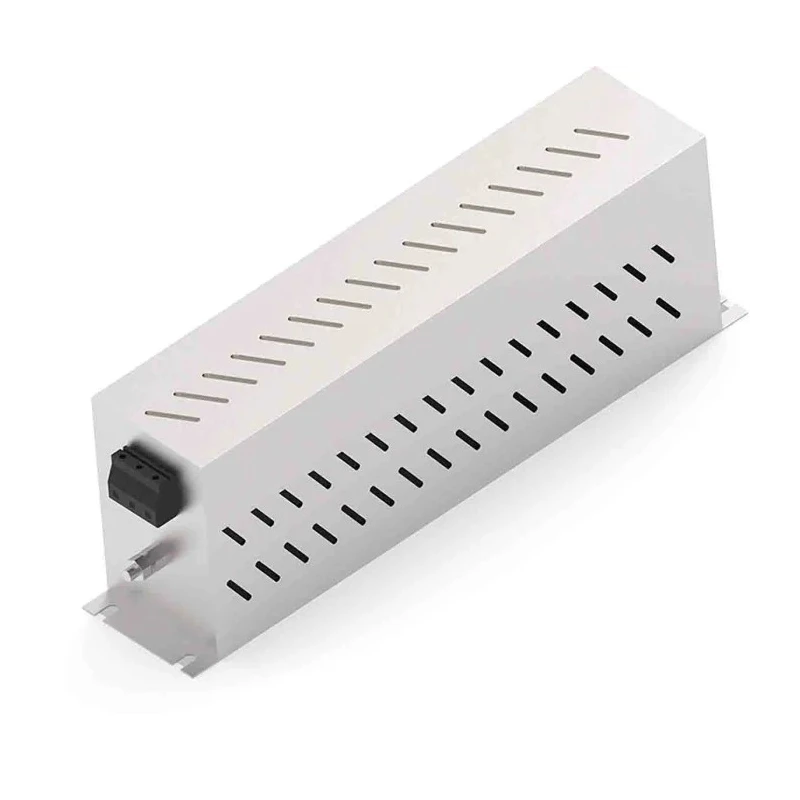

TE Connectivity Chassis Mount 3-Phase EMI Filter 30A 520V AC 50Hz, 60Hz Terminal Block 30KEHD10BBSD

TE Connectivity 30KEHD10BBSD is a chassis mount EMI filter designed for 3-phase industrial power applications operating at 520V AC and supporting a maximum current of 30A. It features a 2-stage design with single stage delta (3-wire + ground) configuration to provide effective attenuation of electromagnetic interference, ensuring stable and reliable power line performance.

This power line filter functions optimally within the standard operating frequency range of 50Hz to 60Hz. The terminal block termination style provides robust and secure electrical connections suitable for demanding industrial environments. The device is rated to operate across a wide temperature span from -25°C to 85°C, making it ideal for varied climate conditions and ensuring durability and longevity in service.

With a leakage current rated at only 10mA, this EMI filter minimizes power wastage while maintaining compliance with UL and CSA safety standards. The product is universally applicable and cost-effective, offering excellent power attenuation characteristics tailored for HVAC systems, rectifiers, industrial control systems, and other power-sensitive applications.

The chassis mount form factor supports easy installation and mechanical stability within equipment racks or control panels, enhancing overall system integration efficiency. This EMI filter supports 3-phase power systems with a 2-stage design for enhanced filtering.

Operates efficiently within a frequency range of 50Hz to 60Hz. Features a terminal block type termination for secure electrical connections. Designed for a broad temperature range from -25°C to 85°C for reliable performance.

Provides a low leakage current of 10mA ensuring minimal power loss. Constructed to meet UL and CSA standards for safety and quality compliance. Universal and cost-effective solution suitable for HVAC, rectifier, and industrial control systems.

Chassis mount design allows easy integration into electrical enclosures.

Manufactured in India, this product offers high reliability and quality control standards. It is well suited for industrial, manufacturing, HVAC, and electrical installation use cases. Its robust design and industry certifications ensure dependable performance for demanding technical environments.

For professionals seeking advanced EMI filtering solutions for three-phase power control and power electronics, TE Connectivity’s 30KEHD10BBSD provides an optimal balance of efficiency, safety, and value.
