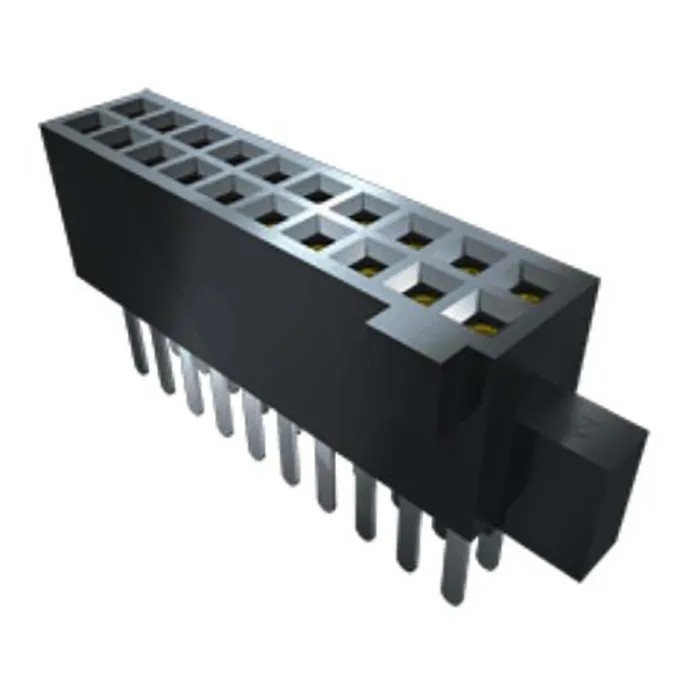

Samtec SFM Series Straight Surface PCB Socket, 30-Contact, 2 Row, 1.27 mm Pitch, 3.2 A, 250V SFM-115-02-L-D-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec SFM Series Straight Surface PCB Socket, 30-Contact, 2 Row, 1.27 mm Pitch, 3.2 A, 250V SFM-115-02-L-D-A-K-TR

Name: Samtec SFM Series Straight Surface PCB Socket, 30-Contact, 2 Row, 1.27 mm Pitch, 3.2 A, 250V SFM-115-02-L-D-A-K-TR
Brand: Samtec
SKU: 167331
Price: 6.21 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Straight
Current	3.2A
Model	SFM-115-02-L-D-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	SFM
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	High Reliability Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	30
Contact Gender	Female
Connector System	Board-to-Board, Cable
Stacking Height	12mm

Key Features

The socket supports surface mount technology with straight orientation for board-to-board and cable connectors.
It uses gold-plated beryllium copper alloy contacts for enhanced conductivity and reliability.
Constructed with a liquid crystal polymer housing to ensure high durability and heat resistance.
Designed for operating temperatures ranging from -55°C to 125°C for diverse applications.
The stacking height is 12 mm, suitable for compact PCB designs requiring high reliability.
No certifications or approvals are indicated for this component.
It is ideal for industrial electronics, communication equipment, and high-speed data transfer systems up to 8 Gbps.

Product Description

Samtec SFM-115-02-L-D-A-K-TR is a high-reliability PCB socket designed with 30 contacts in a dual-row 1.27 mm pitch configuration. This straight surface mount socket is manufactured using liquid crystal polymer housing and beryllium copper alloy contacts plated with gold, ensuring excellent electrical performance and robust mechanical characteristics.

Rated for 3.2 A current per pin and a voltage of 250 V AC, the socket offers reliable connectivity for demanding industrial and electronic applications. Its operating temperature range from -55°C to 125°C makes it suitable for harsh environmental conditions.

The stacking height of 12 mm supports compact PCB assemblies requiring board-to-board or cable connection systems. The solder termination type ensures a secure and permanent mounting onto printed circuit boards.

This SFM series socket supports data transfer speeds up to 8 Gbps, making it ideal for use in high-speed communication devices, industrial automation, and electronic testing equipment.

The component comes without any specified certifications but meets the fundamental requirements for durability and electrical performance in demanding electronic environments. The socket supports surface mount technology with straight orientation for board-to-board and cable connectors.

Gold plated beryllium copper alloy contacts provide enhanced conductivity. Liquid crystal polymer housing ensures durability and heat resistance. Designed for operating temperatures from -55°C to 125°C. Features a stacking height of 12 mm for compact board designs.

Supports current ratings up to 3.2 A per contact. Operates at voltages up to 250 V AC. Suitable for high-speed data transfer up to 8 Gbps.

This PCB socket is highly suitable for industrial, communication, laboratory, and manufacturing applications where reliable electrical connections are essential. Explore more from the PCB Socket category on EnvMart for advanced electronic connectivity solutions.
