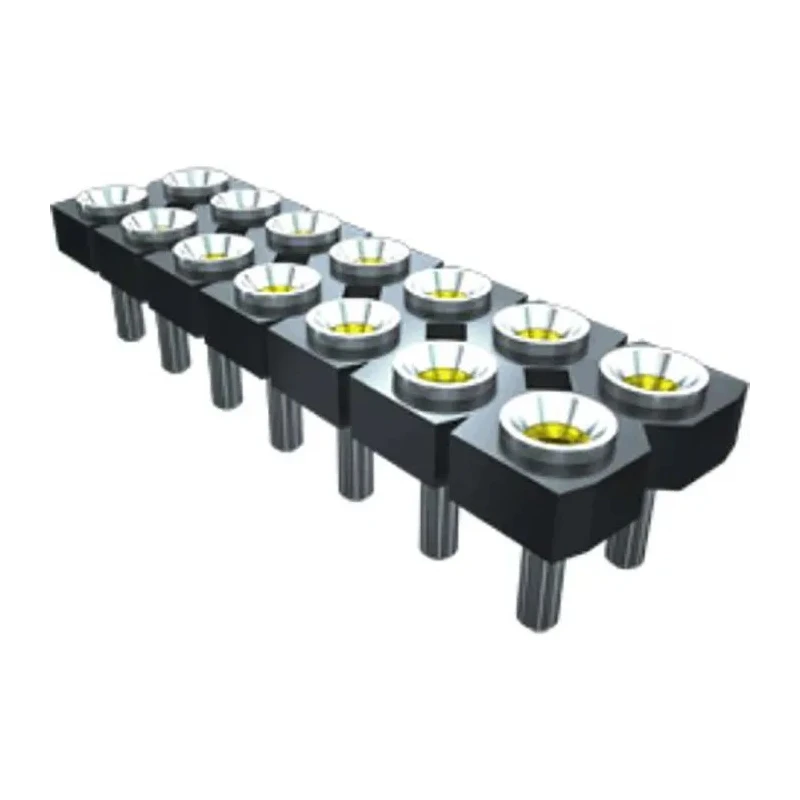

Samtec SDL Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder SDL-105-G-19
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | SDL-105-G-19 |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | SDL |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Connector System | Board-to-Board |
| Stacking Height | 3.89mm |
Key Features
- Features a black glass filled polyester housing for durability.
- Designed for through hole mounting with board-to-board connector system.
- Operating temperature range from -55°C to 125°C for various industrial conditions.
- Contacts made of beryllium copper alloy plated with gold for reliable conductivity.
- The socket has a stacking height of 3.89 mm providing low profile connection.
- Compatible with standard 2.54 mm row pitch and 2-row configuration.
- RoHS compliant ensuring environmental and safety standards.
- Ideal for electronic components and PCB connector applications.
Product Description
Samtec SDL Series Straight Through Hole PCB Socket, model SDL-105-G-19, features a reliable 10-contact, 2-row configuration with standard 2.54 mm pitch solder termination. Its black glass filled polyester housing offers durability and stability for electronic assemblies.
This socket supports a board-to-board connector system, mounted through the PCB holes ensuring secure and lasting connections. The stacking height of 3.89 mm maintains a compact profile suitable for space-conscious electronic designs.
It operates reliably in a wide temperature range from -55°C to 125°C, making it suitable for industrial, commercial, and laboratory electronics applications where temperature endurance is critical.
Contact parts are crafted from beryllium copper alloy and plated with gold to ensure excellent electrical conductivity and corrosion resistance. Compliance with RoHS standards confirms the product's adherence to environmental safety regulations.
This model is used extensively in electronics manufacturing, PCB assembly, power and connector applications across multiple industrial sectors. It provides a robust and precise connection to enhance signal integrity and mechanical reliability in electronic systems.
Features a black glass filled polyester housing for durability. Designed for through hole mounting with board-to-board connector system. Operating temperature range from -55°C to 125°C for various industrial conditions. Contacts made of beryllium copper alloy plated with gold for reliable conductivity.
The socket has a stacking height of 3.89 mm providing low profile connection. Compatible with standard 2.54 mm row pitch and 2-row configuration. RoHS compliant ensuring environmental and safety standards. Ideal for electronic components and PCB connector applications.
Explore EnvMart’s comprehensive Electronics Components range for more PCB Sockets and related connectors optimized for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 125°C, making it suitable for various industrial conditions.
This socket features a standard pitch of 2.54 mm, compatible with various PCB designs.
The SDL-105-G-19 socket has a total of 10 contacts arranged in a 2-row configuration.
The contacts are made of beryllium copper alloy and are plated with gold to ensure reliable conductivity.
The stacking height of this socket is 3.89 mm, providing a low profile connection for space-constrained applications.
Yes, this model is RoHS compliant, ensuring it meets environmental and safety standards.
This socket is designed for through hole mounting, facilitating secure connections on PCBs.
The housing of this socket is made from black glass filled polyester, providing durability and stability.
This model supports a board-to-board connector system, allowing for effective interconnection between PCBs.
The minimum operating temperature for this model is -55°C, suitable for a range of industrial applications.
The specific dimensions are not provided, but it has a stacking height of 3.89 mm and a standard 2.54 mm pitch.
This PCB socket is manufactured in India.
