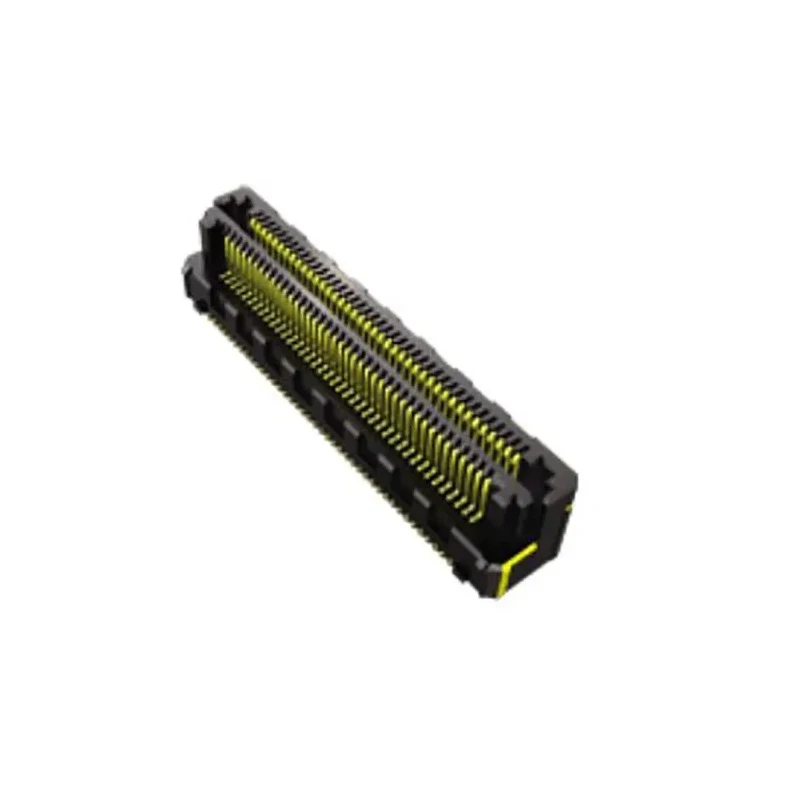

Samtec LSHM Series Vertical Surface PCB Header, 40 Contact 0.5 mm Pitch 2 Row Shrouded LSHM-120-03.0-F-DV-A-S-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 160, 226V ac |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2A |
| Model | LSHM-120-03.0-F-DV-A-S-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | LSHM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a shrouded design for secure mating connection.
- Constructed with phosphor bronze contacts plated in gold for reliable conductivity.
- Housing made from liquid crystal polymer ensuring durability under harsh conditions.
- Supports a current rating of 2A and voltage up to 160, 226V AC.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Vertical orientation with surface mount type for easy PCB integration.
- Utilizes Razor Beam fine pitch contact system for superior connection strength.
- Suitable for high-density applications with up to 100 I/Os capability.
Product Description
Samtec LSHM-120-03.0-F-DV-A-S-K-TR Vertical Surface PCB Header is engineered for industrial-grade electronic assemblies requiring high-density and rugged board-to-board or board-to-cable connections. It features 40 gold-plated phosphor bronze contacts arranged in 2 rows with a 0.5 mm row pitch, providing high reliability and excellent electrical performance in harsh environments.
The housing of this connector is manufactured from liquid crystal polymer, ensuring mechanical strength and resistance to temperature extremes from -55°C up to 125°C. This shrouded header supports a current of 2 amperes and operates at voltages up to 160 and 226 volts AC, making it suitable for demanding electronic applications.
Designed with a vertical orientation and surface mount termination type, the LSHM series connector facilitates easy PCB integration while maintaining secure and stable connections. The Razor Beam fine pitch contact system enhances durability with mating and unmating forces significantly greater (about 4 to 6 times) than standard micro pitch connectors, extending the connector's lifecycle.
Applications span industrial manufacturing, telecommunications, data communication equipment, and other electronics sectors requiring compact, high-density interconnections. The connector's robust design supports up to 100 I/O points, enhancing system scalability and reliability.
Shrouded arrangement safeguards contacts against external damage and misalignment. Gold-plated phosphor bronze contacts ensure optimal conductivity and corrosion resistance. Housing materials are chosen to endure challenging operational environments.
Wide temperature and voltage operating ranges for versatile use. Surface mount technology enables automated soldering and assembly. Fine pitch design supports miniaturization of electronic modules. Increased mating durability reduces maintenance and replacement frequency.
This Samtec PCB header is part of a trusted product line known for exceptional quality, readily found in electronic components catalogs and used globally in commercial and industrial electronics assembly. EnvMart offers this item for professionals seeking reliable and high-performance PCB connectors.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2 amperes.
It operates at voltages up to 160 and 226 volts AC.
It operates reliably in temperature ranges from -55°C to 125°C.
This connector features 40 contacts arranged in 2 rows.
The housing is made from liquid crystal polymer, and the contacts are constructed from phosphor bronze plated in gold.
The contact pitch is 0.5 mm.
It utilizes a solder termination type.
This model features a vertical orientation.
It is designed for board-to-board connections.
The shrouded design is intended to provide a secure mating connection and protect contacts from damage and misalignment.
It is suitable for high-density applications in industrial manufacturing, telecommunications, and data communication equipment.
The Razor Beam fine pitch contact system enhances durability with mating and unmating forces significantly greater than standard micro pitch connectors.
