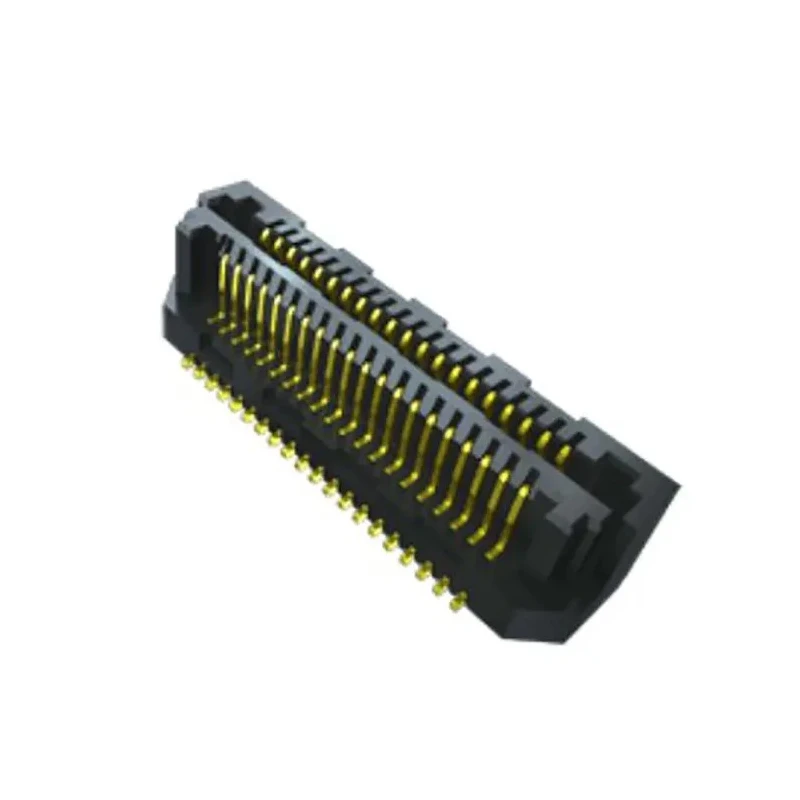

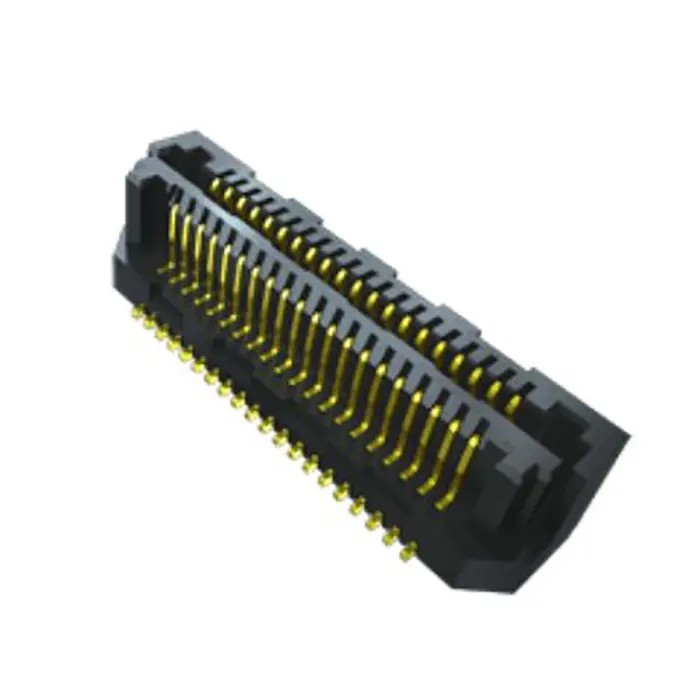

Samtec LSS Series Vertical Surface PCB Header 20 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-110-03-L-DV-A-K-TR

Samtec LSS-110-03-L-DV-A-K-TR is a high-quality vertical surface mount PCB header designed for board-to-board connectivity applications. With 20 male contacts arranged in 2 rows and a 0.635 mm pitch, this shrouded connector offers reliable, robust connections in compact electronic designs.

Constructed using black liquid crystal polymer as the insulating housing material, it provides excellent thermal stability and mechanical strength. The contacts are fabricated from phosphor bronze and plated with gold, enhancing both electrical conductivity and corrosion resistance, thereby ensuring consistent signal integrity.

The LSS series connector supports a maximum continuous current of 1.7 A, making it suitable for moderate power electronic applications. It operates reliably over a wide temperature range from -55°C to 125°C, accommodating harsh industrial and commercial environments.

This self-mating razor beam hermaphroditic design reduces inventory requirements by allowing male-to-male mating, supporting up to 100 input/output connections when used in system-level solutions. The shrouded design safeguards the contacts and improves connection security, which is critical in applications requiring durable and vibration-resistant connections.

It is widely used in electronics manufacturing, industrial controls, telecommunications, and computer hardware industries.

View and download technical resources such as 3D models, design files, schematics, and footprints to facilitate seamless integration into your PCB designs via DesignSpark and TraceParts platforms.

This product is part of EnvMart's comprehensive catalog of PCB Headers and connectors, providing industrial-grade components ideal for engineers and designers invested in quality and reliability.
