Infineon Thyristor 1600 V 2610 A 250 mA 36 kA Surge Current TO-200 Package T2600N16TOFVTXPSA1

The Infineon T2600N16TOFVTXPSA1 is a high-performance Phase Control Thyristor engineered for demanding power applications. It supports a rated average on-state current (Irms) of 2610 A and a repetitive peak reverse voltage (VDRM) of 1600 V, making it suitable for industrial power control scenarios such as uninterruptible power supply (UPS) bypass circuits.

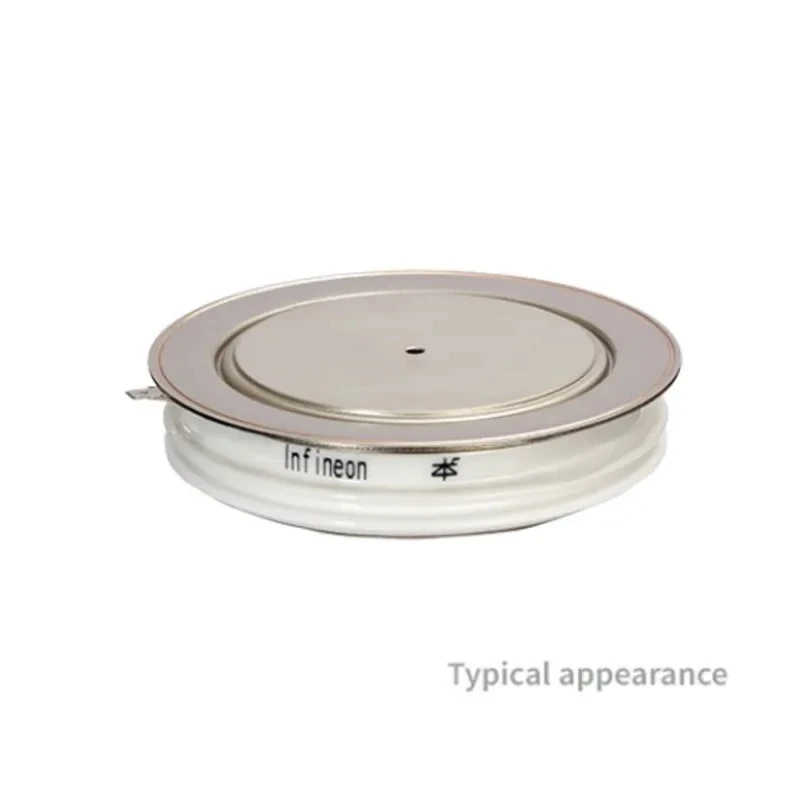

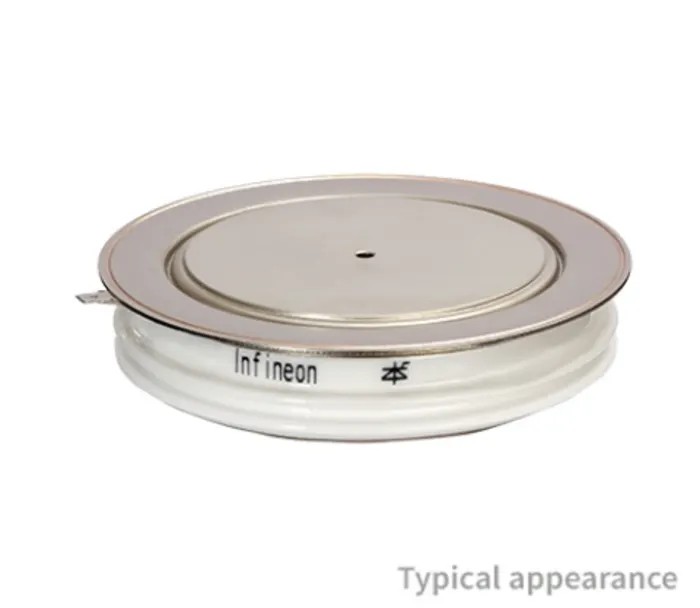

This thyristor is housed in a robust TO-200 package with a diameter of 100 mm and height of 26 mm, providing mechanical durability and hermetic sealing. Its high surge current rating of 36 kA enables tolerance against transient overloads, while the low peak on-state voltage of 1.7 V optimizes efficiency by minimizing conduction losses.

The device features a maximum gate trigger current of 250 mA and a maximum gate trigger voltage of 2 V, allowing reliable gating under diverse operating conditions. It provides a maximum holding current of 300 mA, ensuring stable turn-on and conduction during operation.

This thyristor's wide operating temperature range from -40°C to 135°C supports performance in harsh environments commonly found in industrial and energy sectors.

This component complies with industrial standards though it does not possess automotive certification. Its design focuses on delivering high current capability with reliable thermal and electrical performance in power switching and control systems.

Phase Control Thyristor optimized for UPS-Bypass applications. High surge current capability rated at 36 kA. Robust TO-200 package ensuring reliable operation. Maximum gate trigger current of 250 mA for precise activation.

Operating temperature range from -40°C to 135°C. Maximum on-state voltage of 1.7 V reduces power losses. Four pin configuration suitable for high power circuits. Maximum holding current of 300 mA ensures stable operation.

This Infineon Thyristor is ideal for industrial power electronics, renewable energy inverters, motor control, and power supply protection. For detailed design and integration, technical documents including schematics and 3D models are available.
