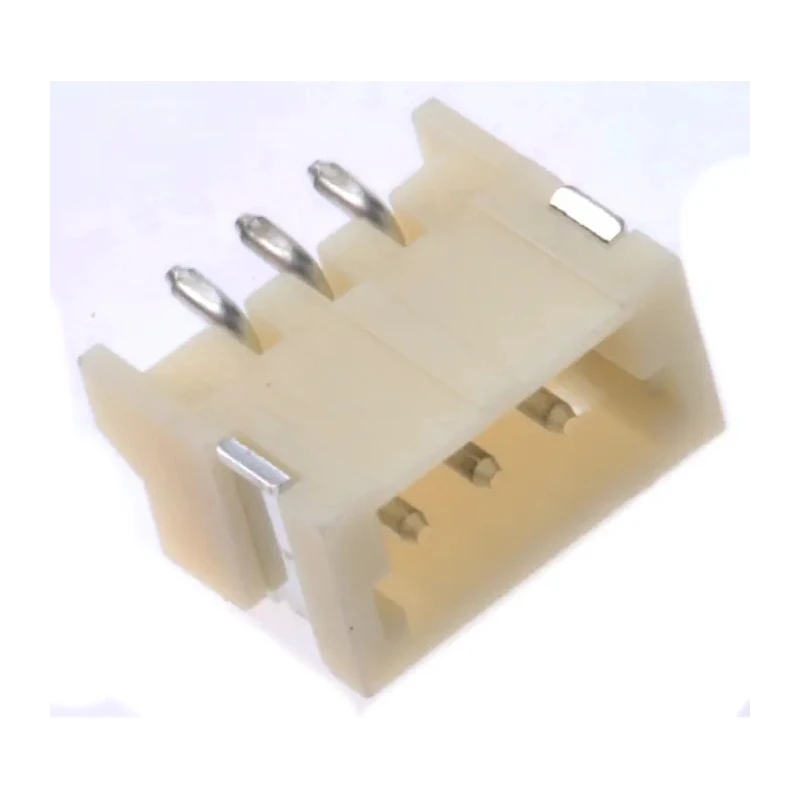

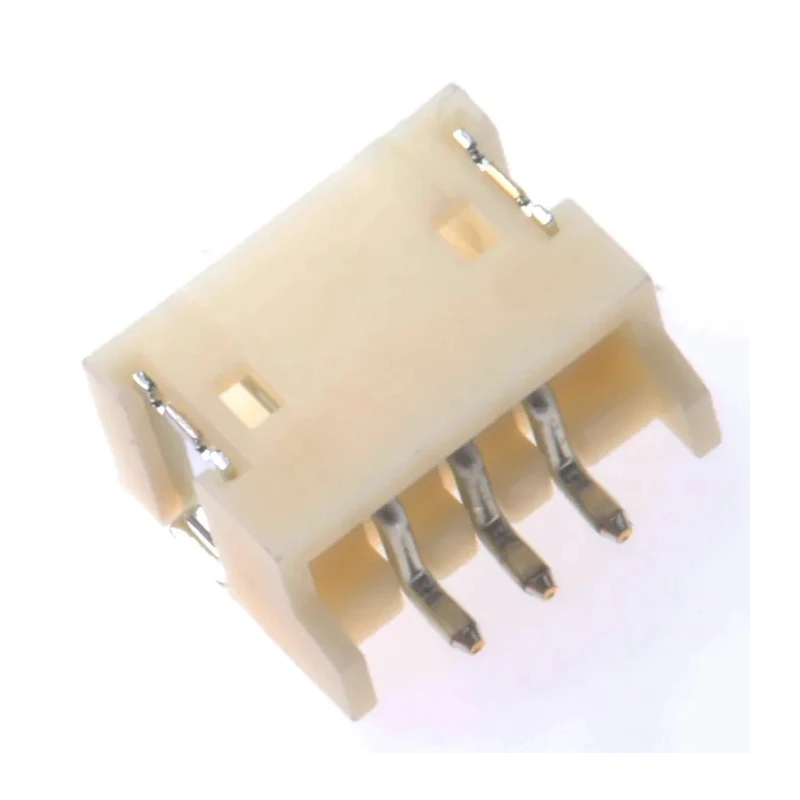

JST ZH Series Right Angle Surface PCB Header 3 Contact 1.5 mm Pitch 1 Row Shrouded S3B-ZR-SM4A-TF (LF)(SN)

JST S3B-ZR-SM4A-TF (LF)(SN) is a right angle surface mount PCB header from the renowned ZH Series, designed for compact and reliable Wire-to-Board connections. This shrouded header accommodates 3 contacts arranged in 1 row with a 1.5 mm pitch, ideal for applications requiring space-efficient circuit board layouts.

The contacts are made from brass material with tin plating providing excellent electrical conductivity and corrosion resistance. The header supports a rated current of 1A and voltage up to 50V, operating reliably within the temperature range of -25°C to 85°C.

Its right angle orientation facilitates side entry SMT mounting, improving board design flexibility and mechanical stability. The shrouded design adds protection against misalignment and mechanical damage during assembly.

This JST ZH Series header is UL Recognized (E60389), CSA Certified (LR20812), and TUV Certified (R9351092), ensuring compliance with rigorous industry standards.

Common industrial uses include electronic manufacturing, PCB assembly lines, and applications in telecommunications, computing, and industrial control equipment requiring compact connections.

Compact Wire-to-Board connector suitable for space-saving PCB designs. Right angle orientation enables easy side entry SMT mounting. Brass contacts coated with tin plating ensure durability and conductivity. Rated for 50V and 1A current with operating temperature range from -25°C to 85°C.

Shrouded construction provides protection and prevents misalignment during soldering. Meets high-quality standards with UL recognition, CSA, and TUV certifications. Side entry type with 1 row and 1.5 mm pitch supports efficient PCB assembly.

Male contact gender with surface mount termination for SMT processes. Set includes the PCB header component supplied on a reel, ready for insertion into automated machinery, enhancing production efficiency and consistency.
