STMicroelectronics 1-Element Uni-Directional TVS Diode 600W, 2-Pin SMA Flat SMA6F48A

Free Delivery in India | Lowest Global Shipping Charges

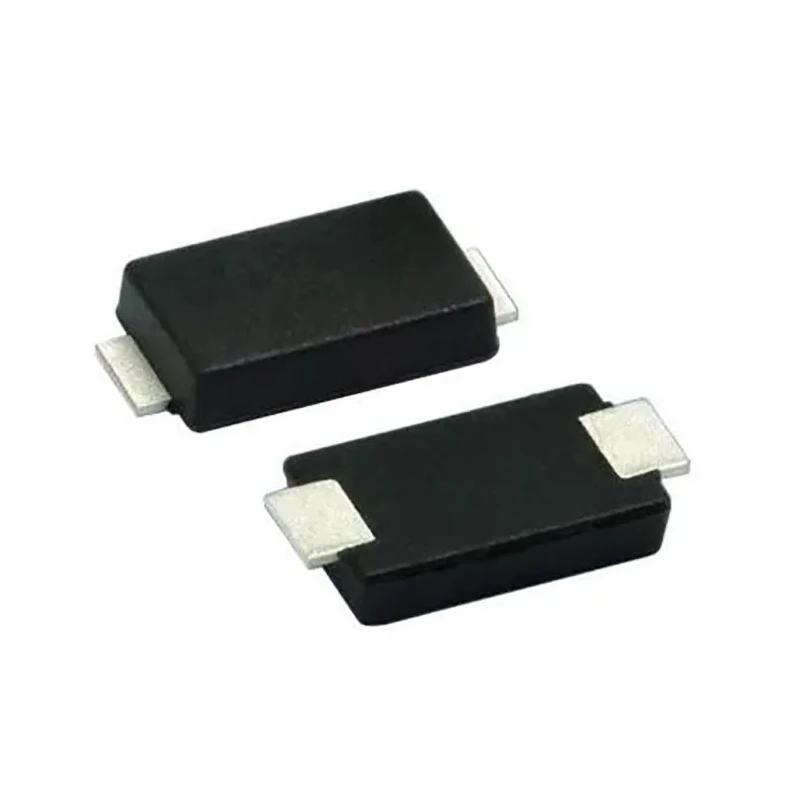

STMicroelectronics 1-Element Uni-Directional TVS Diode 600W, 2-Pin SMA Flat SMA6F48A

Name: STMicroelectronics 1-Element Uni-Directional TVS Diode 600W, 2-Pin SMA Flat SMA6F48A
Brand: STMicroelectronics
SKU: 167008
Price: 0.21 USD
Availability: InStock



Category TVS Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.05mm
Length	4.6mm
Model	SMA6F48A
Width	2.9mm
Mount Type	Surface
Series	SMA6FxxA
Maximum Operating Temperature	175°C
Package Type	SMA Flat
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	77.4V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	58.8V
Maximum Reverse Stand-off Voltage Vwm	48V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	8.1A
Maximum Reverse Leakage Current	1μA

Key Features

This diode features a 2-pin SMA flat package for surface mount applications.
It has a minimum breakdown voltage of 58.8 volts ensuring reliable surge protection.
Designed for a maximum operating temperature of 175°C providing long-term stability.
Low leakage current of 1 microampere enhances circuit efficiency.
Clamping voltage is rated at 77.4 volts for effective transient suppression.
Operates over a temperature range from -55°C to 175°C for versatile environments.
Peak pulse current rating is 8.1 amperes ensuring capability to handle transient surges.
Matte tin plating on leads provides corrosion resistance and reliable solderability.

Product Description

STMicroelectronics SMA6F48A is a single-element, uni-directional Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits against transient surges and voltage spikes commonly encountered in power and signal lines. This diode comes in a compact 2-pin SMA flat package ideal for surface mount technology, ensuring easy integration onto printed circuit boards.

With a maximum peak pulse power dissipation of 600 watts and a clamping voltage of 77.4 volts, the SMA6F48A effectively absorbs transient energy, protecting connected components from damage. It has a minimum breakdown voltage of 58.8 volts and a maximum reverse stand-off voltage of 48 volts, making it suitable for a variety of industrial, telecommunications, automotive, and consumer electronic applications.

This device operates reliably over a wide temperature range of -55°C to 175°C, supporting high junction temperature operation up to 175°C for enhanced durability. The low maximum reverse leakage current of 1 microampere contributes to overall circuit efficiency, while the matte tin plating on the leads enhances solderability and prevents corrosion.

The SMA6F48A employs planar technology to deliver low leakage and high reliability in transient voltage suppression, making it an essential component for protecting volatile circuits in automotive, industrial controls, power supplies, and other electronic equipment where robustness and long-term stability are critical.

This diode features a 2-pin SMA flat surface mount package. Peak pulse power dissipation rating of 600 watts. Minimum breakdown voltage is 58.8 volts for surge protection. Clamping voltage rating is 77.4 volts to limit voltage spikes.

Maximum operating temperature of 175°C supports harsh environments. Low maximum reverse leakage current of 1 microampere enhances reliability. Matte tin plated leads provide excellent corrosion resistance. Uni-directional diode suitable for high end planar technology circuits.

STMicroelectronics products are widely used in semiconductor industries and electronic designs for their high quality and performance. The SMA6F48A is suitable for industrial, telecommunications, automotive, consumer electronics and general electronic component protection applications.

Browse additional TVS Diode offerings and semiconductor components to find matching solutions for your electronics projects at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The SMA6F48A has a peak pulse power dissipation rating of 600 watts, allowing it to effectively absorb transient energy.

The minimum breakdown voltage for the SMA6F48A is 58.8 volts, ensuring reliable surge protection.

The clamping voltage of this model is rated at 77.4 volts, which helps to limit voltage spikes during transient events.

It operates over a temperature range from -55°C to 175°C, making it suitable for various environmental conditions.

The maximum reverse leakage current for this diode is 1 microampere, enhancing overall circuit efficiency.

This diode has dimensions of 4.6mm in length, 2.9mm in width, and a height of 1.05mm.

The SMA6F48A comes in a 2-pin SMA flat package, which is designed for surface mount applications.

The maximum peak pulse current rating for the SMA6F48A is 8.1 amperes, allowing it to handle significant transient surges.

This model features a single-element, uni-directional diode configuration, suitable for various applications.

The SMA6F48A is suitable for protecting sensitive electronic circuits in industrial, telecommunications, automotive, and consumer electronics applications.
