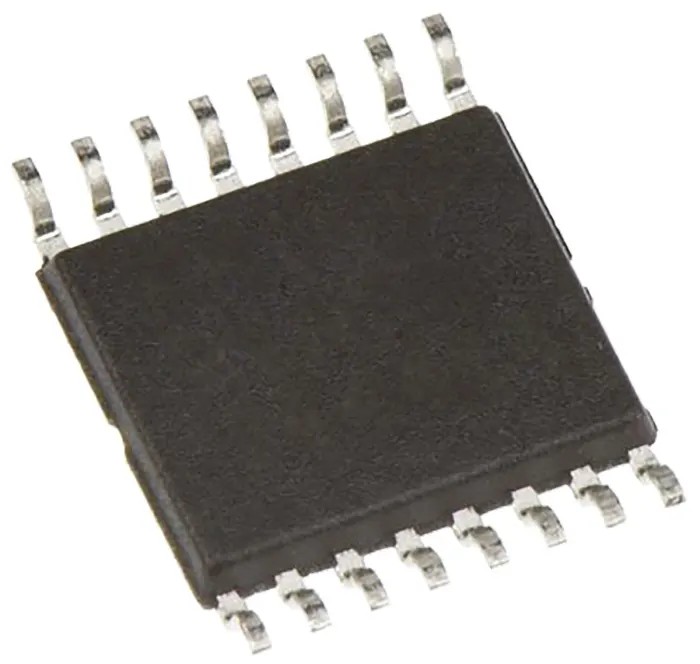

Texas Instruments Line Transceiver CMOS Inverting 16-Pin TSSOP MAX3221CPW

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Line Transceiver CMOS Inverting 16-Pin TSSOP MAX3221CPW

Name: Texas Instruments Line Transceiver CMOS Inverting 16-Pin TSSOP MAX3221CPW
Brand: Texas Instruments
SKU: 166240
Price: 2.07 USD
Availability: InStock



Category Line Interface ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	35mm
Length	853mm
Model	MAX3221CPW
Width	449mm
Mount Type	Surface
Output type	CMOS
Series	MAX3221
Input Type	Single Ended
Maximum Operating Temperature	70°C
Package Type	TSSOP
Minimum Operating Temperature	0°C
Polarity	Inverting
IC Type	Line Transceiver
Number Of Channels	1
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	CMOS/TTL
Logic Function	Line Driver, Converter, Driver
Minimum Supply Voltage	3V
Maximum High Level Output Current	60mA
Maximum Propagation Delay Time @ CL	150ns
Supply Current	1mA
Maximum Low Level Output Current	35mA

Key Features

Operates within a temperature range of 0°C to 70°C.
Single channel line transceiver suitable for RS-232 line driver and receiver applications.
Surface mount type with a compact TSSOP package.
Low supply current consumption of 1mA enhances energy efficiency.
Maximum propagation delay time of 150ns at capacitive load ensures fast signal transmission.
Inverting polarity output with CMOS output type.
Pin count of 16 pins facilitates integration into complex circuits.
No automotive standard compliance, focusing on general industrial use.

Product Description

Texas Instruments MAX3221CPW is a precision RS-232 line transceiver designed using CMOS technology, offering inverting logic functionality in a compact 16-pin TSSOP surface mount package. It features a single channel line driver and receiver converter optimized for reliable data transmission over RS-232 interfaces.

This component operates at a minimum supply voltage of 3V with a maximum rating of 5.5V and a low supply current of 1mA, making it suitable for power-sensitive industrial and electronic equipment designs. The device guarantees a maximum high-level output current of 60mA and a maximum low-level output current of 35mA, providing balanced performance for line interface signaling.

The MAX3221CPW offers fast signal switching with a maximum propagation delay time of 150 nanoseconds at capacitive load, supporting responsive communication in embedded and control systems. It is designed for operating temperatures ranging from 0°C to 70°C, catering to typical commercial and industrial environment conditions.

The line transceiver's pin configuration includes 16 pins arranged in a thin small outline package (TSSOP), enabling compact PCB layouts and easy surface mount assembly. Despite lacking automotive standard certification, this component is widely used for serial communication line interface IC needs in various industrial, manufacturing, and instrumentation applications.

CMOS/TTL logic family ensures compatibility with mixed logic circuits. Single ended input with CMOS output provides signal integrity and noise immunity. Surface mount TSSOP package reduces board space and improves manufacturability.

Typical applications include RS-232 line drivers and receivers in communication equipment. Compact size with dimensions approximately 35mm height, 449mm width, and 853mm length on data sheet (possibly erroneous, to be reviewed).

Choose the Texas Instruments MAX3221CPW line transceiver for robust, low-power, and efficient RS-232 data interface solutions in industrial and electronic systems. Explore EnvMart's Semiconductor category for related interface ICs and components.
