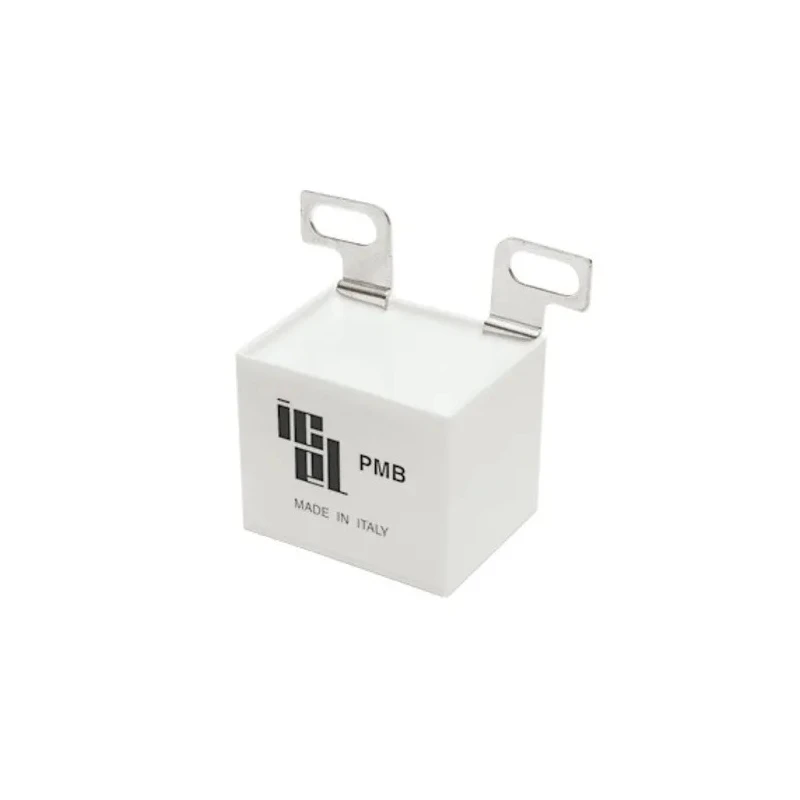

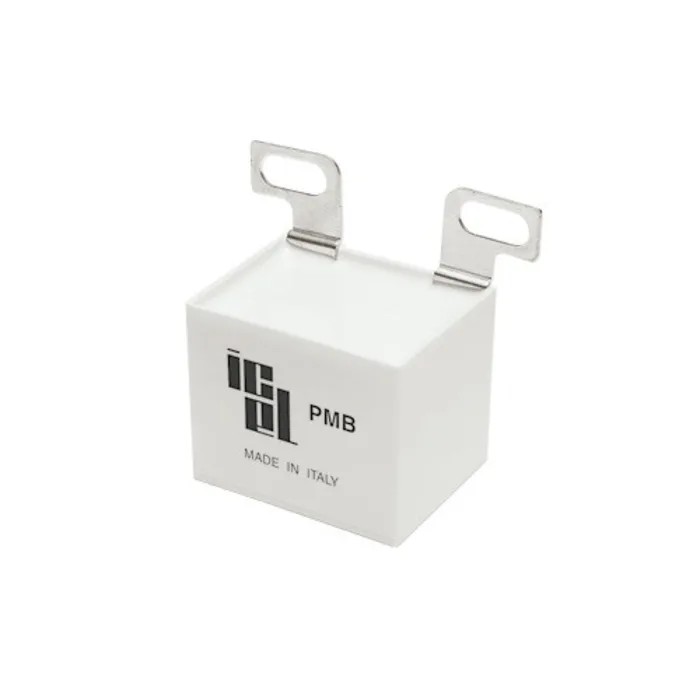

Icel PMB Polypropylene Capacitor ±10 % 680 nF 850 V DC 500 V AC Screw Mount PMB1853680KSP

Icel PMB1853680KSP is a high-quality polypropylene capacitor with a capacity of 680 nF and tolerance of ±10 %. It is rated for 850 V DC and 500 V AC voltage, making it suitable for demanding power and energy control applications.

Constructed with a screw mount for secure fitting, this capacitor features plastic packaging and solder lug terminals with an 11 mm lead pitch and 17.2 mm lead length. Its dimensions are 43 mm in length, 28 mm in height, and 17 mm in width.

The capacitor operates reliably within a temperature range of -40°C to 85°C and complies with automotive standard AEC-Q200 and RoHS requirements. Its low dissipation factor of 0.0005 % and low ESR of 3.5 mΩ contribute to improved efficiency and longevity.

This component is ideally used in switch-mode power supplies (SMPS), snubber circuits, and resonant circuits for IGBT module protection and energy conversion tasks in power semiconductor systems.

This capacitor features a polypropylene dielectric suitable for high voltage and high pulse applications. It supports operation in temperature ranges from -40°C to 85°C. The product includes solder lug terminal type with a lead pitch of 11 mm and lead length of 17.2 mm.

It is compliant with RoHS standards and meets the automotive AEC-Q200 quality standard. Designed primarily for use in SMPS, snubber, and resonant circuits. Plastic package/case with dimensions 43 mm length, 28 mm height, and 17 mm width.

Low dissipation factor of 0.0005 % and low equivalent series resistance ESR of 3.5 mΩ ensure efficiency and reliability. Discover Icel capacitors and other Electronic Components at EnvMart for high-performance, reliable electronic manufacturing and repair solutions.
