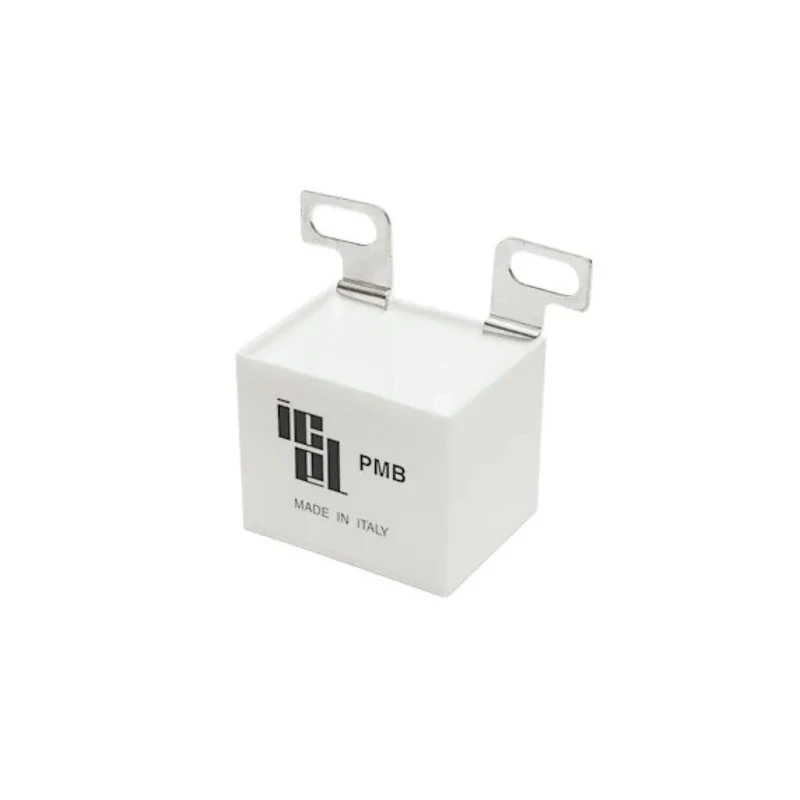

Icel PMB Polypropylene Capacitor 560 nF ±10 % 1.2 kV DC 500 V AC Screw Mount PMB2123560KSP

The Icel PMB2123560KSP polypropylene capacitor is a reliable electronic component designed with a capacitance of 560 nF and a tolerance of ±10 %. It supports high voltage operation with a rated DC voltage of 1.2 kV and an AC voltage rating of 500 V, making it suitable for heavy-duty industrial applications.

Mounted via a screw method, this capacitor is housed in a durable plastic case measuring 43 mm in length, 25 mm in width, and 28 mm in height. The lead pitch is set at 11 mm with solder lug terminals, facilitating efficient electrical connections.

This capacitor maintains excellent performance within a wide temperature range from -40°C up to 85°C. The equivalent series resistance of 3.7 mΩ and low dissipation factor of 0.0005% make it ideal for high pulse and high current applications, including snubber circuits, switching mode power supplies (SMPS), and resonant circuits in power semiconductor modules such as IGBTs.

The component conforms to the stringent AEC-Q200 automotive standard, ensuring it meets high reliability requirements for automotive electronics. Its RoHS certification ensures adherence to environmental safety standards.

Ideal for industrial, laboratory, construction, and power electronics manufacturing sectors, the Icel PMB2123560KSP polypropylene capacitor provides dependable energy conversion and control in demanding environments.

Capacitor features a screw mount type for secure installation. Rated for DC voltage of 1.2 kV and AC voltage of 500 V. Boasts low dissipation factor of 0.0005% for efficient energy use. Designed to operate between -40°C and +85°C ambient temperature.

Complies with AEC-Q200 automotive standard ensuring high reliability. Plastic package with dimensions 43 mm length, 25 mm width, and 28 mm height. Lead pitch measures 11 mm with solder lug terminal type for robust connectivity.

Equivalent Series Resistance (ESR) is 3.7 mΩ supporting high pulse applications. Suited for use in snubber circuits, SMPS protection, and power semiconductor control. RoHS compliant ensuring environmental safety. Explore a wide range of film capacitors and passive electronic components on EnvMart for diverse industrial and commercial electronics needs.
