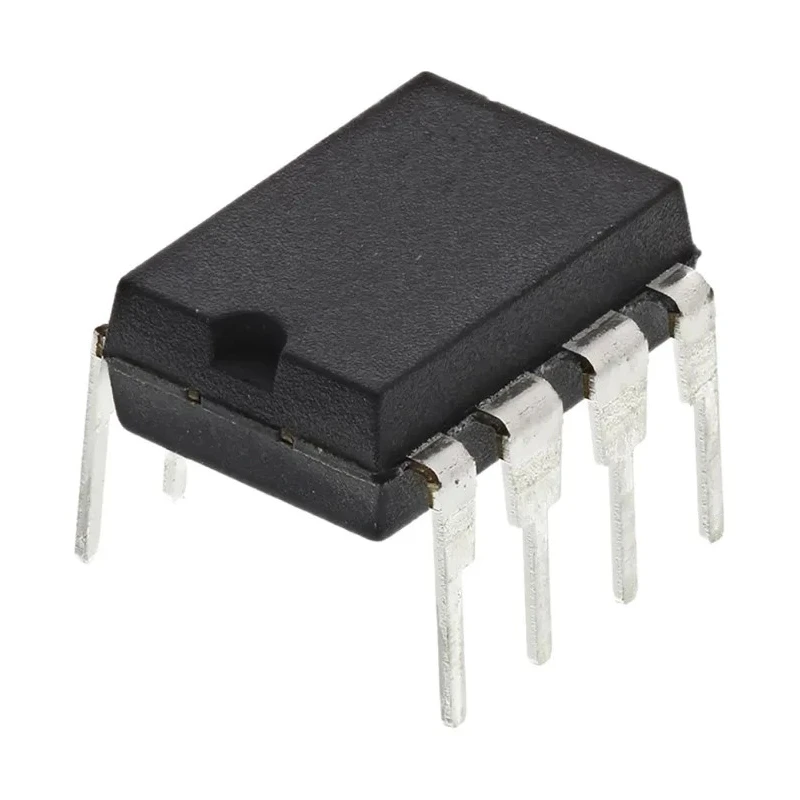

Texas Instruments Line Transceiver Differential Non-Inverting 8-Pin PDIP SN75LBC184P

Texas Instruments SN75LBC184P is a high-performance Line Transceiver IC featuring differential input and output with non-inverting polarity in a standard 8-pin PDIP package. Designed for robust data communication, it operates efficiently within a supply voltage range of 4.75V to 5.25V, making it ideal for industrial and embedded applications.

Its maximum propagation delay time of 150ns at capacitive load allows reliable data transfer in RS-485 networks and other serial communication links. The device supports a single channel line transceiver configuration, mounted through hole for straightforward PCB integration.

The operating temperature range from 0°C to 70°C ensures stable operation in various environmental conditions, including industrial and commercial equipment. With maximum low and high output currents of 60mA and -60mA respectively, the transceiver provides sufficient drive strength for standard bus communications.

Compact physical dimensions - 10.16mm length, 6.6mm width, and 5.08mm height - facilitate usage in space-constrained designs. The low supply current consumption of 25mA aids in power-sensitive applications, providing energy efficiency.

Operates with supply voltages from 4.75V to 5.25V. Non-inverting differential input and output interface. 8-pin PDIP through hole package for easy mounting. Maximum propagation delay of 150ns at capacitive load. Maximum output current of ±60mA for signal driving.

Supports single channel line transceiver applications. Operating temperature range 0°C to 70°C. Low supply current of 25mA for power efficiency. Compact size optimizes PCB layout. Used in RS-485 line driver and receiver applications.

This semiconductor device is suitable for diverse uses in electronic, industrial, and communication equipment, facilitating reliable and efficient signal transmission in differential signaling schemes.
