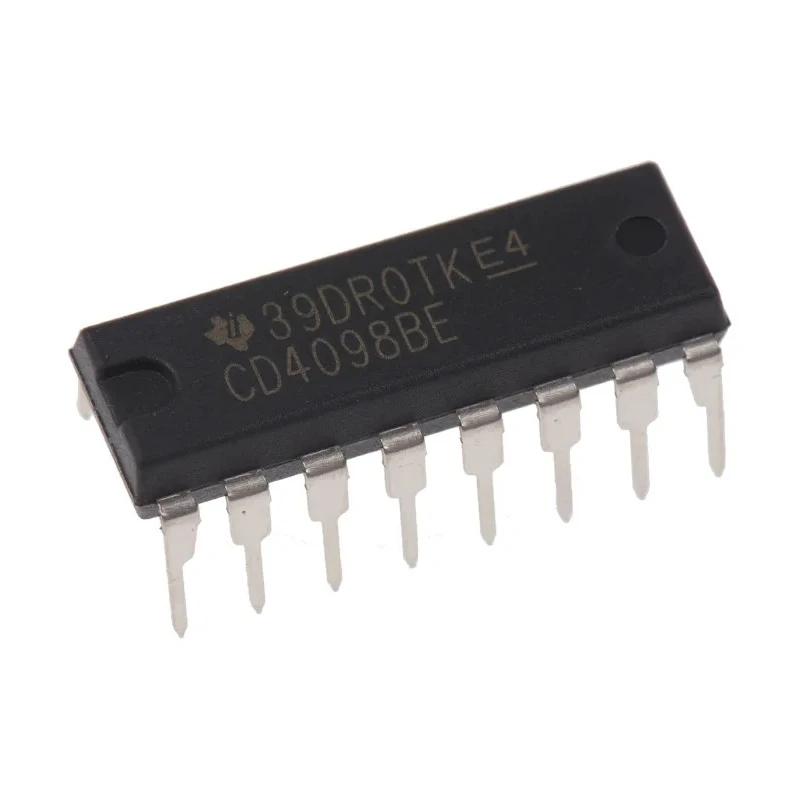

Texas Instruments Monostable Multivibrator 2 Elements 4000 Logic Family 16-Pin PDIP CD4098BE
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4098BE |
| Mount Type | Through Hole |
| Series | CD4098B |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -6.8mA |
| Maximum Propagation Delay Time @ CL | 500ns |
| Maximum Low Level Output Current | 6.8mA |
| Minimum Pulse Width | 20ns |
| Maximum Quiescent Current | 20μA |
| Multivibrator Type | Monostable Multivibrator |
| Wide operating voltage range | 3 to 18V |
Key Features
- Logic family is 4000 CMOS, suitable for various digital applications.
- Maximum high level output current is -6.8mA and low level output current is 6.8mA.
- Minimum pulse width achievable is 20ns providing fast switching times.
- Maximum quiescent current is 20μA ensuring low power consumption.
- Device uses through hole mounting with 16 pins in PDIP packaging.
- Operating temperature range from -55°C to 125°C allows use in harsh environments.
- Maximum propagation delay time at capacitive load is 500ns.
- Designed as a monostable multivibrator for pulse generation and timing applications.
Product Description
Texas Instruments CD4098BE is a monostable multivibrator from the 4000 series CMOS logic family. This device contains two monostable multivibrator elements in a 16-pin PDIP package. It operates over a wide voltage range from 3 V up to 18 V, making it suitable for a broad spectrum of electronic circuit designs requiring precise pulse generation and timing control.
This IC features a low quiescent current of 20μA, promoting energy-efficient designs. Its minimum pulse width is 20ns, and the propagation delay time is limited to 500ns under capacitive load conditions, ensuring reliable and fast switching performance.
The maximum output current ranges are ±6.8mA, allowing adequate drive capabilities for connected loads. With an operational temperature range from -55°C to 125°C, the CD4098BE can function reliably in various environmental conditions, including industrial and automotive applications that do not require automotive standard certification.
The device's through-hole mount and 16-pin PDIP form factor simplify prototyping and integration into printed circuit boards. It is ideal for use in industrial, laboratory, and electronic instrument applications where precise pulse timing and switching are essential.
Logic Family: 4000 CMOS. Number of Elements per Chip: 2. Package: 16-pin PDIP through-hole mount. Operating Voltage Range: 3 to 18 V. Maximum Propagation Delay: 500 ns. Operating Temperature Range: -55°C to 125°C. Maximum Output Current: ±6.8 mA.
This product is manufactured in Mexico and is provided new. It is suitable for electronic engineers, designers, and technicians requiring dependable monostable multivibrator ICs for their electronic applications.
Explore more Texas Instruments components and related electronic parts on EnvMart for your industrial, laboratory, and manufacturing needs.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a wide voltage range from 3 V up to 18 V, making it suitable for various electronic circuit designs.
The maximum propagation delay time at capacitive load is 500 ns, ensuring reliable switching performance.
The minimum pulse width achievable is 20 ns, allowing for fast switching times in applications.
The maximum high level output current is -6.8 mA and the maximum low level output current is 6.8 mA, providing adequate drive capabilities.
It can operate reliably in temperatures ranging from -55°C to 125°C, suitable for harsh environments.
This device contains two monostable multivibrator elements in a single package.
The CD4098BE uses through-hole mounting with a 16-pin PDIP package, simplifying integration into circuit boards.
The maximum quiescent current is 20 μA, promoting energy-efficient designs.
It belongs to the 4000 CMOS logic family, suitable for various digital applications.
The dimensions are 19.3 mm in length and 4.57 mm in height, fitting standard PDIP specifications.
This model is ideal for pulse generation and timing applications in industrial, laboratory, and electronic instruments.
This product is manufactured in Mexico, ensuring compliance with local manufacturing standards.
