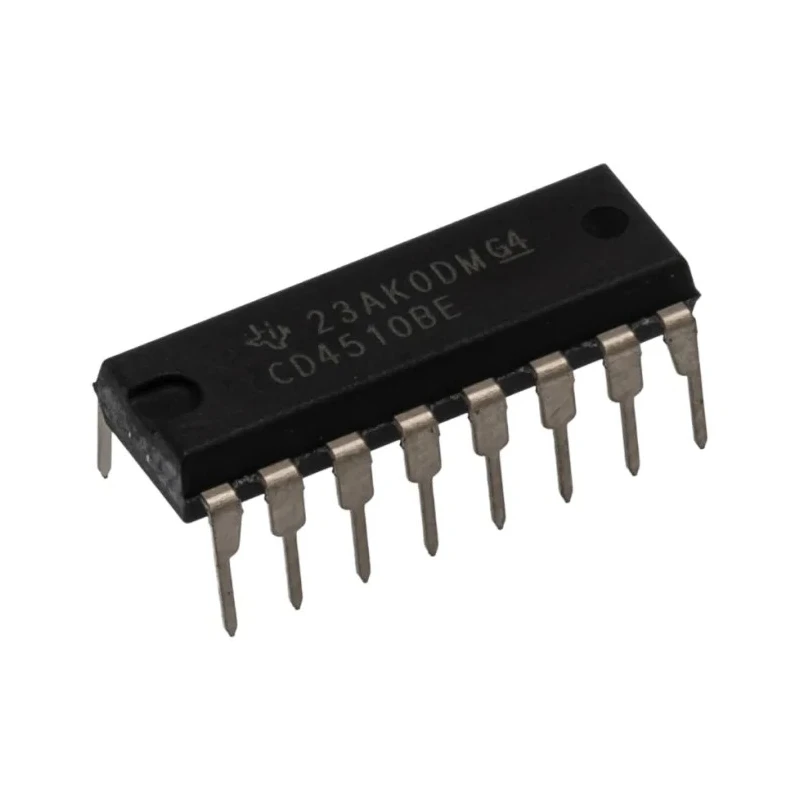

Texas Instruments 4-Stage Through Hole BCD Counter 4000 Series PDIP 16-Pin CD4510BE

Texas Instruments CD4510BE is a 4-stage BCD counter IC featuring a 16-pin PDIP through hole package, part of the 4000 Series CMOS Logic Family. It operates over a wide voltage range from 3V to 18V, making it suitable for diverse electronic circuit requirements and providing flexibility in power supply design.

The device supports synchronous reset and preset functions which allow precise control of count sequences. Its bi-directional counting capability enhances versatility in applications requiring up/down counting modes.

The counter IC clock frequency varies dependent on the supply voltage: at 10V it can handle up to 4 MHz, at 5V up to 2 MHz, and at 15V up to 5.5 MHz. This makes it suitable for timing and frequency measurement tasks in digital electronics and embedded system designs.

Designed for robustness, it operates reliably over an industrial temperature range from -55°C to 125°C. It also complies with RoHS environmental standards, ensuring safe and sustainable use in manufacturing.

The compact 16-pin PDIP package measures 19.69 mm in length and 4.57 mm in height, facilitating straightforward through-hole mounting on printed circuit boards for prototyping or production.

Wide operating voltage range from 3V to 18V supports diverse electronic designs. Synchronous reset and preset enable reliable and flexible counting operations. Bi-directional counting enhances application versatility in digital control systems.

Clock frequencies up to 5.5 MHz ensure high-speed counting capability at suitable voltages. Industrial temperature rating allows performance in harsh environments. RoHS compliant for environmentally responsible manufacturing.

Compact PDIP 16-pin package supports easy PCB integration.

This counter IC is well suited for applications in industrial electronics, laboratory instrumentation, embedded digital circuits, and other electronics requiring precise counting and timing control. It is a reliable and versatile device from Texas Instruments' renowned 4000 series.
