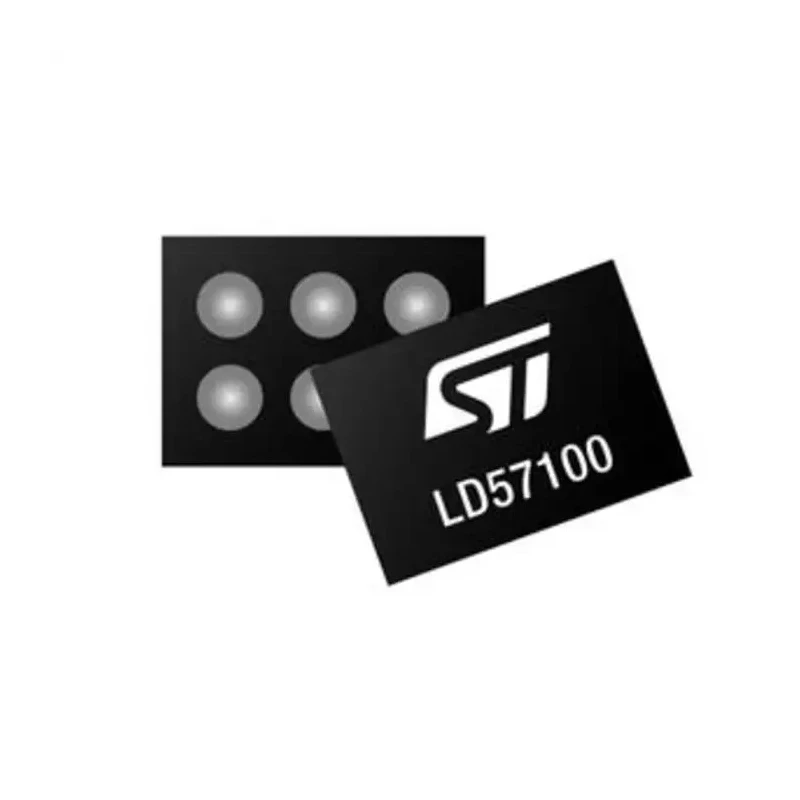

STMicroelectronics Regulator DFN 6-Pin Surface Mount Negative Polarity 1 A LD57100J800R
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | LD57100J800R |
| Mount Type | Surface |
| Series | LD57100 |
| Package Type | DFN |
| Polarity | Negative |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
Key Features
- Equipped with an NMOS pass transistor ensuring ultra-low dropout voltage of typically 40 mV at 1 A.
- Operates input voltage from VOUT to 5.5 V, with input bias supply pin from 3.0 V to 5.5 V.
- Features low ground current of 35 μA at no load for efficient power usage.
- Output voltage tolerance is ±1% over the full temperature range and tight ±0.5% at 25 °C.
- Compliant with RoHS standards and designed for negative polarity applications.
- Compact DFN package with 6 pins allows for space-saving surface mount design.
Product Description
STMicroelectronics LD57100J800R Voltage Regulator is a precision component designed for electronic and power management applications requiring stable voltage regulation with minimal power loss.
Encapsulated in a compact DFN 6-Pin surface mount package, this regulator delivers a maximum current of 1 A through an NMOS pass transistor with gate biasing for ultra-low dropout voltage performance.
The input voltage range from the output pin up to 5.5 V and supply pin voltage from 3.0 V to 5.5 V make it suitable for a broad range of low voltage electronic circuits and embedded systems.
Low ground current of just 35 μA at no load aids in reducing power consumption, making the LD57100J800R ideal for battery-powered and energy-sensitive applications.
Its output voltage accuracy of ±1% across temperature variations ensures reliable performance in demanding environments. The device meets RoHS compliance and is designed for negative polarity installations, common in industrial and automotive electronics.
Equipped with NMOS pass transistor ensuring ultra-low dropout voltage of 40 mV typical at 1 A load. Supports input voltage range from VOUT to 5.5 V and input bias supply from 3.0 V to 5.5 V. Low quiescent ground current of 35 μA enhances energy efficiency in low-power designs.
Output voltage tolerance maintained at ±1% over temperature, ±0.5% at room temperature. Compact DFN 6-Pin package for surface mount technology, optimizing PCB space utilization. Compliance with RoHS standards for environmental safety and regulatory adherence.
This regulator is suitable for industrial power management, telecommunications, automotive electronics, instrumentation, and consumer electronics, providing stable and efficient voltage regulation.
EnvMart offers this voltage regulator as part of our Power Management ICs category, tailored for electronic engineers and designers seeking reliable component solutions.
Explore more products in our Voltage Regulators category.
