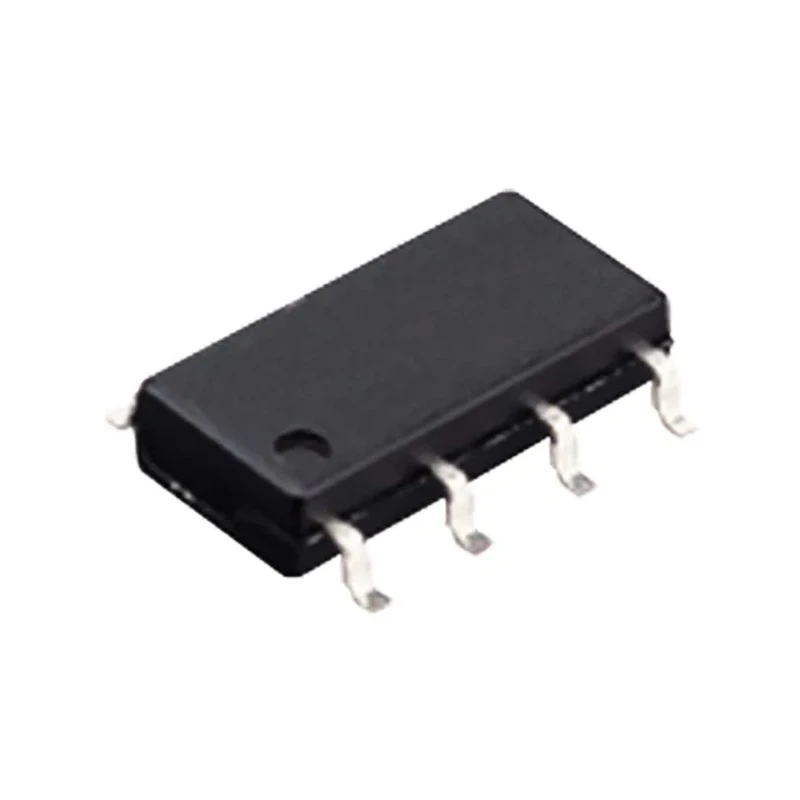

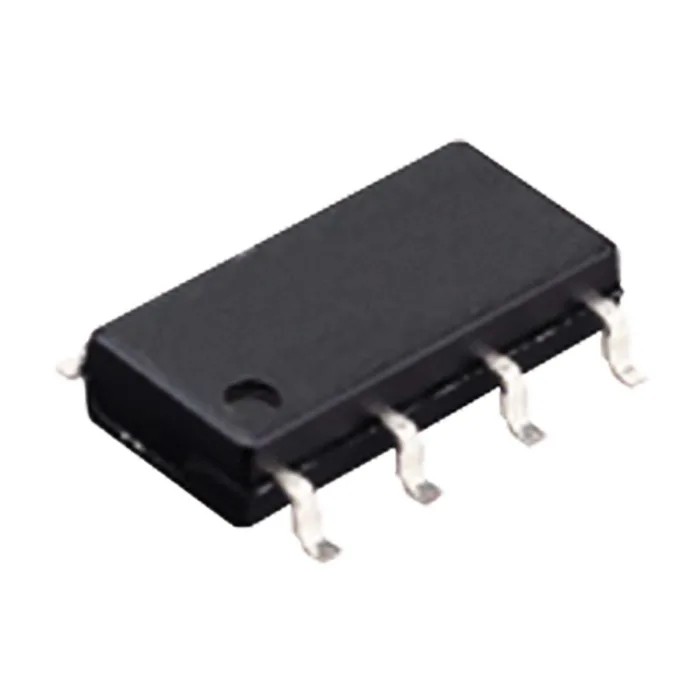

Panasonic PhotoMOS Series Solid State Relay 0.42 A Load 250 V Load Surface Mount AQW223R2S

Panasonic AQW223R2S PhotoMOS Series Solid State Relay is a high-quality surface mount relay designed for low-level analogue signal control in industrial and electronic applications.

This relay supports a maximum load current of 0.42 A and maximum load voltage of 250 V, making it suitable for controlling moderate power loads in both AC and DC circuits. It features a low on-state resistance of 15 ohms and exceptionally low off-state leakage current of 0.03 nA, making it energy efficient and reliable in signal switching.

The MOSFET output type ensures minimal switching losses and fast response times, ideal for accurate control in automation, manufacturing, and instrumentation industries. Its compact SOP8-pin package with through hole terminals allows easy integration on printed circuit boards, offering robustness against mechanical and environmental stresses.

Operating temperature range from -40°C to 85°C guarantees reliable performance in demanding environmental conditions common in industrial, laboratory, HVAC, and commercial equipment.

Low output capacitance of 40 pF reduces interference and supports fast switching for sensitive electronic control systems. Panasonic’s PhotoMOS relay complies with RoHS standards, ensuring adherence to environmental safety and quality requirements.

Supports maximum load current of 0.42 amperes. Rated for a maximum load voltage of 250 volts. Low on-state resistance of 15 ohms reduces power losses. MOSFET output type enables efficient switching. 2SPNO contact configuration for stable circuit operations.

Through hole terminal type ensures reliable mounting. AC/DC switching function for versatile applications. Operating temperature range of -40°C to 85°C for durability. Off-state leakage current of only 0.03 nanoamperes minimizes energy waste.

Low capacitance of 40 picofarads supports fast response. This solid state relay is ideal for industrial automation, control panels, signal conditioning, and other electrical equipment requiring precise electronic switching solutions.
