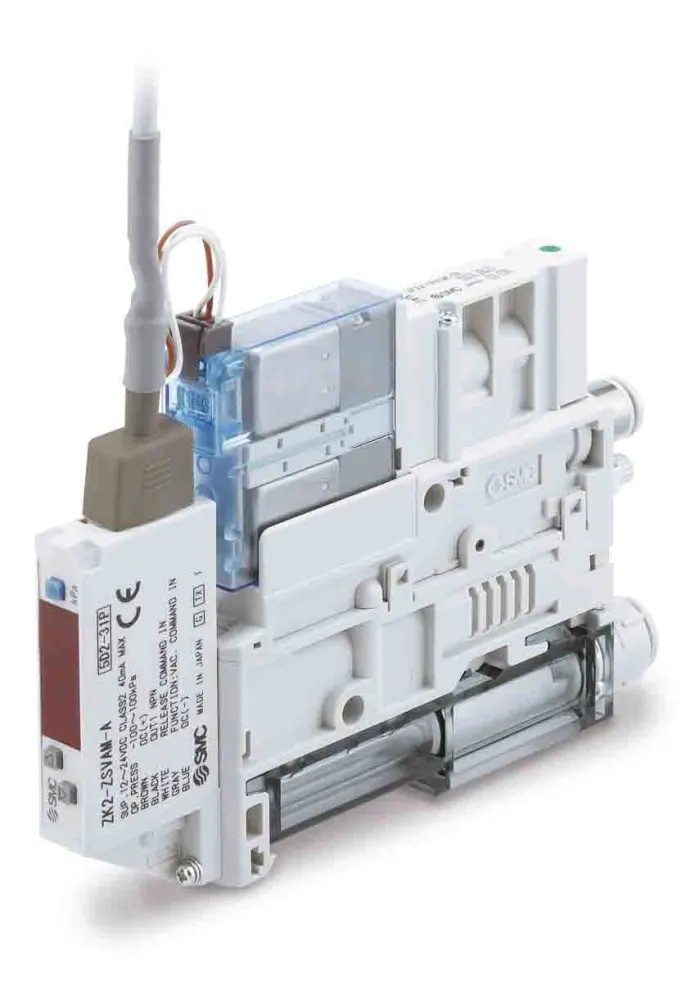

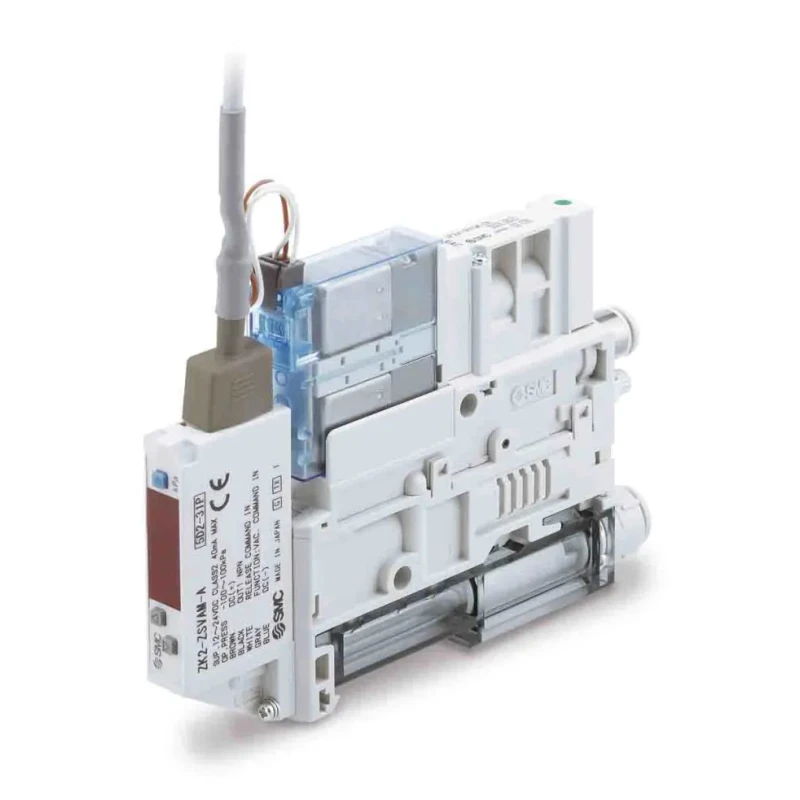

SMC Vacuum Generator for Use with ZK2 Series Vacuum Ejectors 24 VDC 59 dB Noise Level ZK2A07K5HLA-08

SMC ZK2A07K5HLA-08 Vacuum Generator is a compact pneumatic unit engineered for precise vacuum control, specifically designed to be used with ZK2 Series Vacuum Ejectors. Operating on a 24 VDC supply, this unit integrates a two-stage ejector with dual pilot-operated valves and an onboard digital pressure switch, offering accurate vacuum regulation for industrial automation tasks such as pick-and-place and robotics handling.

Featuring a maximum vacuum pressure of -91 kPa, it delivers strong suction force suitable for secure gripping. The supply pressure range of 0.3 to 0.6 MPa ensures stable and reliable operation under varied conditions. The air consumption rating of 24 l/min supports continuous and cyclic industrial use efficiently.

The vacuum generator is equipped with two configurable PNP output channels for simple and effective system signalling. Its repeatability is tight at ±0.2% F.S. ±1 digit, ensuring consistent detection and control over vacuum status. The noise output of 59 dB helps maintain quieter production environments by reducing acoustic disturbance.

Designed for robust industrial environments, it operates effectively within temperature ranges of −5°C to 50°C and withstands vibration up to 20 m/s² and shock resistance of 100 m/s². The vacuum port uses an ø8 one-touch metric fitting simplifying integration with existing pneumatic systems. The unit also includes a 30-micrometer element filter with a suction-filter area of 510 mm², enhancing durability and protecting internal components. It maintains an IP40 enclosure rating and proof pressure up to 500 kPa.

Typical applications include vacuum pick-and-place systems in electronics assembly lines, robotic end-of-arm tooling in machine tending, automated packaging transfer systems, component holding during soldering or inspection processes, and material handling with vacuum cups in mechanical workshops.

This product is manufactured in Japan and conforms to RoHS standards, ensuring compliance with environmental regulations. It is ideal for industrial, manufacturing, and automation sectors requiring reliable, precise vacuum generation.

Explore more Vacuum Generators and pneumatic components for enhanced industrial automation solutions available at EnvMart. Maximum vacuum pressure of -91 kPa ensures strong grip force. Supply pressure range from 0.3 to 0.6 MPa for stable operation.

Air consumption is 24 liters per minute to support continuous cycled use. Equipped with two PNP switch output channels for straightforward signalling. Repeatability of ±0.2% F.S. ±1 digit assures consistent vacuum detection.

Noise level minimized to 59 dB to reduce acoustic impact in production areas. Operates between −5 and 50 degrees Celsius with high vibration and shock resistance. Vacuum port accepts ø8 one-touch metric fitting for easy installation.

Includes 30 micrometer element filter and suction-filter area of 510 mm² for safety and filtration.
