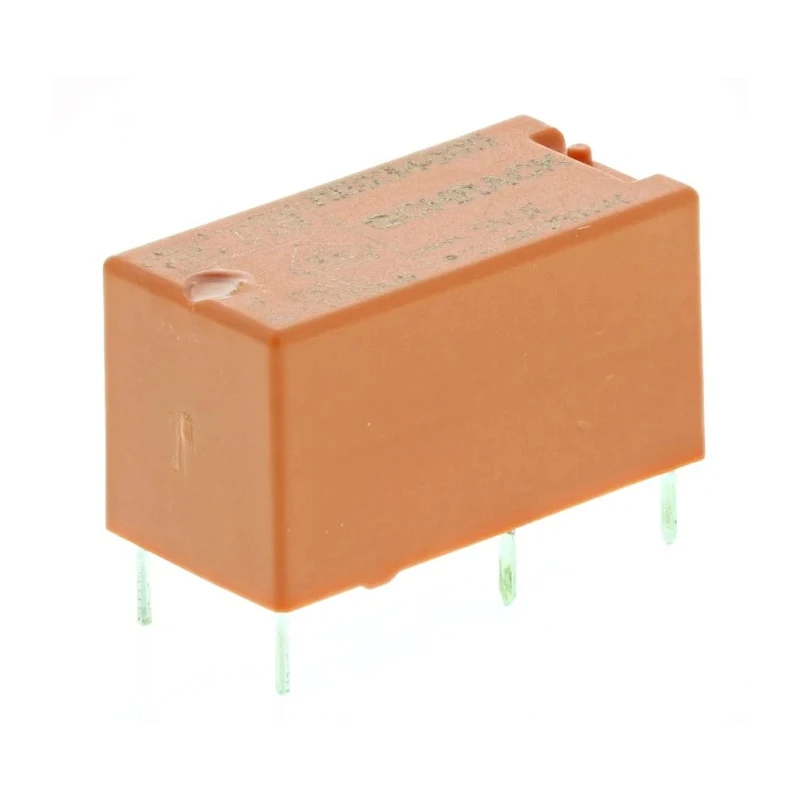

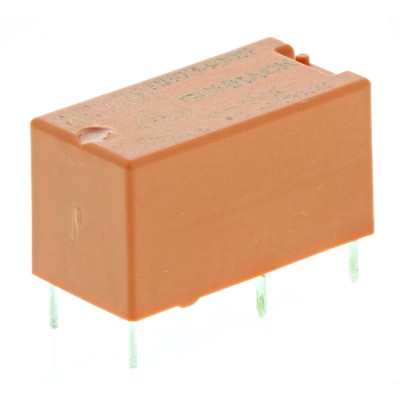

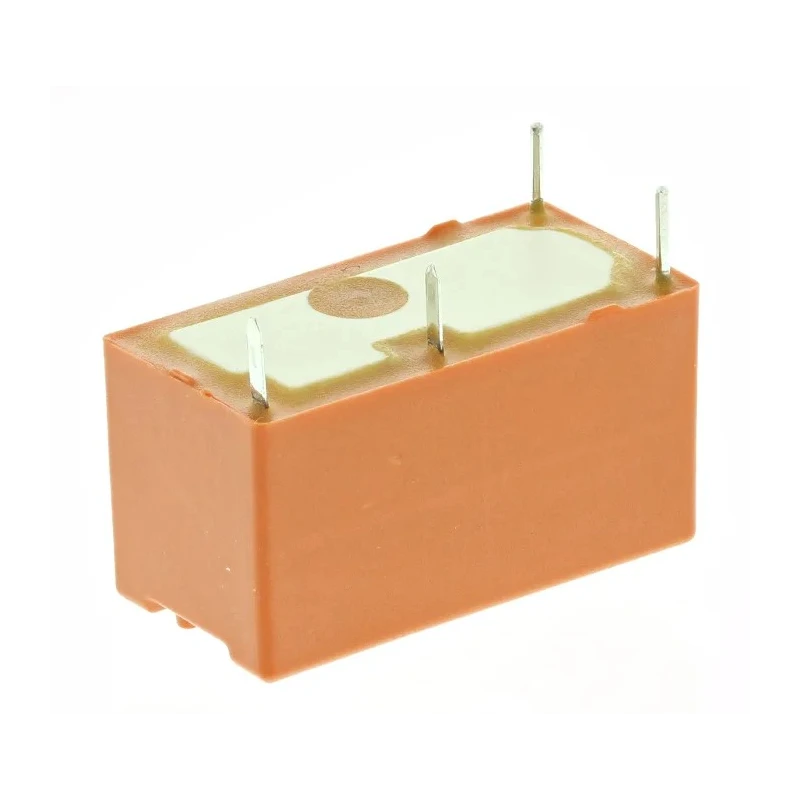

TE Connectivity PCB Power Relay 5V DC Coil 6A Switching Current SPST RE034005
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10.6mm |
| Length | 20mm |
| Model | RE034005 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RE |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
Key Features
- This relay operates with a sensitive coil power of 200mW.
- It supports switching AC voltage up to 400V AC and switching power of 1.5kVA.
- Constructed with silver alloy contact material for reliable conductivity.
- The RE series relay has a coil resistance of 125Ω with solder terminal type.
- Operating temperature ranges from -40°C to 70°C ensuring durability in various environments.

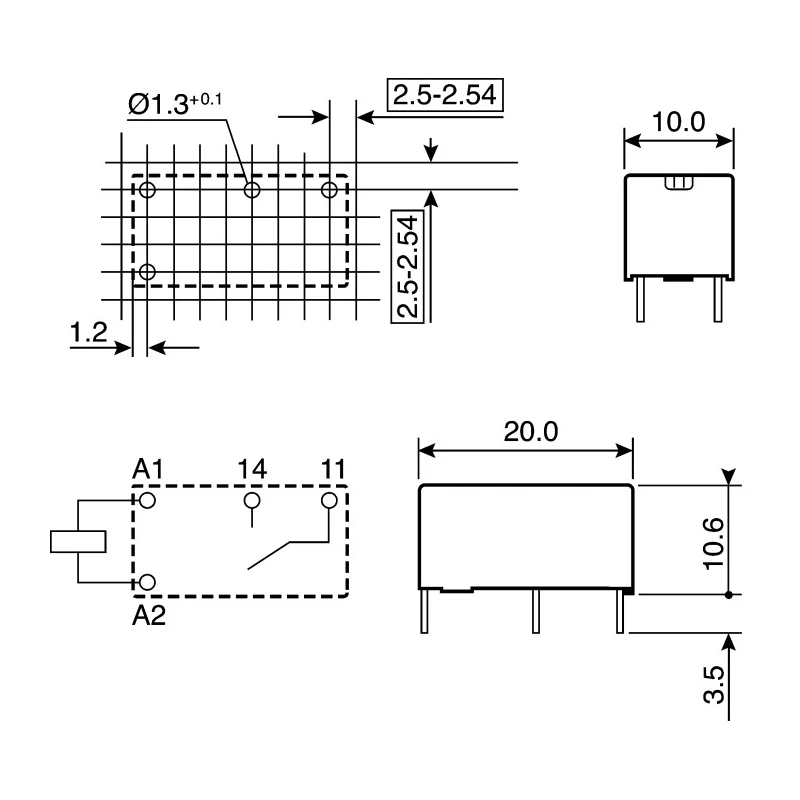

- Compact physical dimensions measuring 10.6mm height, 20mm length, and 10mm width.
- Ideal for applications including PLCs, timers, temperature controls, I/O cards, and white goods.
Product Description
TE Connectivity RE034005 PCB Power Relay is designed for industrial and electronic automation applications requiring reliable switching. Featuring a 5V DC coil and a robust 6A switching current with SPST contact configuration, this relay suits use in printed circuit board (PCB) mounting scenarios.
The RE series relay operates at coil power of 200mW and coil resistance of 125Ω, ensuring sensitive and efficient operation. It supports switching AC voltages up to 400V AC with a switching power rating of 1.5kVA, making it suitable for a variety of control applications.
Constructed with silver alloy contacts, it guarantees dependable electrical conductivity and long service life. The relay comes with solder terminal types for secure PCB connections and is compliant with RoHS standards.
With an operating temperature range from -40°C to 70°C, and physical dimensions of 10.6mm (height) by 20mm (length) by 10mm (width), it is compact and robust enough for various industrial and commercial electronics.
This relay is commonly used in programmable logic controllers (PLCs), timers, temperature control systems, input/output cards, and household white goods. It supports creapage and clearance of 4mm with UL94V-0 flammability class rating, contributing to safety and reliability.
This relay operates with a sensitive coil power of 200mW. It supports switching AC voltage up to 400V AC and switching power of 1.5kVA. Constructed with silver alloy contact material for reliable conductivity. The RE series relay has a coil resistance of 125Ω with solder terminal type.
Operating temperature ranges from -40°C to 70°C ensuring durability in various environments. Compact physical dimensions measuring 10.6mm height, 20mm length, and 10mm width. Ideal for applications including PLCs, timers, temperature controls, I/O cards, and white goods.
TE Connectivity’s RE034005 offers assured performance for industrial, automation, HVAC, manufacturing, and electronic system integration requirements. Explore more Relays & Contactors and Power Relay products on EnvMart for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 6A.
This model operates with a coil voltage of 5V DC.
The relay measures 10.6mm in height, 20mm in length, and 10mm in width.
It supports switching AC voltages up to 400V AC.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The coil power rating is 200mW.
It operates within a temperature range of -40°C to 70°C.
The contacts are constructed from silver alloy, ensuring reliable conductivity.
This relay is designed for PCB mounting with solder terminal types.
Yes, it is compliant with RoHS standards.
The coil resistance is 125Ω.
