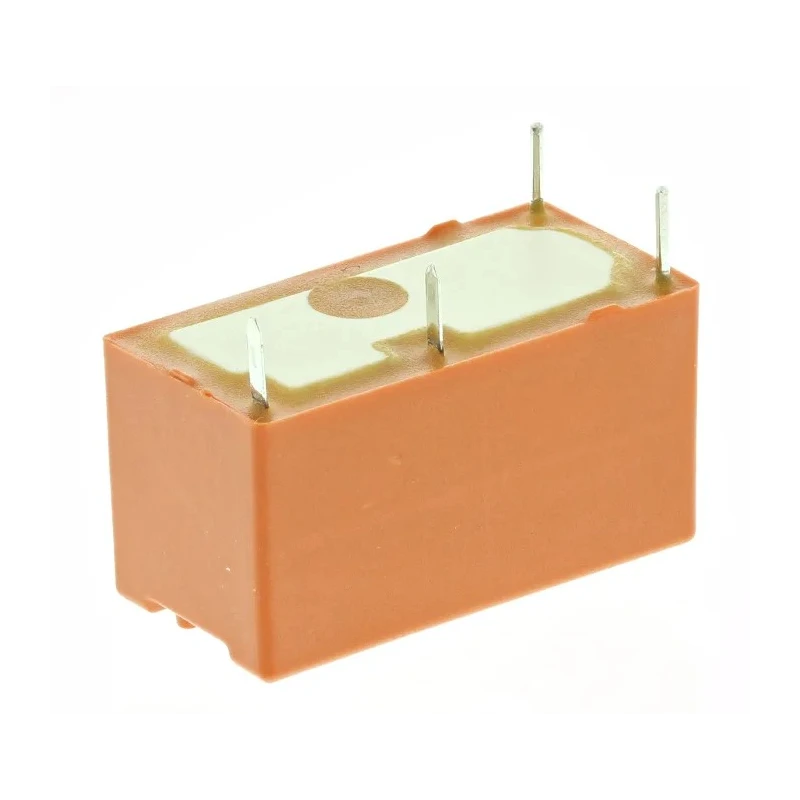

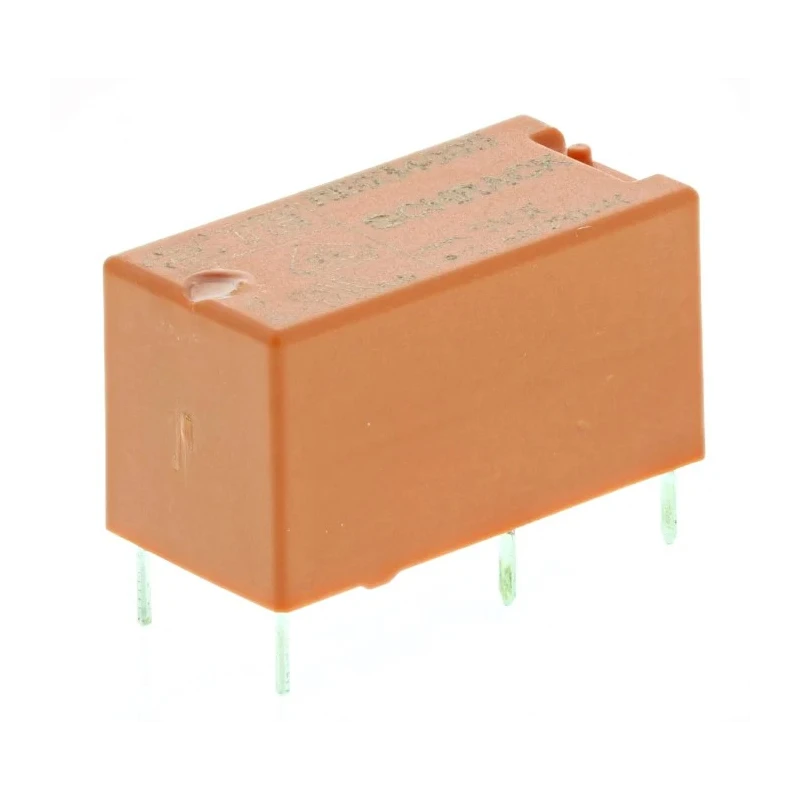

TE Connectivity PCB Power Relay 5V dc Coil 6A Switching Current SPST RE034005

TE Connectivity RE034005 PCB Power Relay features a 5V dc coil and a 6A switching current capability in a single-pole single-throw (SPST) contact configuration. This power relay is designed for reliable operation in electrical and industrial applications requiring compact and efficient switching solutions.

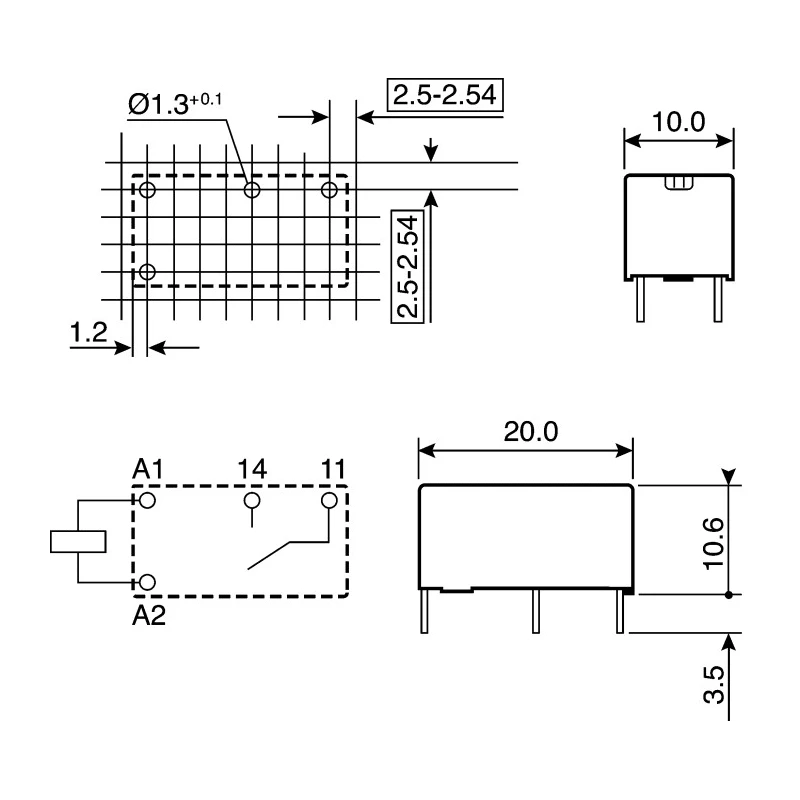

The relay utilizes a sensitive coil consuming only 200mW power with a coil resistance of 125Ω. Its compact dimensions of 20mm length, 10.6mm height, and 10mm width make it well-suited for PCB mounting with solder terminals, ensuring secure and stable electrical connections on printed circuit boards.

Constructed with silver alloy contacts, the relay provides excellent electrical conductivity and durability under switching loads. It supports a switching AC voltage of up to 400V ac and can handle switching currents up to 6A, making it compatible with a variety of control systems, including programmable logic controllers (PLCs), timers, temperature control systems, I/O cards, and white goods.

The operating temperature range spans from -40°C to 70°C, allowing reliable performance in demanding environments across industrial and automation sectors. The product is also RoHS compliant, reflecting adherence to environmental and safety standards.

Manufactured in the Czech Republic, the RE series relay represents TE Connectivity’s commitment to quality and precision engineering. This relay is ideal for industrial automation, electrical controls, manufacturing equipment, HVAC systems, and other commercial and industrial applications requiring dependable electrical switching components.

Operates with a coil voltage of 5V dc for efficient power consumption. Switching current capacity of 6A suitable for moderate load applications. Compact size with dimensions 20mm length, 10.6mm height, and 10mm width. Silver alloy contact material ensures excellent conductivity and durability.

PCB mount type with solder terminal for secure connections. Coil resistance is 125Ω and coil power consumption is 200mW. Minimum and maximum operating temperatures range from -40°C to 70°C. Switching AC voltage capability of 400V ac supports versatile applications.

Complies with RoHS standards ensuring environmental safety. Manufactured in the Czech Republic with high-quality production standards.

For additional technical resources including 3D models, schematics, and compliance certificates, TE Connectivity offers extensive support to facilitate design integration and application development. Browse the Power Relay category at EnvMart for more high-quality industrial relays and components.
