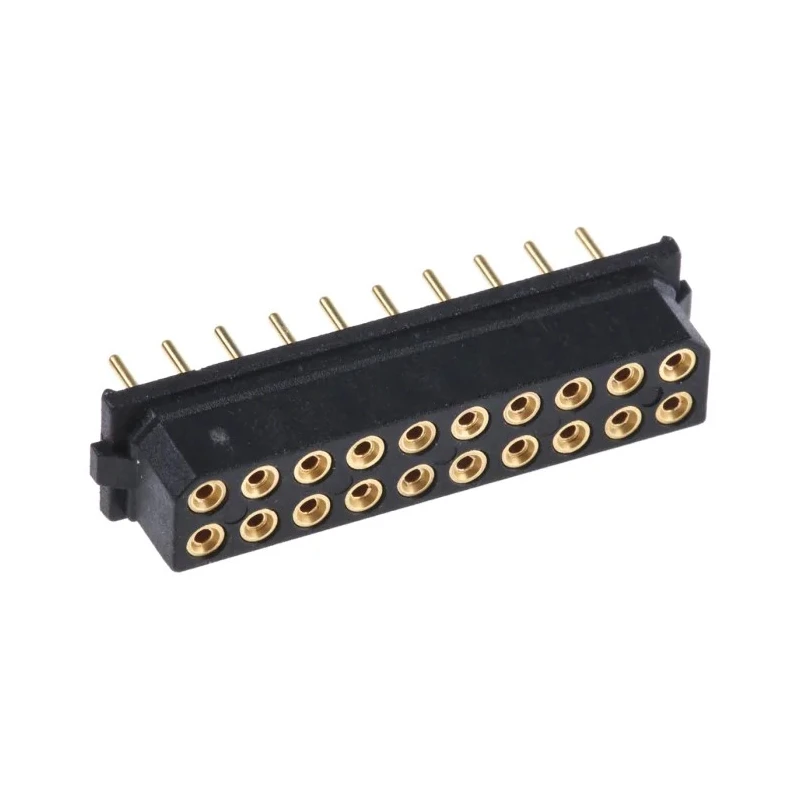

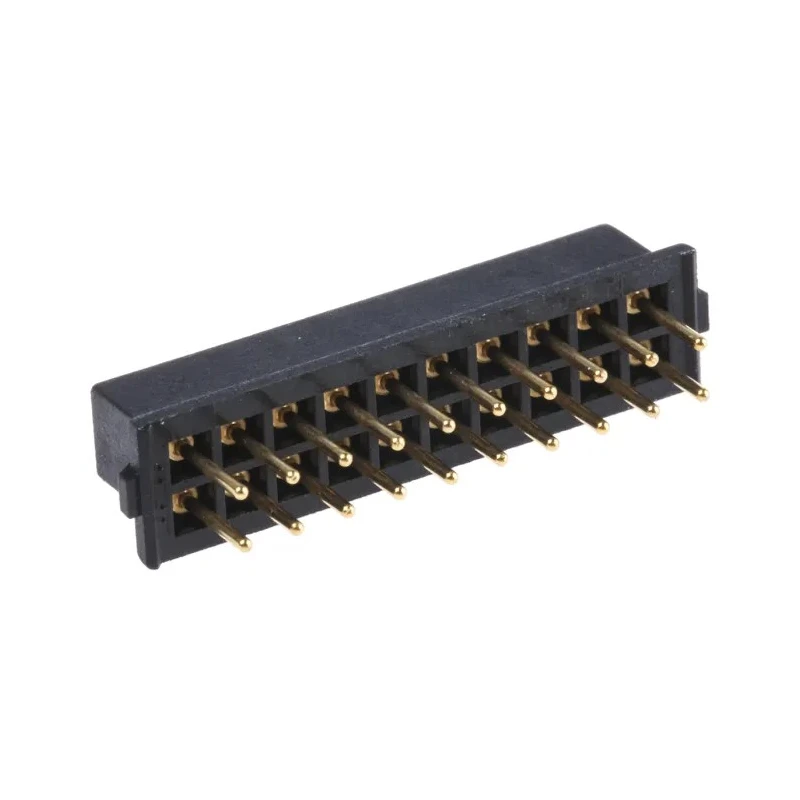

HARWIN M80 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 12A Current, 120V Voltage M80-8502045
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M80-8502045 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass, Beryllium Copper Alloy |
| Series | M80 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a straight orientation for through-hole mounting on PCBs.
- Supports current up to 12 amperes at 120 volts.
- Constructed with a nylon housing ensuring durability and electrical insulation.
- Contacts are made from brass and beryllium copper alloy with gold plating for enhanced conductivity and corrosion resistance.
- Operates reliably within a temperature range of -55°C to 125°C.
- Utilizes a 4-finger beryllium copper contact design for high-reliability connections under vibration and shock.
- Polarised mouldings ensure proper mating and alignment.
- Complies with BS9525-F0033, MIL C 55302, and CEC 75101-008 standards.
Product Description
HARWIN M80-8502045 Straight Through Hole PCB Socket is an industrial-grade connector designed to provide reliable board-to-board connections in demanding environments. This 20-contact, 2-row socket offers a 2 mm pitch and solder termination type, suitable for a wide range of electronic assembly applications.
The socket features a robust nylon housing material that ensures durability and excellent electrical insulation. Contacts are composed of brass and beryllium copper alloy plated with gold, providing superior electrical performance and corrosion resistance even under harsh conditions.
Designed to operate between -55°C and 125°C, this connector supports a current rating of 12A and voltage up to 120V. Harwin’s unique four-finger beryllium copper contact ensures a high integrity connection, making this socket ideal for environments experiencing vibration, shock, and acceleration.
Polarised mouldings guarantee correct orientation and secure mating with complementary connectors. The M80 series sockets conform to several international standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, ensuring compatibility and safety in high-reliability applications.
This product is manufactured in the United Kingdom, reflecting Harwin’s commitment to quality and precision engineering. Its versatility and durability make it suitable for industrial electronics, aerospace, military, and other commercial applications where reliable PCB connections are critical.
Features straight through hole mounting for secure PCB connections. Nylon housing provides mechanical strength and electrical insulation. Gold plated brass and beryllium copper alloy contacts enhance corrosion resistance.
Supports currents up to 12 amperes and voltages up to 120 volts. Wide operating temperature range from -55°C to 125°C. Complies with BS9525-F0033, MIL C 55302, and CEC 75101-008 standards. Polarised mouldings prevent incorrect mating.
High reliability four-finger contact design for vibration and shock resistance. Part of the M80 series, suitable for board-to-board connection systems. Manufactured in the United Kingdom with strict quality controls. Explore more high-performance PCB Sockets and connectors from HARWIN on EnvMart to support your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 12 amperes and a voltage rating of 120 volts.
It operates reliably within a temperature range of -55°C to 125°C.
The contacts are made from brass and beryllium copper alloy, with gold plating for enhanced conductivity and corrosion resistance.
This unit features 20 contacts arranged in 2 rows.
It features a straight through hole mounting type for secure PCB connections.
The contact pitch for this socket is 2 mm.
Yes, it complies with BS9525-F0033, MIL C 55302, and CEC 75101-008 standards.
The housing is constructed from nylon, providing mechanical strength and electrical insulation.
It utilizes a four-finger beryllium copper contact design, which ensures high-reliability connections under vibration and shock.
This model uses a solder termination type for secure connections.
It is part of a board-to-board connector system, suitable for various electronic assembly applications.
This product is manufactured in the United Kingdom, reflecting strict quality controls.
