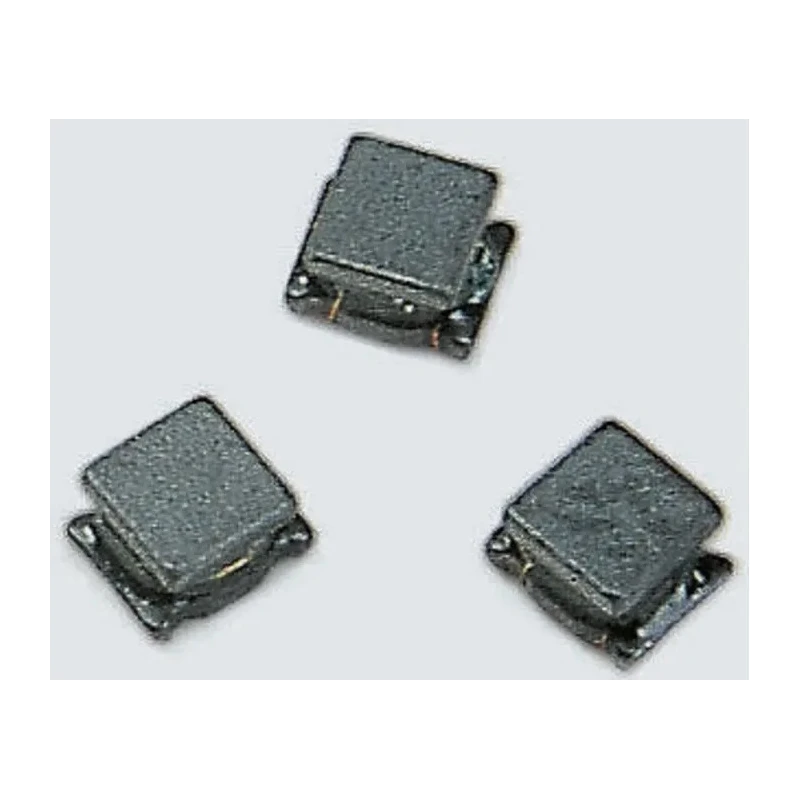

Murata Wirewound Surface Mount Inductor 1812 Package 820 μH ±5% 60 mA DC Current Ferrite Core LQH43MN821J03L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 2.6mm |
| Length | 4.5mm |
| Model | LQH43MN821J03L |
| Depth | 3.2mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 820μH |
| Standards/Approvals | RoHS |
| Package/Case | 1812 |
| Maximum DC Current | 60mA |
| Pin Count | 2 |
| Maximum DC Resistance | 20.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 2.2MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a ferrite core optimized for high frequency performance.
- It supports a maximum DC current of 60 mA, suitable for low current applications.
- Wirewound construction ensures stable inductance and low DC resistance of 20.5 Ω.
- Operates reliably between -40°C and 85°C operating temperature range.
- Solder termination style for surface mount technology compatibility.
- Maximum self-resonant frequency of 2.2 MHz with a minimum quality factor of 40.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
- Package supplied in embossed tape for automated assembly processes.
Product Description
Murata LQH43MN821J03L Wirewound Surface Mount Inductor is designed for industrial and electronic applications requiring stable inductance performance in a compact form. The 1812 package size allows for PCB space optimization.
This inductor utilizes a ferrite core combined with wirewound construction to provide a high quality factor and low DC resistance, making it ideal for filtering and energy storage in power supply circuits.
With a maximum DC current rating of 60 mA and operating temperatures from -40°C to 85°C, it is suitable for a wide range of environments including industrial controls, telecommunications, and consumer electronics.
The solder termination style ensures reliable mounting on surface mount technology (SMT) assemblies, and the device is supplied on embossed tape reel packaging compatible with automated placement machines.
It features RoHS compliance for environmental safety and is manufactured in Japan, reflecting high manufacturing standards. The inductor features a ferrite core optimized for high frequency performance. Supports up to 60 mA maximum DC current with low DC resistance of 20.5 Ω.

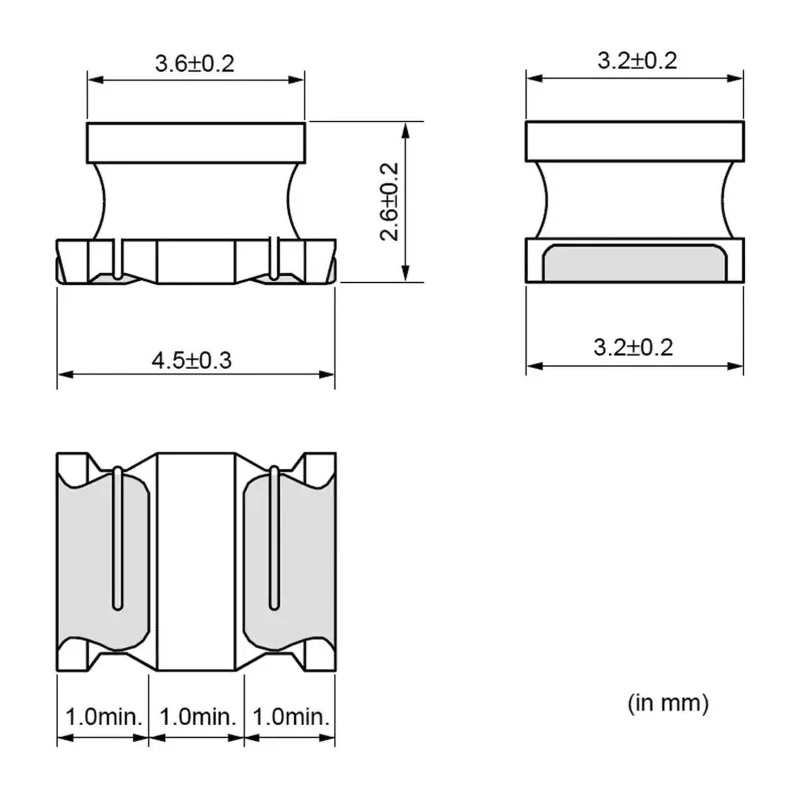

Compact 1812 package dimensions with length 4.5 mm, height 2.6 mm, depth 3.2 mm. Wide operating temperature range from -40°C to 85°C suitable for harsh environments. Minimum quality factor of 40 and maximum self-resonant frequency of 2.2 MHz.
Solder termination style for SMT assembly compatibility. RoHS compliant ensuring eco-friendly manufacturing standards. Embossed tape packaging facilitates automated assembly processes. Manufactured in Japan, guaranteeing quality and reliability.
This Murata LQH43MN821J03L inductor is widely used in industrial electronics, telecommunications, and power management applications, offering dependable performance in highly compact designs. Explore similar high-quality Surface Mount Inductors in the Electronics Components category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 820 μH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 60 mA.
The dimensions of the 1812 package are 4.5 mm in length, 2.6 mm in height, and 3.2 mm in depth.
The maximum self-resonant frequency is 2.2 MHz.
It operates reliably within a temperature range of -40°C to 85°C.
The inductor features a ferrite core optimized for high frequency performance.
The maximum DC resistance is 20.5 Ω.
It has a solder termination style, making it compatible with surface mount technology (SMT).
The inductor is supplied in embossed tape packaging, suitable for automated assembly processes.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
The minimum quality factor is 40.
This inductor is manufactured in Japan.
