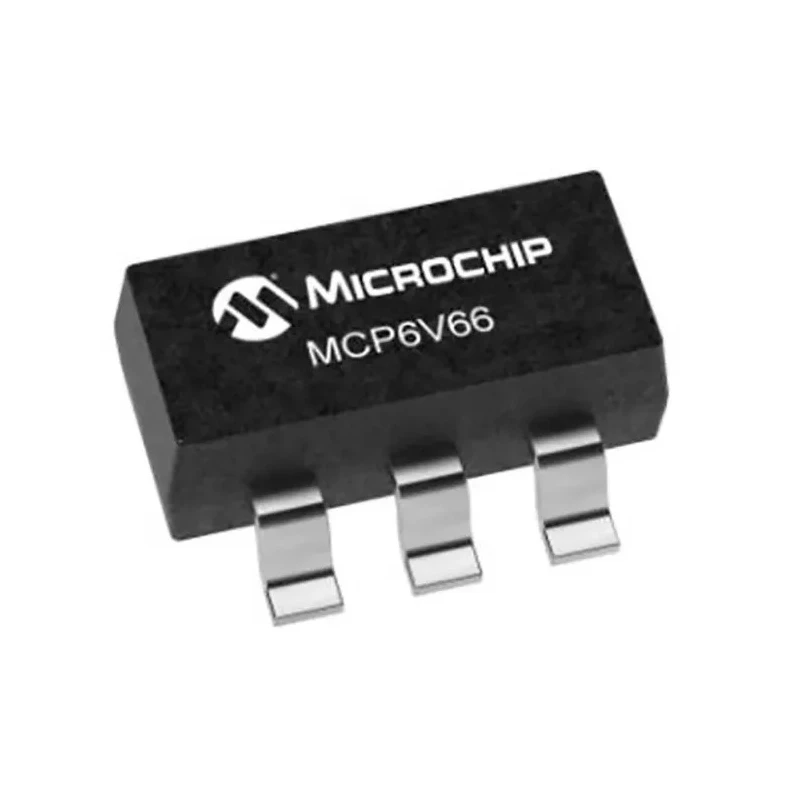

Microchip 1 MHz Gain Bandwidth Product Operational Amplifier Surface Mount 5-Pin 5.5V MCP6V66T-E/OT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | MCP6V66T-E/OT |
| Width | 2.8mm |
| Mount Type | Surface |
| Series | MCP6V66 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 50 pA |
| Slew Rate | 0.45V/μs |
| Input Offset Current | 200 pA |
Key Features
- Designed using advanced CMOS process for high DC precision.
- Input offset voltage correction for very low offset and offset drift.
- Supports operating temperature range from -40°C to +125°C.
- Offers 0.45 V/μs slew rate and 30 mA maximum output current.
- Compact dimensions of 2.9mm length, 2.8mm width, and 1.45mm height.
- Low input bias current of 50 pA and input offset current of 200 pA.
- Single, dual, and quad package options available in the MCP6V66 series.
- Enhanced electromagnetic interference protection for reliable performance.
Product Description
Microchip MCP6V66T-E/OT is a high-performance operational amplifier featuring a 1 MHz gain bandwidth product and a surface mount 5-pin package optimized for compact electronic designs. Operating over a wide temperature range from -40°C to +125°C, this device provides excellent stability and precision for industrial, laboratory, and commercial electronics applications.
Manufactured with an advanced CMOS process, the amplifier incorporates input offset voltage correction to minimize offset and drift, ensuring accurate signal amplification. It is suitable for use in power and signal conditioning circuits requiring low bias currents and high output drive capability.
The device features a slew rate of 0.45 V/μs and can deliver up to 30 mA output current, making it well-suited for driving moderate loads. The compact package dimensions (2.9mm length, 2.8mm width, and 1.45mm height) support dense PCB layouts and surface mount technology manufacturing.
Additional specifications include a maximum supply voltage of 5.5 V and a minimum supply voltage of 1.8 V, allowing flexible power arrangements. Input bias and offset currents are minimized to 50 pA and 200 pA respectively, contributing to low noise and high accuracy in sensitive analog circuits.
Advanced CMOS technology for enhanced precision and reliability. Input offset correction reduces voltage deviation and drift. Wide operating temperature suitable for automotive and industrial environments. Compact 5-pin surface mount package for easy PCB integration.
High output current capacity for driving various load types. Low input bias and offset currents for superior signal integrity. Gain bandwidth product of 1 MHz ideal for medium frequency amplification. Part of the MCP6V66 series offering multiple channel configurations.
This Microchip operational amplifier is ideal for applications in industrial instrumentation, communication equipment, test and measurement instruments, automotive systems, and consumer electronics where stable and precise analog signal processing is required.
Explore more Microchip semiconductors and Operational Amplifiers at EnvMart to meet diverse electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6V66T-E/OT has a gain bandwidth product of 1 MHz, making it suitable for medium frequency amplification applications.
It can deliver a maximum output current of 30 mA, allowing it to drive moderate loads effectively.
The device operates over a wide temperature range from -40°C to +125°C, making it suitable for various environments including automotive and industrial applications.
This operational amplifier has compact dimensions of 2.9 mm in length, 2.8 mm in width, and 1.45 mm in height, facilitating easy integration into dense PCB layouts.
The operational amplifier supports a minimum supply voltage of 1.8 V and a maximum supply voltage of 5.5 V, allowing for flexible power arrangements.
It features a slew rate of 0.45 V/μs, which is important for applications requiring fast signal response.
This model is part of the MCP6V66 series, which includes 8 channels, providing versatility for various circuit designs.
The input bias current is 50 pA, and the input offset current is 200 pA, contributing to low noise and high accuracy in analog signal processing.
It is designed for surface mount applications, which is ideal for modern electronic manufacturing processes.
This operational amplifier is suitable for industrial instrumentation, communication equipment, test and measurement instruments, automotive systems, and consumer electronics.
The device is manufactured using an advanced CMOS process, which enhances its precision and reliability in various applications.
Yes, it incorporates input offset voltage correction to minimize offset and drift, ensuring accurate signal amplification.
