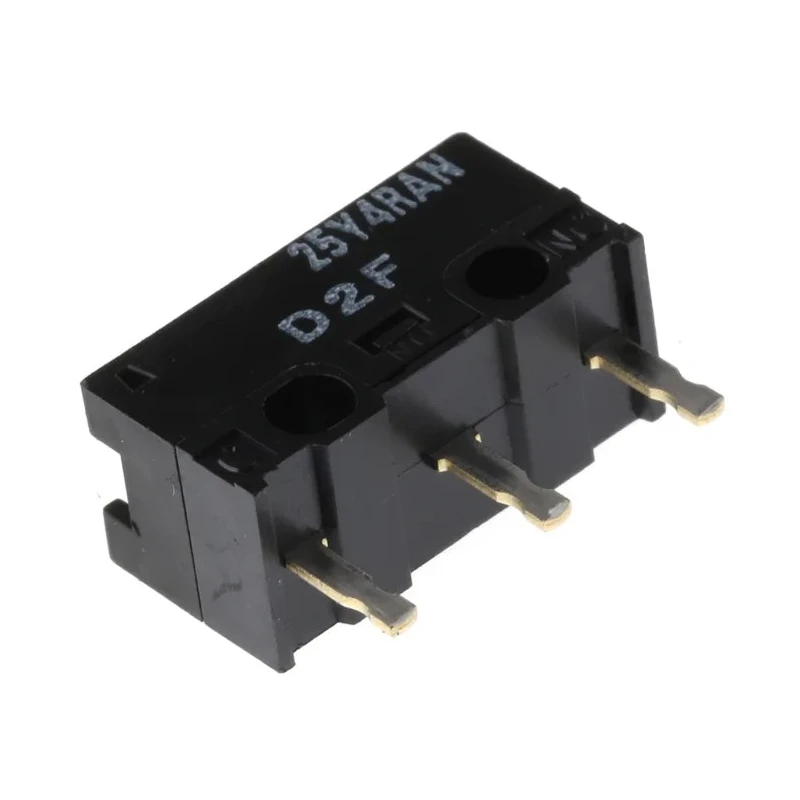

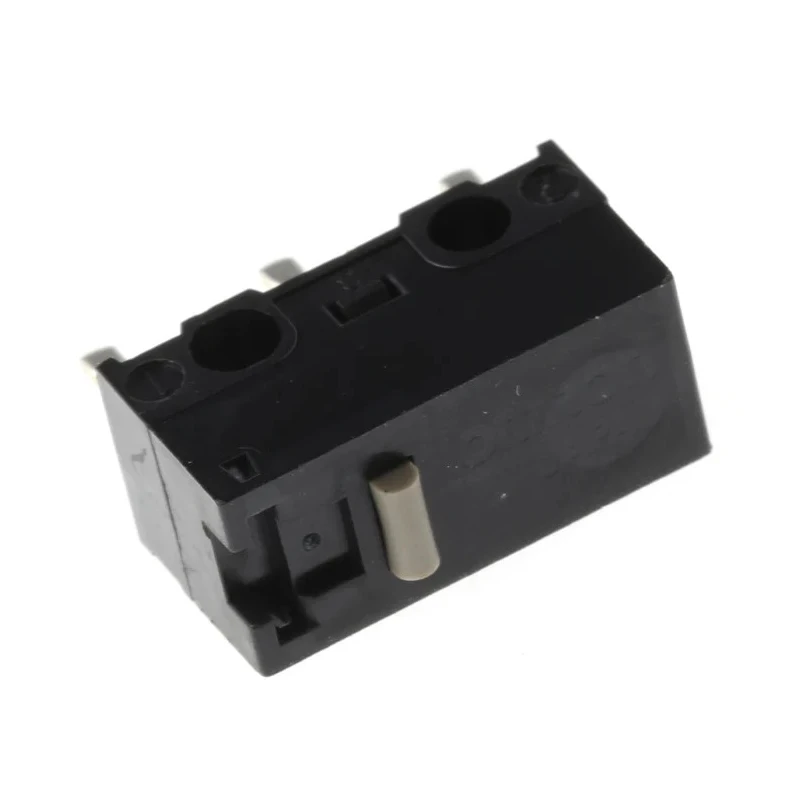

Omron Pin Plunger Subminiature Micro Switch, PCB Terminal, 3A, 30 V dc, SPDT, IP40 D2F
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | D2F |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Snap-In Latch |
| SPCO low profile button microswitch,3ABrand | Saia-Burgess |
Key Features
- Designed with a pin plunger actuator for precise switching action.
- Operational in a temperature range from -25°C to 65°C.
- Snap action with snap-in latch type ensures reliable mechanical performance.
- Electrical rating of 3A at 125Vac and 0.1A at 30Vdc with gold contacts.
- Mechanical life rated up to 1,000,000 operations for extended durability.
- RoHS compliant and approved by UL and CSA standards.
- Suitable for home appliances, audio equipment, and communication devices.
- Compact sub-miniature design ideal for PCB mounting applications.
Product Description
Omron D2F Pin Plunger Subminiature Micro Switch is a high-precision switch designed for use in various electronic and electrical applications. Featuring a pin plunger actuator and a PCB terminal type, it offers a contact current of 3A and a contact configuration of SPDT, making it suitable for switching low-voltage DC circuits with a maximum of 30 V dc. The device has an IP40 rating ensuring protection against solid objects larger than 1 mm.
This micro switch operates reliably within a temperature range of -25°C to 65°C, with a snap-in latch mechanism providing snap action for consistent performance. It includes silver contacts rated for 3A at 125 Vac and gold contacts rated for 0.1A at 30 V dc, combining flexibility and durability. The mechanical life expectancy of 1,000,000 operations assures longevity for industrial and commercial use.
Compliant with RoHS directives and certified by UL and CSA, this micro switch is ideal for integration into home appliances, audio devices, and communications equipment where precision and reliability are essential. Its ultra sub-miniature form factor facilitates easy PCB mounting, optimizing space in compact electronic assemblies.
Pin plunger actuator provides precise and reliable switching. PCB terminal type for straightforward mounting and connectivity. 3A contact current with SPDT contact configuration. Operational temperature range from -25°C to 65°C.
Snap-in latch type for dependable snap action. Contact rating: 3A @ 125Vac with silver contacts; 0.1A @ 30Vdc with gold contacts. Mechanical life of up to 1,000,000 operations. IP40 rated protection level. RoHS compliant with UL and CSA approvals.
This Omron micro switch is an excellent choice for industrial, automation, and consumer electronics applications requiring dependable, compact, and efficient switching components. Explore EnvMart's range of top-quality switches and electrical components to find compatible products and accessories.
Explore more products in our Micro Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch has a contact rating of 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
It operates reliably within a temperature range of -25°C to 65°C.
This model features a pin plunger actuator for precise switching action.
The micro switch has an IP40 rating, providing protection against solid objects larger than 1 mm.
It has a mechanical life expectancy of up to 1,000,000 operations.
The contact configuration is SPDT (Single Pole Double Throw).
This model features PCB terminals for straightforward mounting and connectivity.
It is RoHS compliant and approved by UL and CSA standards.
The operating force required for this micro switch is 1.47N.
It is suitable for use in home appliances, audio equipment, and communication devices.
The micro switch is manufactured in Japan.
This model belongs to the D2F series.
