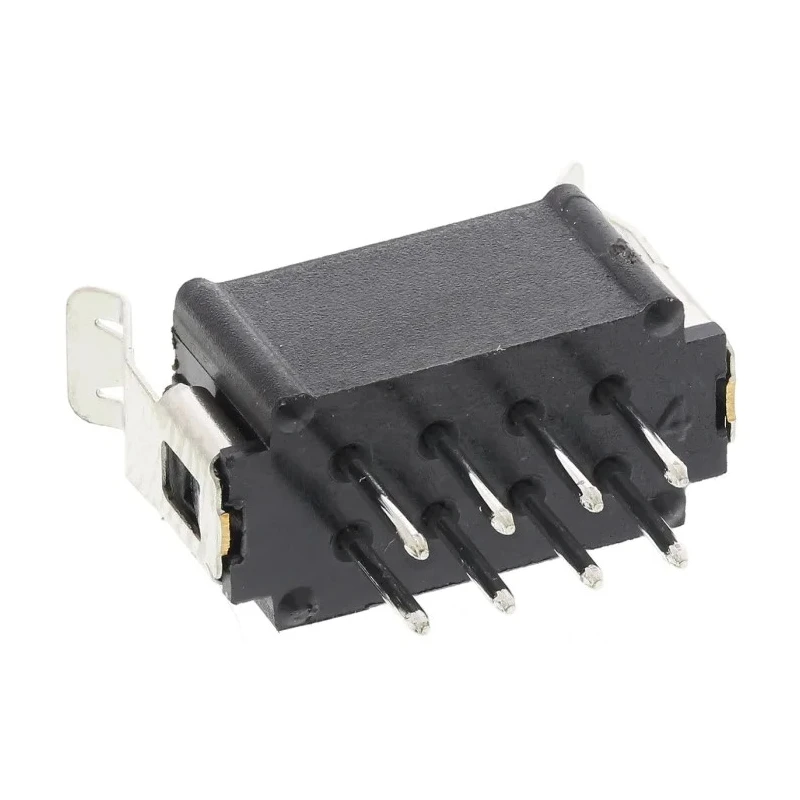

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header, 8 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-8530842

HARWIN M80-8530842 Datamate L-Tek Series Straight Through Hole PCB Header is an 8-contact, 2 mm pitch, 2-row shrouded connector designed for high-reliability applications in electronics.

This component is engineered using high-quality phosphor bronze contacts plated with gold to ensure excellent conductivity and corrosion resistance. The housing material is Polyphenylene Sulphide, offering durability and stability in harsh operating environments.

The connector is intended for through hole mounting on PCBs with a straight orientation, making it ideal for both board-to-board and wire-to-board connections. Its shrouded design ensures protection against accidental contact and helps maintain polarization for secure mating.

Rated for 3 amps current and operating voltage of up to 120V, this header performs efficiently across a broad temperature range from -55°C to 125°C. The tail pins are 3 mm in length, facilitating ease of soldering and mechanical strength.

The M80-8530842 model conforms to several industrial standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, ensuring it meets stringent quality and reliability requirements for critical applications.

These PCB headers are suitable for electronics used in industrial, manufacturing, telecommunications, and commercial sectors where vibration resistance and high mating cycle durability are necessary.

The PCB header features a shrouded design for protection and polarization. It supports a current rating of 3A and a voltage of 120V suitable for demanding electronic circuits. Constructed with phosphor bronze contact material and gold plating for corrosion resistance and reliable connectivity.

The housing is made of durable Polyphenylene Sulphide ensuring robustness in harsh environments. This connector mounts via through hole technique and has a straight orientation for easy PCB integration. Operating temperature ranges from -55°C to 125°C, suitable for industrial and commercial electronics.

Tail pin length is 3 mm ensuring proper soldering and mechanical stability. Complies with BS9525-F0033, MIL C 55302, and CEC 75101-008 standards, ensuring industrial-grade reliability. Discover a wide range of PCB Headers and connectors to meet your electronic design needs at EnvMart.
