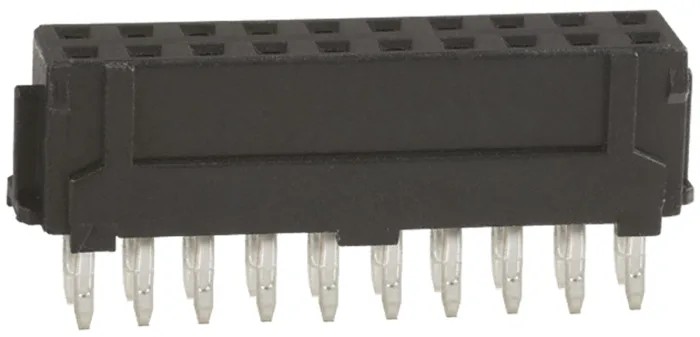

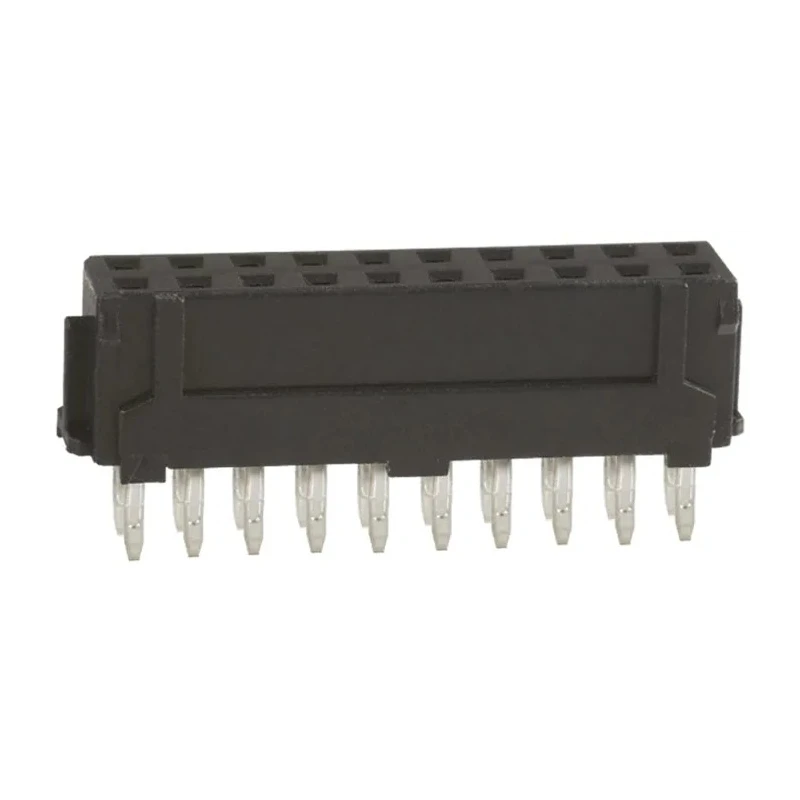

Hirose DF11 Series Straight Through Hole PCB Socket, 20-Contact, 2 Row, 2 mm Pitch, 250V, 2A, Polyamide Housing DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Connector System | Board-to-Board |
Key Features
- Compact design with 5 mm depth for space savings on PCBs.
- Double row contact configuration fits in the same space as single row connectors.
- Guide ribs prevent mating errors and twisting during insertion.
- Polyamide housing ensures durable and stable insulation.
- Solder termination type provides reliable electrical connection.
- Suitable for portable devices like digital cameras and car navigation.
- Operating temperature range from -30°C to 85°C for versatile applications.
- Made in Malaysia with brass contacts plated with tin for corrosion resistance.
Product Description
Hirose DF11 Series Straight Through Hole PCB Socket, model DF11, is a high-quality PCB connector featuring 20 contacts arranged in 2 rows with 2 mm pitch for board-to-board applications. It supports a voltage rating of 250V and can carry a current of up to 2A, making it suitable for various electronic device interconnections.
The socket's compact design with a depth of less than 5 mm enables a double row contact arrangement in the space generally required for a single row connector. This space-saving feature is ideal for compact electronic designs requiring multiple signal transmissions.
Constructed with a polyamide housing and brass contacts plated in tin, the DF11 socket ensures durability, good electrical conductivity, and resistance to corrosion. Its straight orientation and through hole mount type provide ease of installation and secure mechanical hold on PCBs.
The socket housing is designed with guide ribs to prevent incorrect insertion and twisting during mating, ensuring reliable connection integrity in demanding industrial and commercial applications such as portable devices, LCD displays, digital cameras, digital video recorders, car navigation systems, access control units, and measurement devices.
Compact 2 mm pitch double row design reduces PCB footprint. Guide ribs prevent mismating and twisting. Reliable brass contacts with tin plating for corrosion resistance. Polyamide housing for electrical insulation and robustness.
Solder termination provides strong and lasting connections. Operating temperature range from -30°C to 85°C for diverse environments. Board-to-board connector system optimized for space and performance.
Manufactured in Malaysia, the Hirose DF11 series connector delivers consistent quality for industrial, laboratory, consumer electronics, and commercial applications requiring dependable PCB connectivity. Explore more Hirose PCB connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DF11 PCB socket has a voltage rating of 250V.
It can carry a current of up to 2A.
The contact pitch is 2 mm.
This model features 20 contacts arranged in 2 rows.
The housing is made of polyamide, and the contacts are brass plated with tin for corrosion resistance.
It operates within a temperature range from -30°C to 85°C.
It uses solder termination for reliable electrical connections.
The DF11 socket is designed for through hole mounting.
It is suitable for use in portable devices, LCD displays, digital cameras, and car navigation systems.
The design includes guide ribs that prevent incorrect insertion and twisting during mating.
This connector is manufactured in Malaysia.
The socket has a straight orientation.
