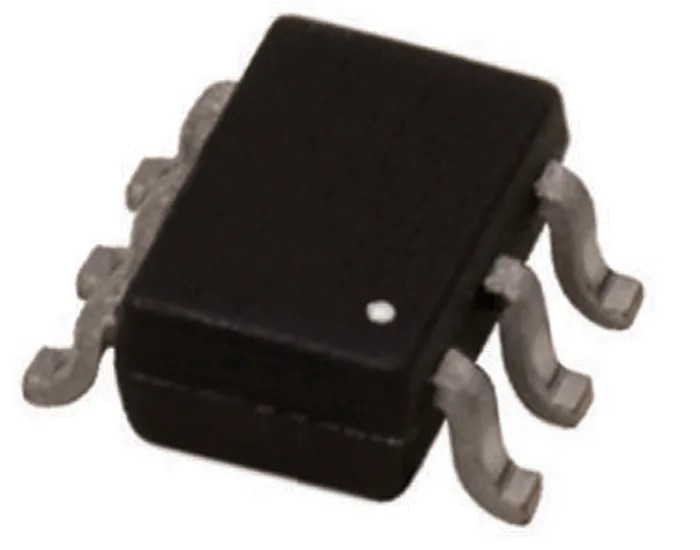

Nexperia 4-Element Uni-Directional TVS Diode 24 W, 6-Pin SOT-457 BZA456A,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 3.1mm |
| Model | BZA456A,115 |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | BZA |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-457 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 6 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 8V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Quad |
| Direction Type | Uni-Directional |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 24W |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Quad diode configuration providing four elements per chip for enhanced protection.
- Uni-directional mounting suited for surface mount applications.
- Peak pulse power dissipation of 24 watts ensuring robust transient handling.
- Maximum reverse stand-off voltage of 5.8 volts with clamping voltage of 8 volts.
- Temperature operation range from -65°C to 150°C supporting wide industrial environments.
- Compact 6-pin SOT-457 package with dimensions 3.1 mm length, 1.7 mm width, and 1 mm height.
- ESD protection compliant with automotive standard AEC-Q101.
- Maximum peak pulse current rating of 3 amperes for high surge energy absorption.
Product Description
The Nexperia BZA456A,115 is a high-performance 4-element uni-directional Transient Voltage Suppressor (TVS) diode designed for protecting sensitive electronic components from voltage spikes and electrostatic discharges. With a robust peak pulse power dissipation capability of 24W, this surface-mount device in a compact 6-pin SOT-457 package is ideal for durable industrial and automotive applications.
Featuring quad diode configuration, the device integrates four TVS elements per chip to provide effective clamping voltage at 8V and a maximum reverse stand-off voltage of 5.8V. It offers high reliability with an operating temperature range spanning -65°C to 150°C, suitable for demanding environments. The maximum peak pulse current rating is 3A, providing substantial transient energy absorption capacity.
Nexperia’s BZA series devices meet the rigorous automotive standard AEC-Q101, making this diode suitable for automotive electronics, industrial power systems, telecommunications, and consumer electronics requiring ESD protection and transient voltage suppression.
The compact dimensions of 3.1 mm (length) x 1.7 mm (width) x 1 mm (height) enable space-efficient PCB layouts. The device’s surface mount mount type facilitates automated assembly processes.
Quad diode configuration providing four elements per chip for reliable protection. Uni-directional transient voltage suppression with a 24W peak pulse power dissipation rating. Wide operating temperature range from -65°C to 150°C accommodates harsh conditions.
Compliant with AEC-Q101 automotive standard for enhanced quality assurance. Compact 6-pin SOT-457 surface mount package for easy integration. Peak pulse current rating of 3A handling substantial transient events. Low maximum reverse leakage current of 2 μA ensuring minimal power loss.
These features make the Nexperia BZA456A,115 an excellent choice for transient voltage and ESD protection in industrial, automotive, telecommunications, and consumer electronic applications. EnvMart offers this TVS Diode as part of its semiconductor components catalog for reliable electronic circuit protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Nexperia BZA456A,115 is 24 watts, ensuring robust transient handling capabilities.
The maximum reverse stand-off voltage for this diode is 5.8 volts, allowing it to withstand voltage spikes effectively.
The clamping voltage of this TVS diode is 8 volts, providing effective protection against transient voltage spikes.
The maximum peak pulse current rating for the Nexperia BZA456A,115 is 3 amperes, which allows for substantial transient energy absorption.
This model operates within a temperature range of -65°C to 150°C, making it suitable for various industrial environments.
The package type of this diode is SOT-457, which is a compact surface mount package.
The BZA456A,115 features a quad diode configuration, providing four elements per chip for enhanced protection.
The maximum reverse leakage current for this TVS diode is 2 μA, ensuring minimal power loss during operation.
Yes, this model is compliant with the AEC-Q101 automotive standard, ensuring it meets rigorous quality requirements for automotive applications.
The dimensions of the Nexperia BZA456A,115 are 1 mm in height, 3.1 mm in length, and 1.7 mm in width.
This model supports surface mounting, facilitating automated assembly processes.
This TVS diode is suitable for applications in automotive electronics, industrial power systems, telecommunications, and consumer electronics requiring ESD protection and transient voltage suppression.
