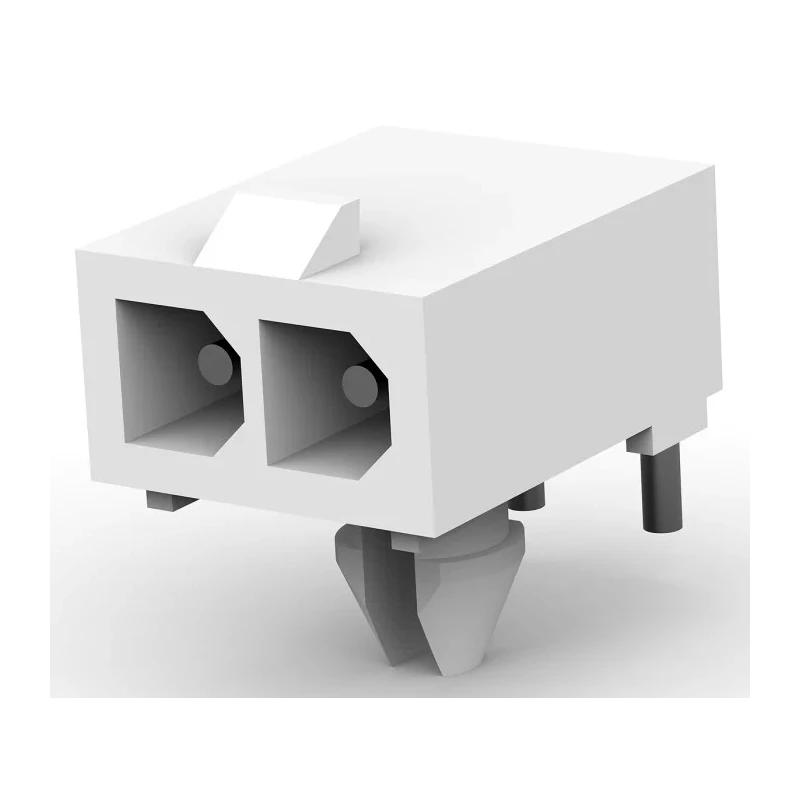

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 2 Contacts 4.14 mm Pitch 1-770966-0

TE Connectivity 1-770966-0 Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header is a high-quality connector designed for durable and secure wire-to-board connections in industrial, electronic, and manufacturing applications. Featuring a 2-contact configuration and a 4.14 mm pitch, it is engineered to handle a maximum current of 9.5A and voltage up to 600V, supporting reliable power transmission.

The connector housing is fabricated from UL94V-0 rated nylon material, offering flame retardant properties and a shrouded design that incorporates a positive locking latch mechanism. This ensures the connector remains securely mated during mechanical stress or vibration and includes board locks that assist with PCB retention during assembly.

Contacts are made of brass with tin plating, providing excellent electrical conductivity and corrosion resistance. The termination type is solder, and the tail pin length is precisely 3.69 mm for standard through-hole PCB mounting.

Operating temperature range spans from -55°C to 105°C, allowing operation in harsh environments common in industrial, commercial, and HVAC equipment circuits. This connector series is widely used in electrical assemblies where quality and reliability are paramount.

With a right angle orientation and single row layout, it helps save PCB space while maintaining efficient wire routing and connection integrity. No special industry certifications or standards approvals are listed, but the robust design suits multiple sectors, including industrial control systems, manufacturing machinery, and laboratory instrumentation.

This PCB header supports a current rating of 9.5A and voltage rating of 600V. White UL94V-0 nylon shrouded housing ensures secure mating with latch mechanism. Male brass contacts plated with tin provide reliable conductivity and solder termination.

Temperature range from -55°C to 105°C supports harsh environment use. Tail pin length of 3.69 mm facilitates through hole PCB mounting. Wire-to-board connector system with right angle orientation and single row layout. No specific certification or standards approvals indicated.

Ideal for industrial electronic assemblies requiring secure and reliable connections. Compact design with 4.14 mm pitch for space-efficient PCB layouts.

Environmentally durable and designed by TE Connectivity, this MATE-N-LOK Series PCB Header is a dependable component for electrical and electronic device manufacturing. Browse more high-quality connectors and related products at EnvMart for your industrial, manufacturing, and laboratory needs.
