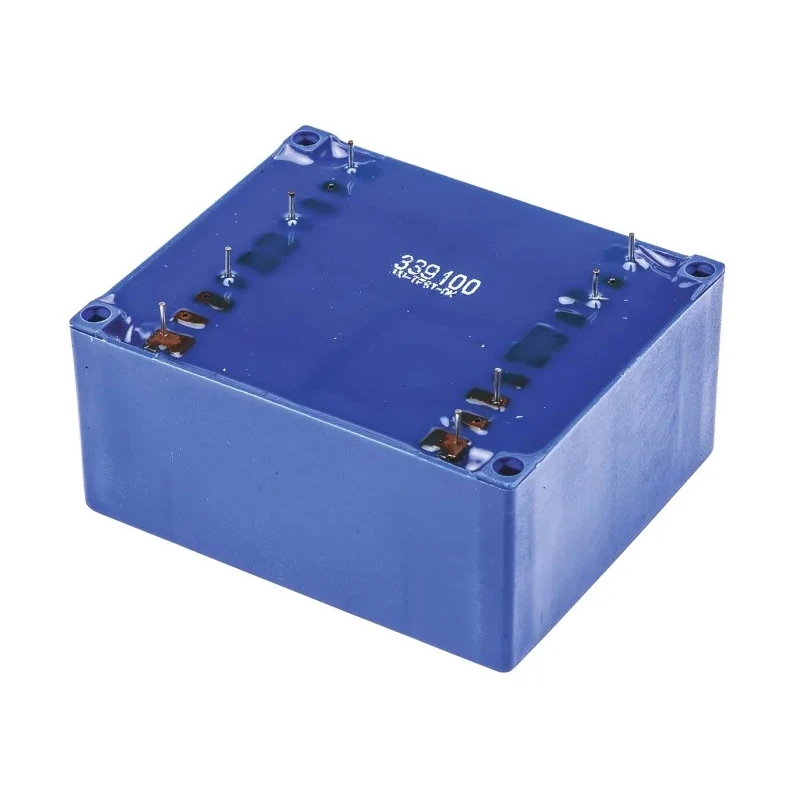

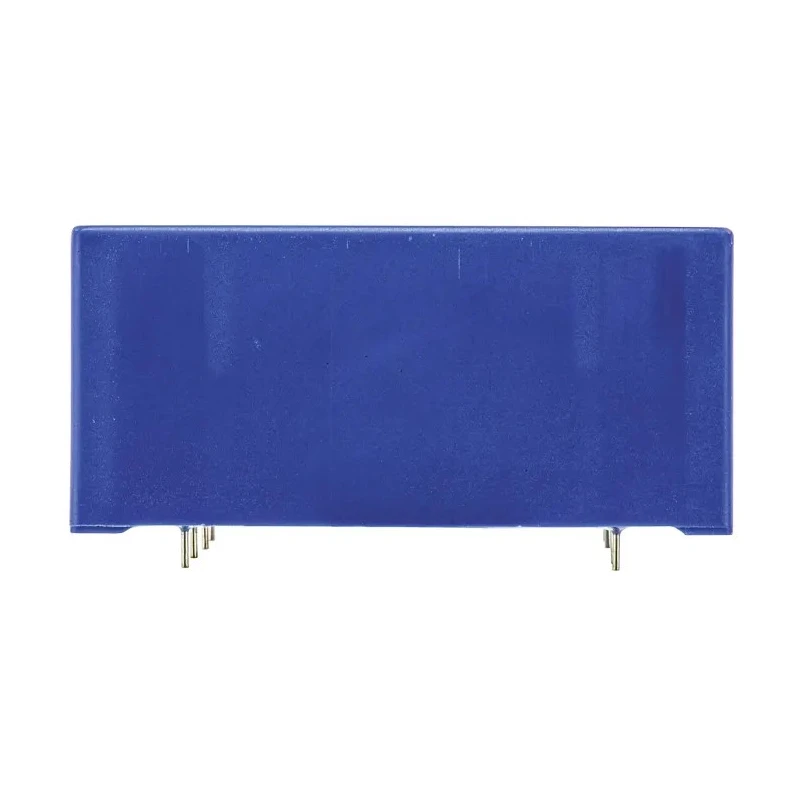

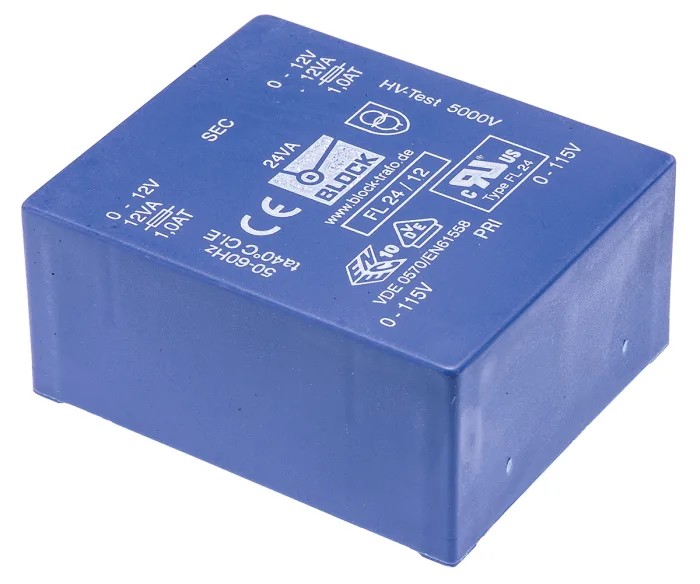

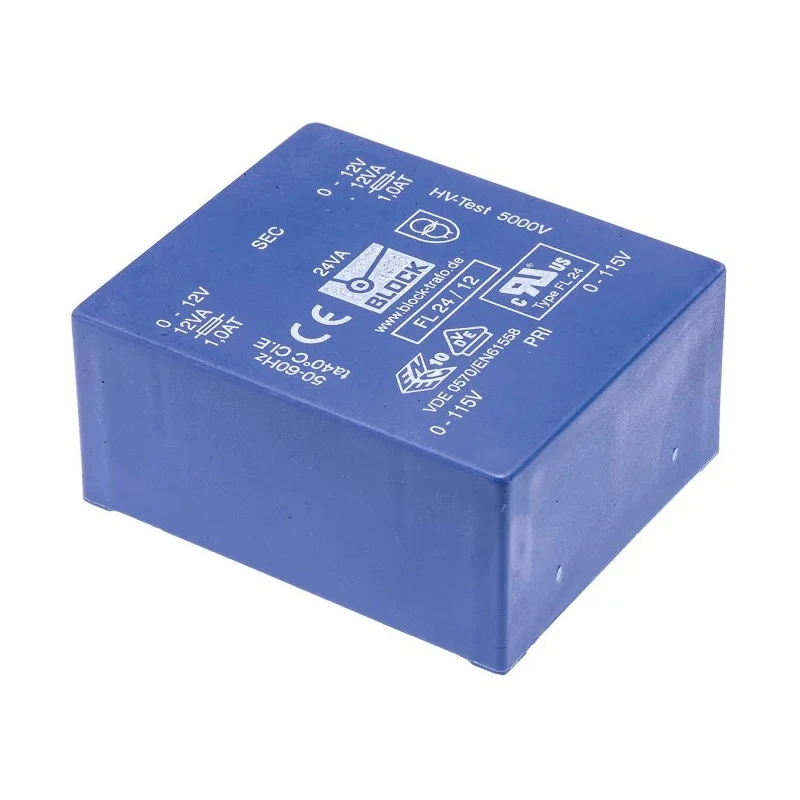

Block PCB Transformer 12 V ac Dual Secondary, Dual Primary Through Hole, 24 VA, UL, VDE FL 24/12

Block FL 24/12 PCB Transformer is a reliable through-hole mount transformer with dual secondary and dual primary windings delivering 24 VA of power at 12 V ac output voltage. Designed for PCB mounting, this transformer features a low profile, compact design suitable for a wide range of electronic and electrical applications.

The transformer’s twin 115 V a.c. primary windings allow series or parallel connection to support 115 V or 230 V ac input voltage, operating within a frequency range of 50 Hz to 60 Hz. It is encapsulated in vacuum epoxy resin moulding rated UL94-V0 for enhanced safety and durability. Construction includes double section glass fibre reinforced polyamide bobbins which contribute to its mechanical strength and low inter-winding capacitance, reducing noise and interference.

Certified to UL and VDE standards, this transformer ensures compliance with international quality and safety protocols, making it ideal for use in industrial equipment, power supplies, and other electronic devices where efficiency and reliability are critical. It operates efficiently at 77% conversion rate and is continuously tested for electrical and flash safety.

The compact dimensions of 68 mm length, 31.4 mm width, and 57 mm depth facilitate convenient PCB integration, while extra fixing holes provide secure mounting options. With an operating temperature range from -40°C to +40°C, it performs reliably in a variety of environmental conditions.

Its manufacturing origin is Germany, underscoring premium quality and precision engineering. Suitable for industrial, laboratory, and commercial applications requiring stable and efficient power transformation within low voltage electronic circuits.

Equipped with dual secondary and dual primary windings allowing series or parallel connection. Operates with a primary voltage of 115 V or 230 V ac at 50 to 60 Hz frequency. Low profile, compact design with vacuum epoxy resin moulding complying with UL94-V0 flame rating.

Constructed with double section glass fibre reinforced polyamide bobbins for durability. Certified to UL and VDE standards ensuring quality and safety compliance. Efficient transformer with 77% efficiency and low inter-winding capacitance.

Designed for PCB mounting with extra fixing holes for secure board installation. Dimensions: 68 x 31.4 x 57 mm. Operating temperature range: -40°C to +40°C. Manufactured in Germany. Explore more high-quality PCB Transformers and electrical components on EnvMart for your engineering and industrial needs.
