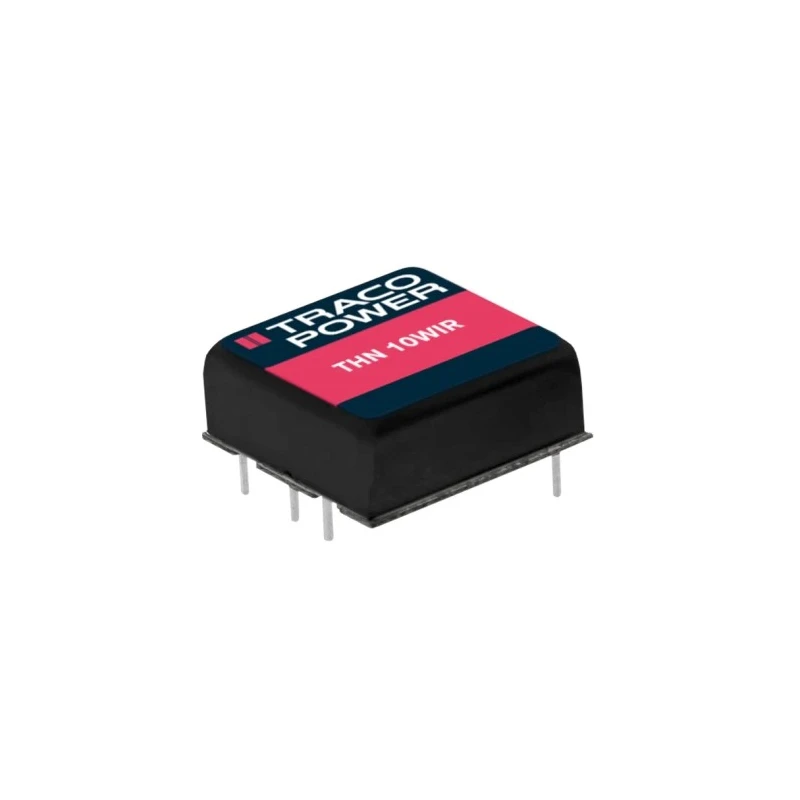

TRACOPOWER 12V 830 mA DC/DC Converter, 160V Max Input, 36V Min Input, 10W Power Through Hole THN 10-7212WIR

TRACOPOWER THN 10-7212WIR DC/DC Converter is engineered to deliver stable 12V output voltage at 830 mA current with a maximum input of 160V and minimum input of 36V. This 10W through-hole mounted converter is perfect for industrial, electronic component, power supply, and transformer applications requiring reliable voltage conversion.

Constructed in a compact DIP package of dimensions 25.4mm (length) x 25.4mm (width) x 9.9mm (depth), it is suitable for PCB mounting with six pins and a through-hole mount type. Its metal shielded enclosure provides excellent protection against electromagnetic interference, vibration, and thermal shocks.

The converter efficiently operates within an ambient temperature range from -40°C to 80°C, maintaining high performance and up to 89% efficiency. It offers a robust isolation voltage of 3000 VDC between input and output ensuring safety and noise reduction.

Advanced features include remote On/Off functionality and adjustable output voltage trim for fine tuning applications. The device is designed to withstand overload, overvoltage, and short circuit conditions to protect sensitive circuitry.

Operates across a wide temperature range from -40°C to 80°C without derating. High efficiency of up to 89% ensures minimal energy loss. Features 3000 VDC input/output isolation and robust electromagnetic interference resistance.

Includes remote On/Off and trim functions for flexible control. Compact DIP package with six pins and through-hole mounting for easy PCB assembly. Designed for high reliability in harsh environments including industrial and electronics applications.

Provides protection against overload, overvoltage, and short circuit conditions. MTBF rating of approximately 2,334,000 hours demonstrates durable performance.

This DC/DC converter is ideal for use in industrial automation, telecommunications, transportation, and power management systems requiring efficient and reliable voltage conversion. Manufactured in Taiwan, the THN 10-7212WIR exemplifies quality and durability in harsh operating conditions.
