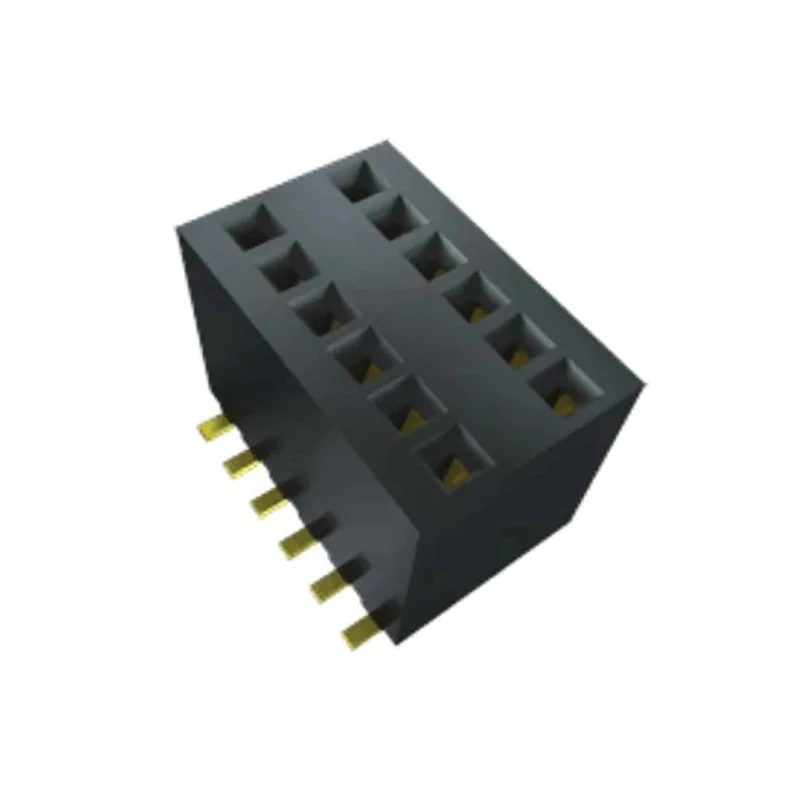

Samtec RSM Series Straight Surface PCB Socket 24-Contact 1 Row 1.27 mm Pitch Solder RSM-112-02-L-S

Name: Samtec RSM Series Straight Surface PCB Socket 24-Contact 1 Row 1.27 mm Pitch Solder RSM-112-02-L-S
Brand: Samtec
SKU: 163332
Price: 3.96 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	290V
Brand	Samtec
Orientation	Straight
Current	3.8A
Model	RSM-112-02-L-S
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	RSM
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Micro Socket
Minimum Operating Temperature	-55°C
Number of Rows	1
Plating	Au or Sn over 50 μ" (1.27 μm) Ni
Pitch	1.27mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	24
Connector System	Board-to-Board

Key Features

Constructed with liquid crystal polymer housing for high durability.
Phosphor bronze contact material plated with gold ensuring excellent conductivity.
Supports a current rating of 3.8 A per pin at 290 V.
Designed for straight orientation and board-to-board connector system.
Operates reliably between -55°C to 125°C temperature range.
Termination type is solder, complying with RoHS environmental standards.
Suitable for micro socket applications requiring precise PCB connections.

Product Description

Samtec RSM-112-02-L-S is a reliable and high-performance straight surface PCB socket designed for electronic and electrical applications requiring precise and durable connections. This micro socket features 24 contacts aligned in a single row with a standard pitch of 1.27 mm suitable for surface mount technology (SMT).

The housing is made of black liquid crystal polymer, known for its excellent insulating properties and mechanical strength, while the contact parts consist of phosphor bronze plated with gold for optimal conductivity and corrosion resistance. The socket supports a rated current of 3.8 A per pin and a maximum voltage of 290 V, making it suitable for demanding electrical circuits.

Its design includes solder termination type and a straight orientation to facilitate board-to-board connection systems. The operational temperature range from -55°C up to 125°C allows for versatile use in various industrial, manufacturing, and electronic assembly applications.

This PCB Socket complies with RoHS standards, assuring environmentally friendly and safe use in contemporary electronics manufacturing. It is ideal for precision surface mount applications requiring high-quality micro sockets.

Constructed with liquid crystal polymer housing for high durability. Phosphor bronze contact material plated with gold ensuring excellent conductivity. Supports a current rating of 3.8 A per pin at 290 V. Designed for straight orientation and board-to-board connector system.

Operates reliably between -55°C to 125°C temperature range. Termination type is solder, complying with RoHS environmental standards. Suitable for micro socket applications requiring precise PCB connections.

Used extensively in electronics manufacturing, laboratory equipment, and industrial assembly processes, this Samtec RSM series socket provides a dependable interconnection solution. Browse EnvMart for more Samtec connectors and PCB components to complete your electronic assemblies.
