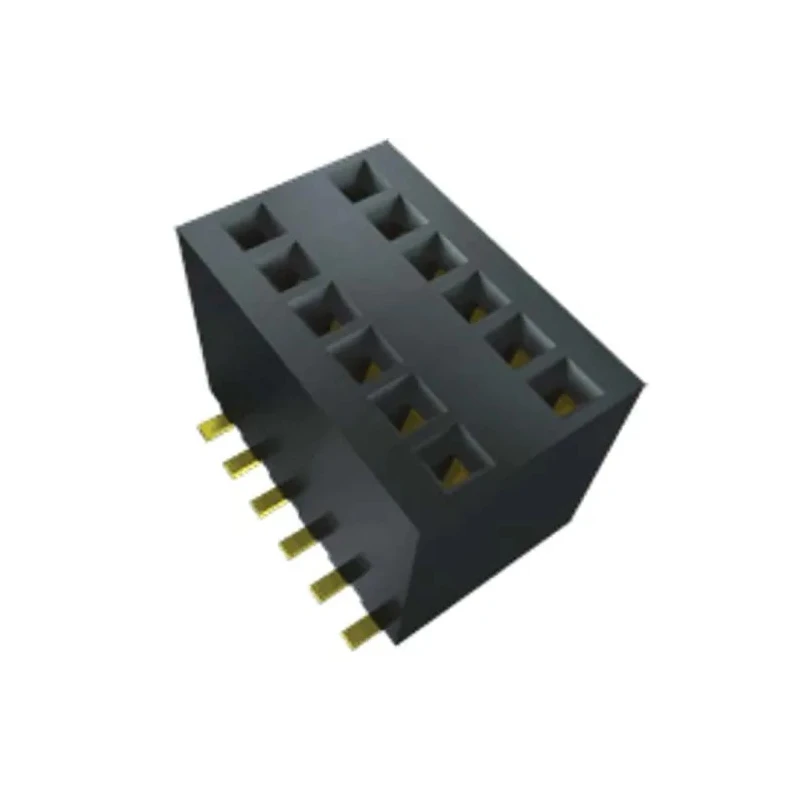

Samtec RSM Series Straight Surface PCB Socket 20-Contact 2 Row 1.27 mm Pitch Solder RSM-110-02-L-D-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 290V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | RSM-110-02-L-D-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | RSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Micro Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Plating | Au or Sn over 50 μ" (1.27 μm) Ni |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Manufactured with black liquid crystal polymer housing material for durability.
- Phosphor bronze contacts with gold plating provide excellent conductivity.
- Rated current is 3.8 A with a voltage rating of 290 V.
- Designed for surface mount with straight orientation for easy PCB integration.
- Operating temperature ranges from -55°C to 125°C for versatile environments.
- Pitch between rows is 2.54 mm supporting compact design.
- Connector system is board-to-board ensuring high signal integrity.
- Termination type is solder for secure attachment.
Product Description
Samtec RSM-110-02-L-D-LC is a straight surface mount PCB Socket designed for electronic component connections where reliability and precision are critical. This 20-contact, 2-row micro socket features a 1.27 mm pole pitch enabling dense placement on printed circuit boards.
The connector is housed in high-performance black liquid crystal polymer, ensuring mechanical stability and resistance to thermal stress in operating conditions between -55°C and 125°C. Each contact is made of phosphor bronze for excellent mechanical strength and conductivity, and plated with gold over nickel to prevent corrosion and ensure consistent signal transmission.
This surface mount socket supports up to 3.8 A current and 290 V voltage, making it suitable for various industrial electronic applications such as instrumentation, testing devices, and communication equipment. Its board-to-board connector system and solder termination type facilitate straightforward installation and maintenance.
The pitch between rows is 2.54 mm, compatible with standard PCB layouts while maintaining compactness. The device complies with RoHS standards, confirming its environmental safety.
Black liquid crystal polymer housing for durability and heat resistance. Gold plated phosphor bronze contacts to ensure electrical performance. Rated for 3.8 A current and 290 V voltage. Straight orientation surface mount design enables easy PCB integration.
Operation from -55°C to 125°C suits harsh industrial conditions. Two rows with 20 contacts total supports multi-signal applications. Board-to-board connector system ensures reliable connections in compact spaces. Solder termination type guarantees robust mounting on circuit boards.
RoHS compliant manufacturing adheres to environmental regulations. Used extensively in electronics manufacturing, industrial automation, and HVAC control systems. Explore more high-quality electronic components and connectors on EnvMart to support your industrial and commercial projects with confidence and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 3.8 A and a voltage of 290 V.
It operates within a temperature range of -55°C to 125°C, making it suitable for various environments.
The termination type for this socket is solder, ensuring a secure attachment to the PCB.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating for conductivity.
The pitch between the rows is 2.54 mm, which supports compact PCB designs.
This model features a total of 20 contacts arranged in 2 rows.
It utilizes a board-to-board connector system, ensuring reliable connections in compact spaces.
Yes, it is RoHS compliant, adhering to environmental safety regulations.
It is suitable for various industrial electronic applications such as instrumentation, testing devices, and communication equipment.
The orientation of this socket is straight, designed for surface mount integration.
The gold plating on the contacts helps prevent corrosion and ensures consistent signal transmission.
The country of origin for this product is India.
