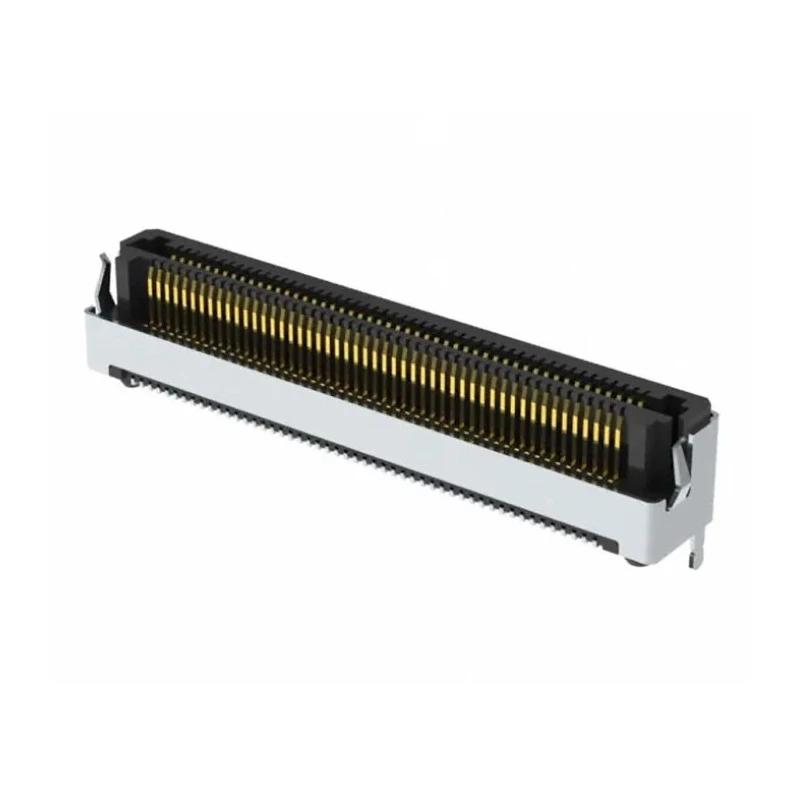

Samtec LSHM Series Straight Surface PCB Header, 100 Contact(s), 0.5 mm Pitch, 1 Row, Shrouded LSHM-150-04.0-L-DV-A-N-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec LSHM Series Straight Surface PCB Header, 100 Contact(s), 0.5 mm Pitch, 1 Row, Shrouded LSHM-150-04.0-L-DV-A-N-TR

Name: Samtec LSHM Series Straight Surface PCB Header, 100 Contact(s), 0.5 mm Pitch, 1 Row, Shrouded LSHM-150-04.0-L-DV-A-N-TR
Brand: Samtec
SKU: 163229
Price: 11.77 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	160, 226V ac
Brand	Samtec
Orientation	Straight
Current	2A
Model	LSHM-150-04.0-L-DV-A-N-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	LSHM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Utilizes Razor Beam fine pitch contact system for reliable connectivity.
Supports board-to-board connector system with surface mounting.
Housing made of durable Liquid Crystal Polymer ensuring thermal stability.
Contact material is Phosphor Bronze plated with Gold for excellent conductivity.
Rated for current up to 2A and voltage up to 226V AC.
Operating temperature range from -55°C to 125°C.
Comes with shrouded header for added protection and alignment.
Termination type is solder for secure PCB attachment.

Product Description

Samtec LSHM-150-04.0-L-DV-A-N-TR is a premium PCB Header designed for high-density, high-speed board-to-board connection applications. Featuring 100 contacts arranged in a single straight row and a fine 0.5 mm pitch, this header is built to ensure signal integrity and durability.

The connector housing is constructed from Liquid Crystal Polymer, which provides excellent mechanical strength and thermal resistance, suitable for demanding industrial and electronic manufacturing environments. Contacts are made from Phosphor Bronze with gold plating, enhancing electrical performance and corrosion resistance.

This shrouded header facilitates secure mating and protection against misalignment, ideal for compact PCB layouts requiring precise connection interfaces. The termination type is solder, ensuring firm and reliable attachment to circuit boards used in electronic components manufacturing, telecommunications, and industrial control systems.

Rated for current up to 2A and voltage up to 226V AC, this PCB header supports applications operating within -55°C to 125°C temperature ranges. Its Razor Beam fine pitch contact system is engineered for signal speeds up to 23 Gbps per contact, satisfying requirements for high-speed data and power transmission.

This connector is suitable for use in electronics, telecommunications, industrial automation, and manufacturing plants where robust and precise electronic interconnections are needed.

Utilizes Razor Beam fine pitch contact system for reliable connectivity. Supports board-to-board connector system with surface mounting. Housing made of durable Liquid Crystal Polymer ensuring thermal stability. Contact material is Phosphor Bronze plated with Gold for excellent conductivity.

Rated for current up to 2A and voltage up to 226V AC. Operating temperature range from -55°C to 125°C. Comes with shrouded header for added protection and alignment. Termination type is solder for secure PCB attachment. Compatible with high-speed data transfer rated at 23 Gbps per contact.

Explore Samtec PCB Headers for trusted high-quality connector solutions at EnvMart.
