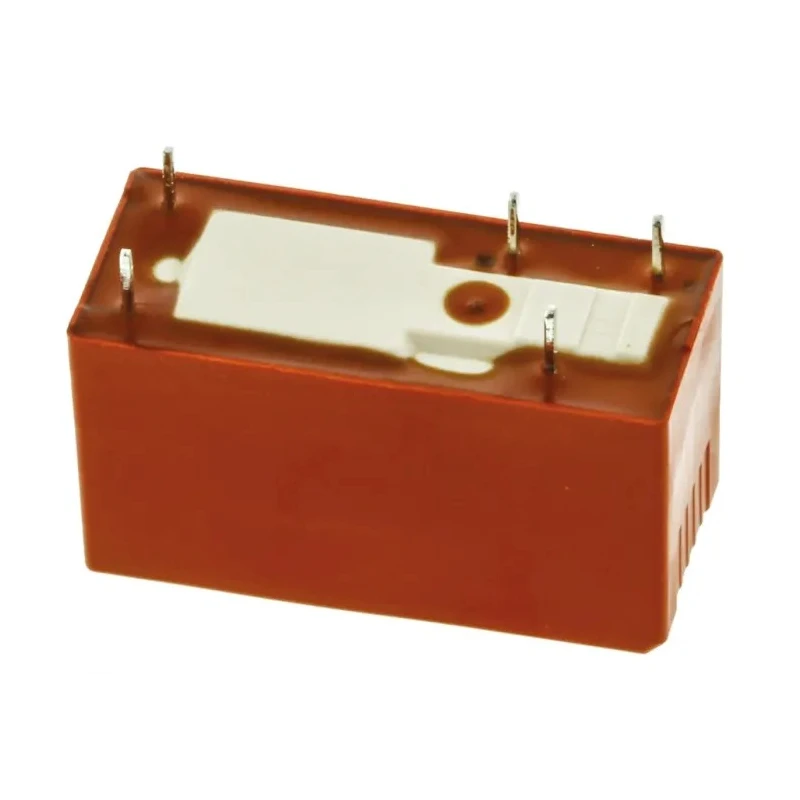

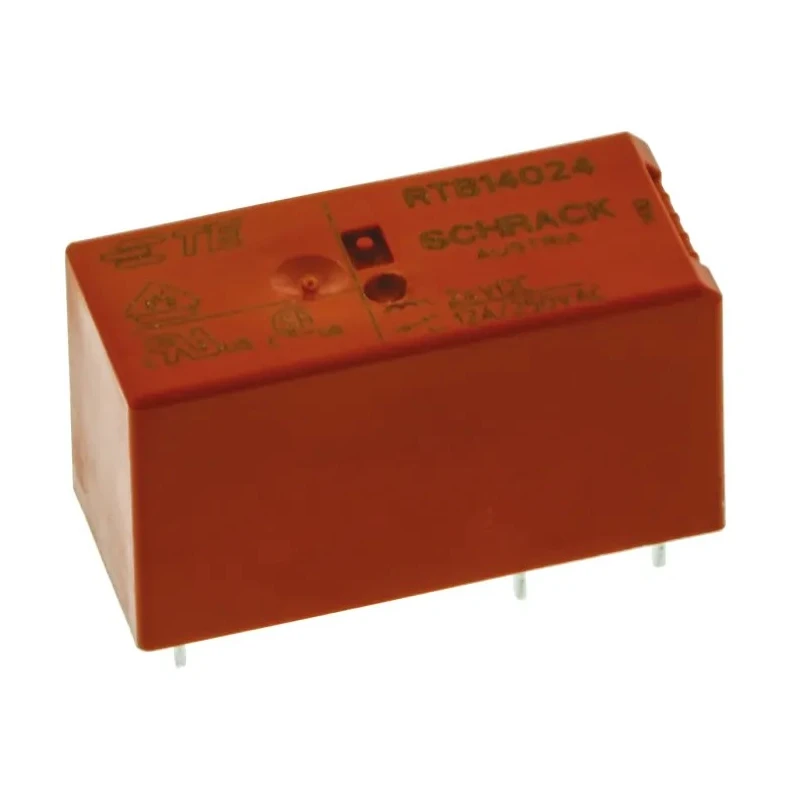

TE Connectivity PCB Power Relay with 24V dc Coil, 12A Switching Current, SPDT Contact Configuration RTB14024

TE Connectivity RTB14024 PCB Power Relay is a high-performance power relay designed with a 24V dc coil and capable of handling a switching current of 12A in a Single Pole Double Throw (SPDT) configuration. This relay belongs to the RT1 series, providing robust mechanical and electrical durability suitable for industrial, automation, and security system applications. Its compact dimensions of 29mm length by 15.7mm height and 12.7mm width make it ideal for printed circuit board (PCB) mounting.

The relay operates effectively within a temperature range from -40°C to 85°C, maintaining reliable switching at up to 400V AC and a power capacity of 3kVA. It features a coil resistance of 1.4kΩ and low coil power consumption of 400mW, ensuring energy efficiency. The contact material comprises a silver nickel alloy that offers excellent conductivity and resistance to wear over long operational cycles.

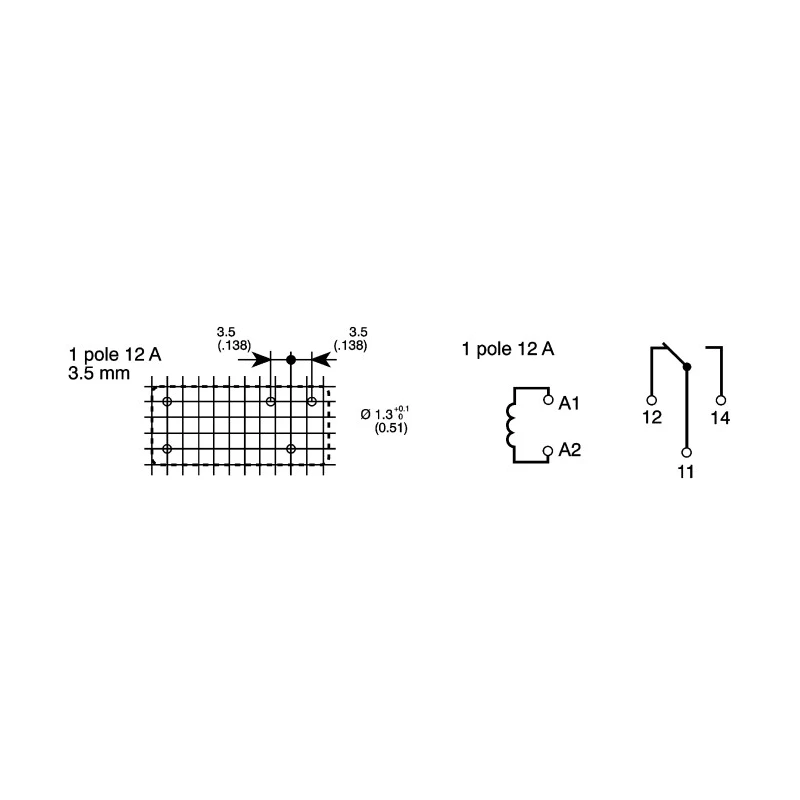

Its solder terminal type facilitates secure connections on PCB assemblies, and the RT1 series design includes 3.5mm flux proof pinning to protect against environmental contaminants. Compliance with cULus and VDE standards underlines its suitability for stringent electrical safety requirements.

This relay is applied widely in interface and automation systems, domestic equipment, security lighting, and heating control due to its dependable performance and certifications. Its manufacturing location in Austria assures consistent quality and adherence to international standards.

The relay is engineered for industrial and automation interface applications requiring reliable switching performance. Compact form factor and robust construction support installation in demanding domestic and commercial electronic equipment.

Energy-efficient coil design reduces power consumption and enhances circuit reliability. Compliant with internationally recognized safety and quality standards for secure integration. Silver nickel alloy contacts provide long-lasting electrical contact performance under frequent switching.

Its flux proof pinning minimizes the risk of contamination and failure within PCB environments. Operating temperature range supports usage in harsh climatic conditions. Manufactured in Austria, ensuring high manufacturing and quality control standards.
